VERIFIED PART INFORMATION

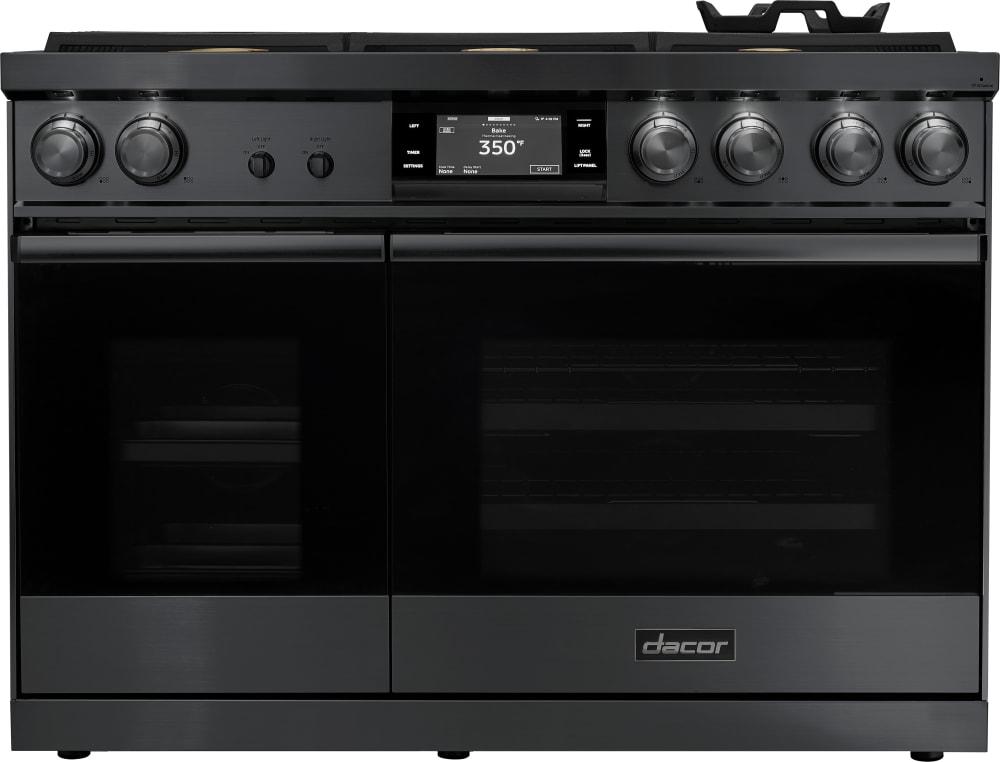

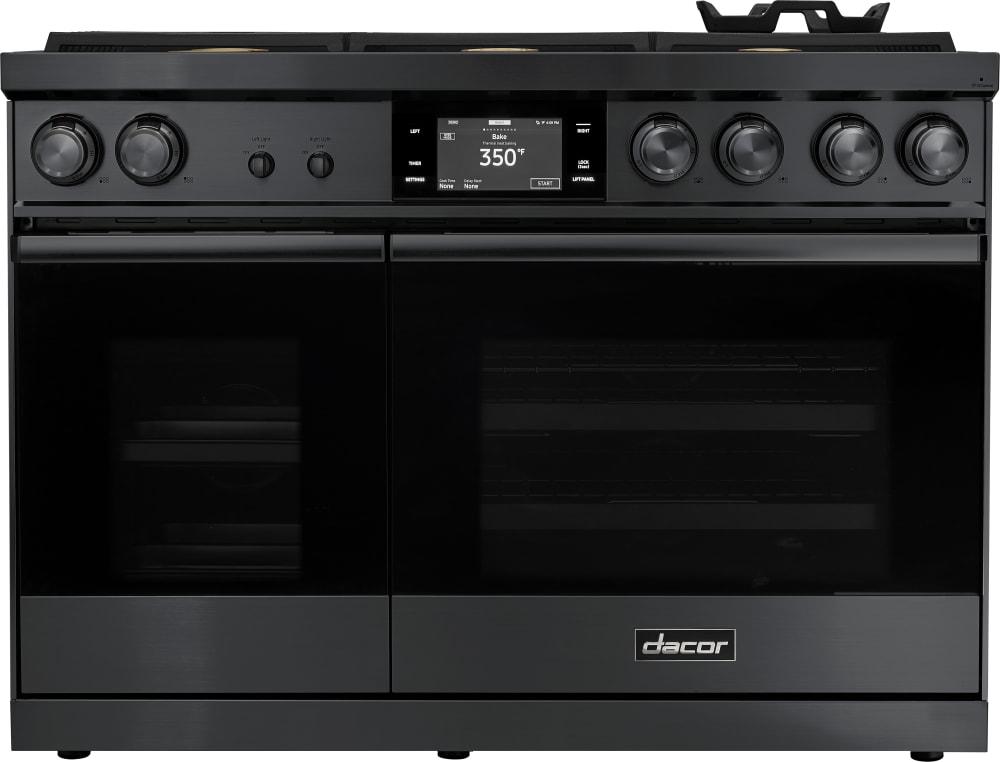

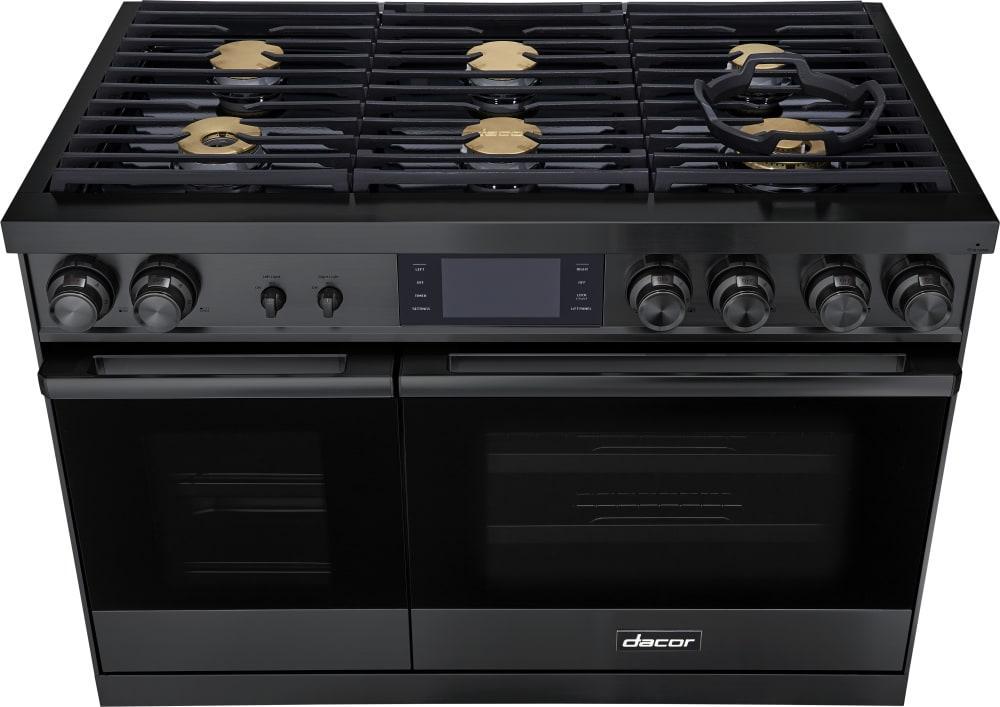

Dacor 48-Inch Dual-Fuel Steam Range, Graphite Stainless, Liquid Propane DOP48M86DPM
48-inch freestanding dual-fuel steam range with six sealed gas burners, a 4.8 cu. ft. large oven, and a 1.8 cu. ft. small oven.
🇺🇸 Matching U.S. Part Number: DOP48M86DPM/DA
Part DOP48M86DPMU.S. DOP48M86DPM/DADacor
48-inch freestanding dual-fuel steam range with six sealed gas burners, a 4.8 cu. ft. large oven, and a 1.8 cu. ft. small oven.
Is This the Right Part?
Part NumberDOP48M86DPM
ManufacturerDacor
Appliance TypeRange
Part Type48-Inch Dual-Fuel Steam Range, Graphite Stainless, Liquid Propane
Check Before Replacing
- Verify the appliance data label shows DOP48M86DPM or the documented U.S. configuration DOP48M86DPM/DA.
- Confirm the installation has compatible liquid-propane gas service and a 208/240 V, 60 Hz, 50 A electrical supply.
- For installation or service identification, check the model/serial label on the left door trim of the small oven.
Pro Tip
The exact U.S. configuration is documented with the suffix /DA; verify the complete model number on the appliance label before ordering parts or service.
Part Details
Part NumberDOP48M86DPM
Part Type48-Inch Dual-Fuel Steam Range, Graphite Stainless, Liquid Propane
ManufacturerDacor
Appliance TypeRange
Primary FunctionProvides gas cooktop cooking and electric double-oven cooking with convection and Real Steam functions.
Cross ReferencesDOP48M86DPM/DA
Key Features
- 48-inch width; approximately 47 7/8 in. wide, 36 1/8 in. high, and 27 1/2 in. deep
- Dual-fuel design: liquid propane cooktop with electric ovens

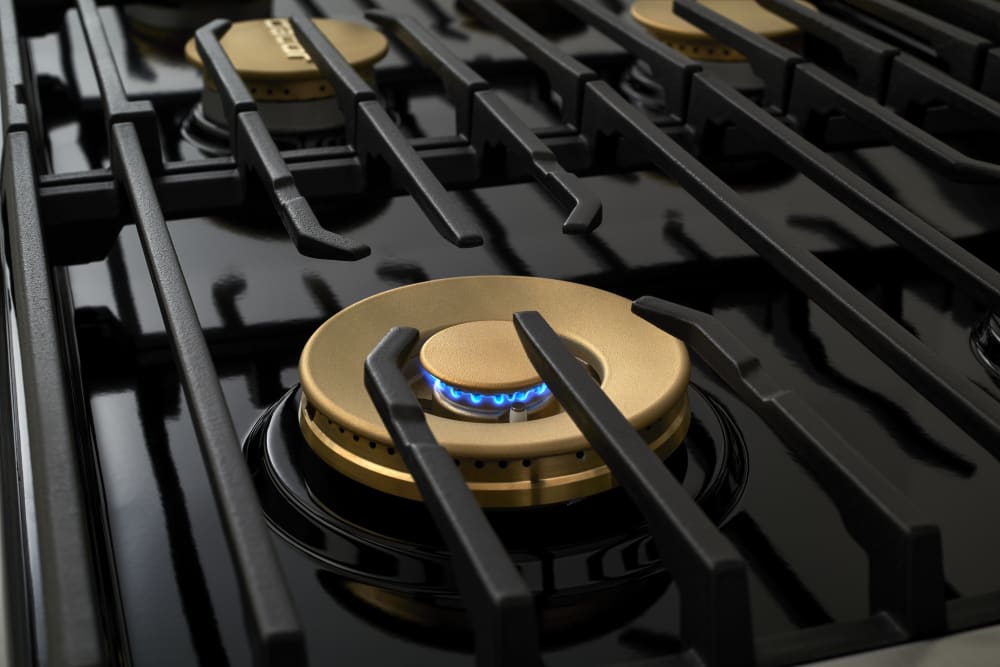

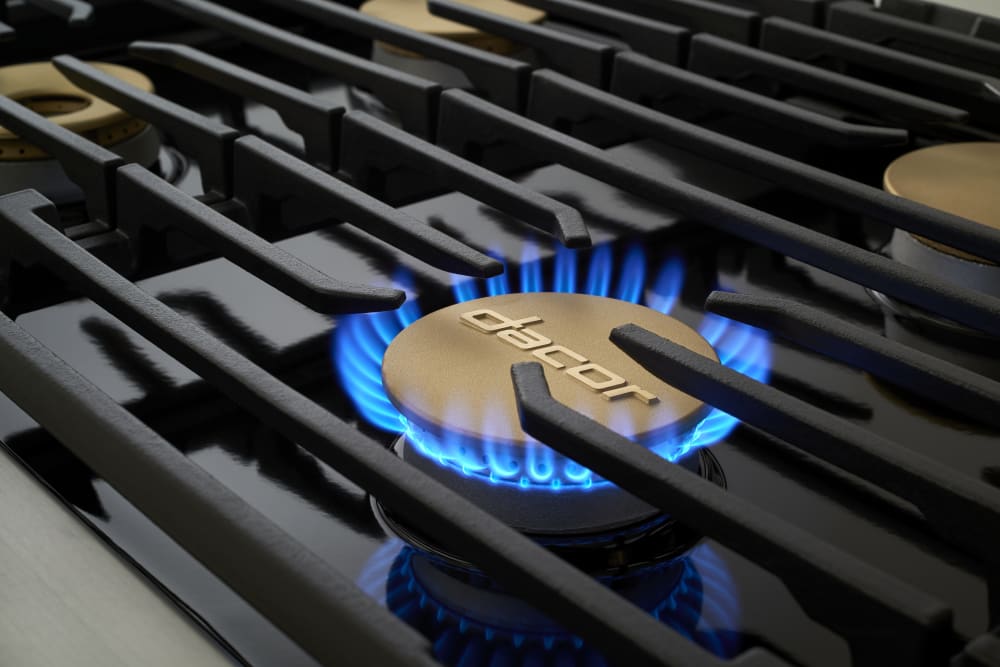

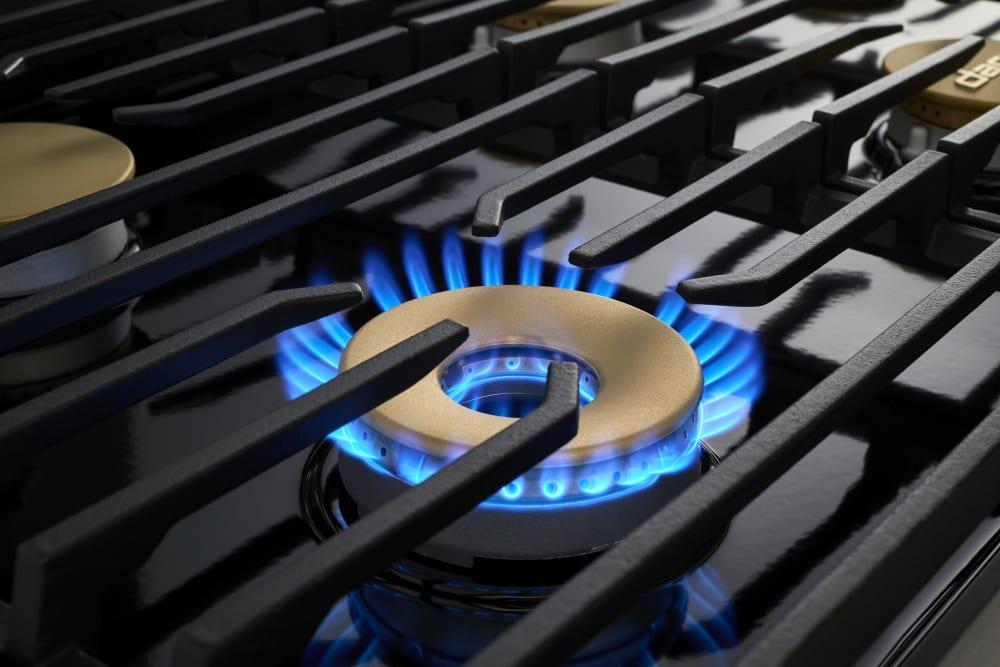

- Six sealed burners rated 18,000, 16,000, 16,000, 16,000, 22,000, and 9,000 BTU

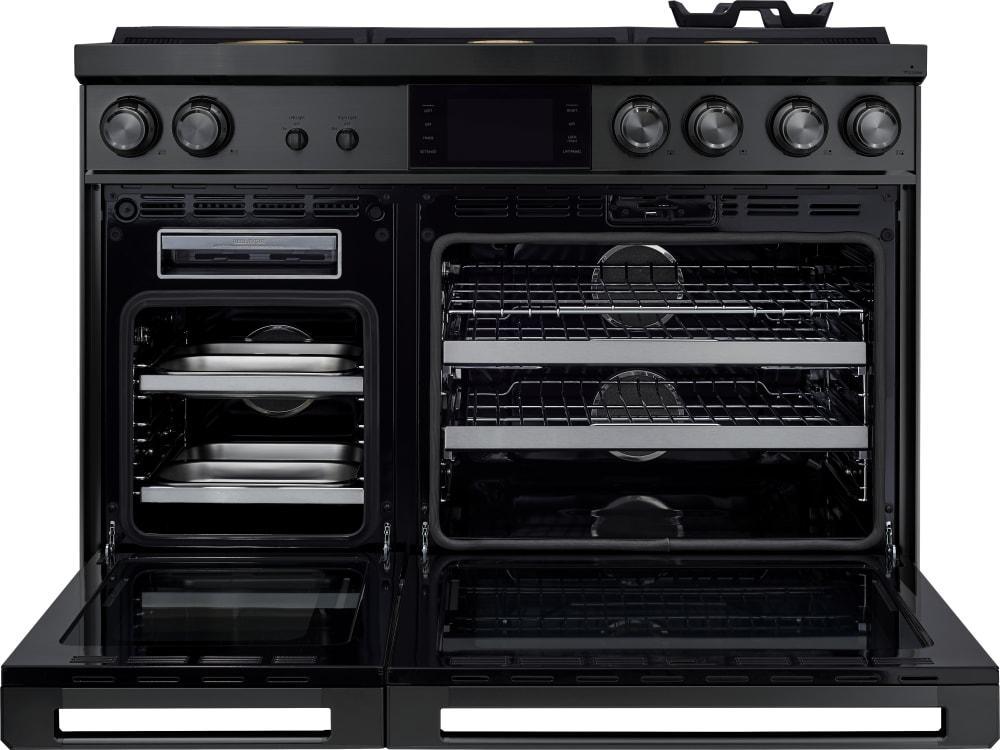

- 4.8 cu. ft. large oven and 1.8 cu. ft. small oven
- Real Steam oven function
- Dual Four-Part Pure Convection system for the large oven and convection in the small oven according to the product specification sheet and retailer specification data([image-us.samsung.com](https://image-us.samsung.com/SamsungUS/dacor/products/cooking/ranges/dop48m86dls/download/Dacor-48-InchDualFuelSteamRange-DOP48M86SpecSheet.pdf))([ajmadison.com](https://www.ajmadison.com/cgi-bin/ajmadison/DOP48M86DPM.html))
Installation Notes
- Installation requires qualified installation by a technician familiar with gas and electrical appliances.
- Use the documented liquid-propane fuel configuration; do not assume natural-gas compatibility without the correct manufacturer-approved configuration or conversion documentation.
- The installation manual specifies a 208/240 V, 60 Hz, 50 A electrical requirement.
- An anti-tip bracket is included and must be installed and verified according to the installation instructions.
- Follow local gas, electrical, clearance, and building-code requirements.
Verified Compatible Models
DOP48M86DPM/DA
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
