Dryer Drum Not Spinning? Samsung Drive Motor DC31-00055D — Fix Motor Failure Fast
If your Samsung dryer runs but the drum won't spin, or you hear a humming sound with no drum movement, the drive motor is the most likely failed component. In Samsung dryers, the drive motor (DC31-00055D) powers the drum rotation and the blower fan simultaneously. When it fails, the drum stops turning entirely — clothes sit in a stationary drum with heat, creating a fire risk and leaving laundry wet. ⚡ Common failure point in high-cycle Samsung DV-series dryers — especially after 5+ years of use. Part DC31-00055D is the genuine OEM Samsung drive motor that restores full drum rotation and blower function, bringing your dryer back to factory performance.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Dryer powers on and heats normally — thermal fuse and heating element confirmed OK
- ✔ Drive belt is intact — belt has been inspected and is not broken or slipped
- ✔ Drum turns freely by hand when belt is removed — no seized bearings
- ✔ ONLY problem is drum won't spin under power, or motor hums but doesn't turn
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Dryer runs but drum does not rotate — clothes stay stationary
- Humming or buzzing sound when dryer is started, but no drum movement
- Dryer starts briefly then stops — motor overheating and tripping thermal cutoff
- No airflow from exhaust vent — blower wheel not spinning (motor-driven)
- Burning smell from motor area during attempted operation
✔ If these symptoms match, the drive motor is the most likely failed component in the system.
✔ In most cases, replacing the DC31-00055D motor restores full drum rotation and airflow immediately.
📦 Part Details

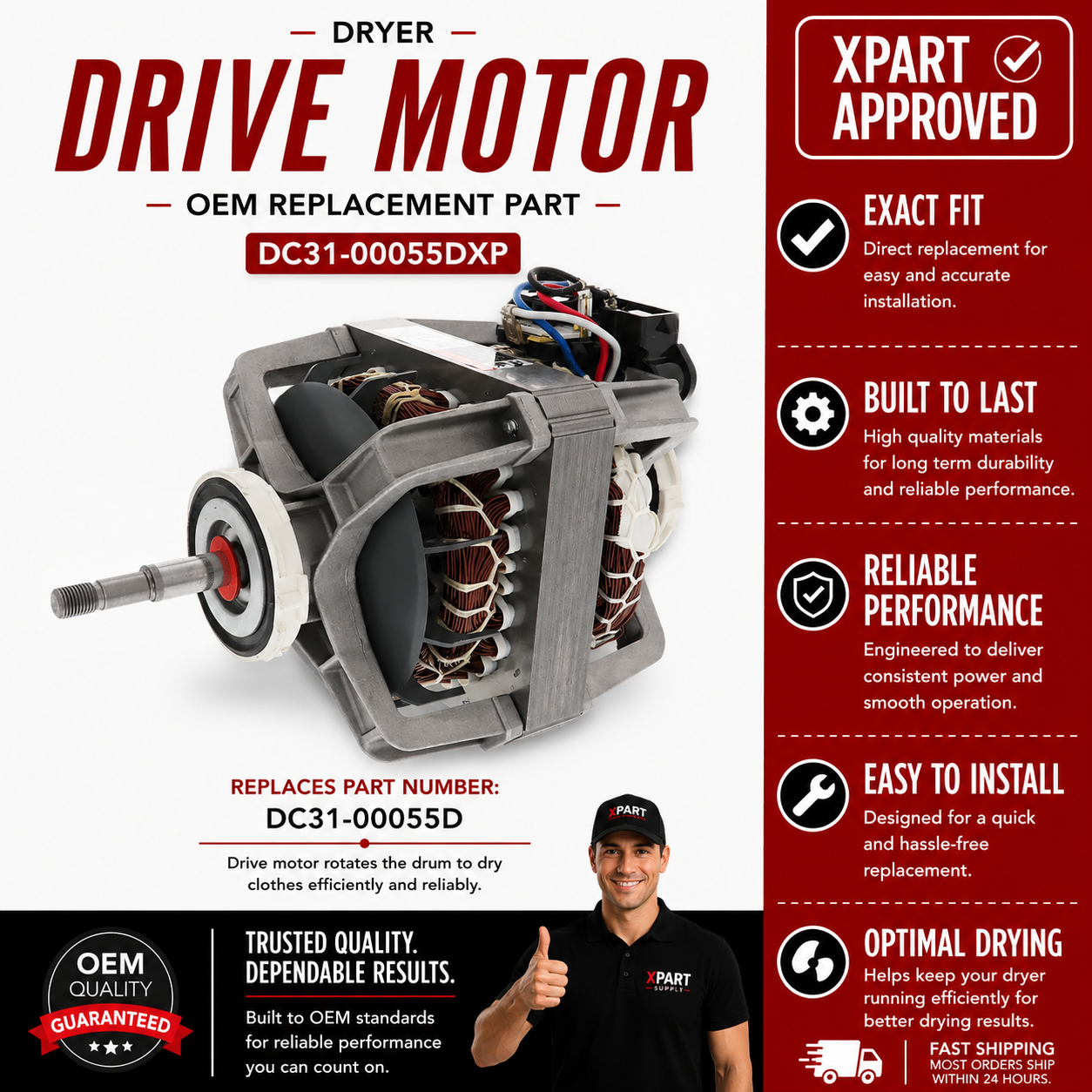

- Part Number: DC31-00055D (also DC31-00055DCM / DC31-00055DXP)
- Type: Dryer Drive Motor — 1820W, 115V, single-phase AC
- Replaces: DC31-00055D, DC31-00055A, DC31-00055G, DC31-00055H
- OEM Brand: Samsung
- Available As: Universal OEM (New & Used) and XPart branded (New & Used)
- HS Code: 850990 | Country of Origin: Canada
While the motor is out, inspect and replace the drive belt (DC66-00343A) and idler pulley (DC97-16782A) — these components wear together with the motor and are inexpensive to replace at the same time. A failed idler or frayed belt can burn out a new motor quickly. Do the full drivetrain kit and avoid a repeat repair.
⚙️ Installation
Skill Level: MODERATE — 45–75 minutes. Disconnect power before servicing. Remove the front panel and bulkhead to access the drum and motor assembly. Release the drive belt from the motor pulley and idler, then disconnect the motor wiring harness and mounting screws. Transfer the blower wheel to the new motor, reinstall in reverse order, and re-route the belt correctly around the drum, idler, and motor pulley before reassembling.
✓ Compatible Models
Confirmed compatible with DV306LEW/XAA, DV219AGW/XAA, DV5451AEW/XAA, DV448AEW/XAA, DV337AER/XAA, DV328AGG/XAA, DV419AEW/XAA, DV520AEW/XAA, DV410AEW/XAA, DV338AEW/XAA, DV218AEW/XAA, DV316BEW/XAA plus 56 additional Samsung DV-series models. Contact us to verify your model number before ordering.
💡 Pro Tip
Samsung dryer motors use a start capacitor to initiate rotation. A failed capacitor causes the exact same symptom as a dead motor — hum with no spin. Before ordering, test the capacitor with a multimeter (capacitance mode). If it reads within spec, the motor itself is the fault. If it's out of range, replace the capacitor first — it costs under $15 and can save you a $230 motor replacement.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
