Dryer Thermal Cut-Off Fuse DC47-00015A 320°F (Replaces 35001091)

$29.99
Buying Options: XPart
Condition: New

Product variant with selected options does not exist!

Frequently Bought Together
OEM & Premium XPart Options Available

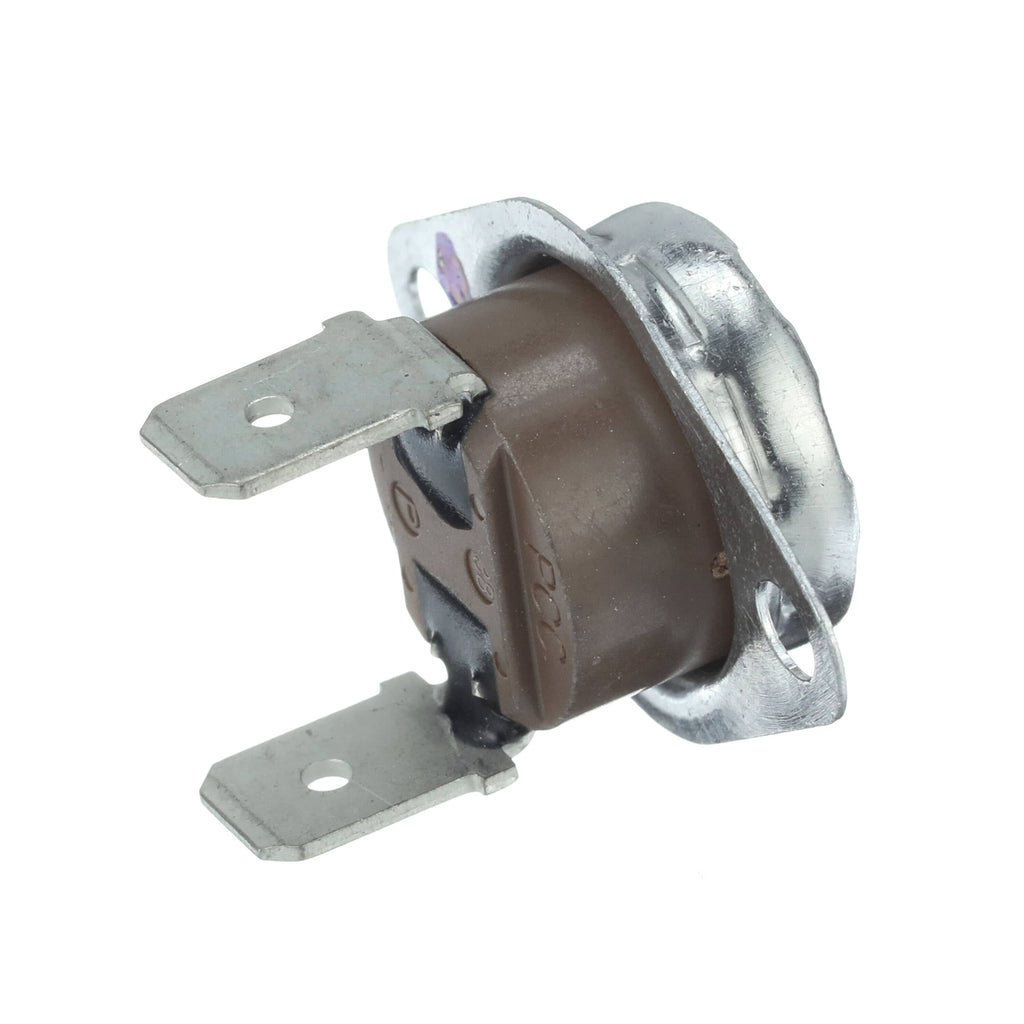

Dryer Thermal Cut-Off Fuse DC47-00015A 320°F (Replaces 35001091)

DC47-00015A Replaces 35001091 320°F Thermal Cut-Off Samsung Dryers

Samsung Dryer Not Heating? The Thermal Cut-Off Fuse DC47-00015A Is Likely Blown

When a Samsung dryer's thermal cut-off fuse blows, the dryer loses all heat — or stops running entirely. This is a one-time safety device: once it trips at 320°F, it cannot reset and must be replaced. The DC47-00015A Thermal Cut-Off Fuse is the direct replacement that restores heat and protects your dryer's heating circuit from runaway temperatures.

Symptoms of a Blown Thermal Cut-Off Fuse

  • Dryer runs but produces no heat
  • Dryer won’t start at all
  • Clothes come out damp after a full cycle
  • Dryer shuts off mid-cycle
  • No error code displayed — dryer just stops heating
  • Multimeter shows no continuity across the fuse

Part Details

  • Part Number: DC47-00015A
  • Replaces: 35001091
  • Type: Thermal Cut-Off Fuse
  • Trip Temperature: 320°F (160°C)
  • Compatible Brands: Samsung
  • Options: OEM New · XPart New · OEM Used · XPart Used
  • Sold by: XPart Supply Ltd.
💡 Pro Tip — Fix the Root Cause or the New Fuse Will Blow Again:
Thermal cut-off fuses don’t fail randomly — they blow because the dryer overheated. The most common cause is a clogged exhaust vent or lint trap restricting airflow. Before installing the new fuse, clean the full exhaust duct from dryer to exterior vent. Also test the cycling thermostat (DC47-00018A) — a failed thermostat allows temperatures to climb unchecked and will blow the new fuse within a few cycles.

Installation Notes

  • Skill Level: Intermediate — rear panel removal required on most Samsung models
  • Always disconnect power before beginning any repair
  • Test the old fuse with a multimeter (no continuity = confirmed blown)
  • The thermal cut-off fuse is located on the exhaust duct near the heating element
  • Clean the exhaust duct thoroughly before reassembly
  • Also inspect and test the cycling thermostat DC47-00018A while the panel is open

Compatible Models

Fits 100+ Samsung dryer models including: DV306LEW/XAA, DV395ETPASU/A1, DV42H5400EF, DV45H7000EW/A2, DV456EWHDSU/AA, DV48H7400EW/A2, DV48J7700EW/A2, DV48J7770EP/A2, DV48J7770EW/A2, DV48J7770EW/AC, DV50K8600EV/A3, DV50K8600EV/AC, DV511AER/XAA, DV52J8700EP/AC, DV52J8700EW/A2, DV5451AEW/XAA, DV5451AEW/XAC, DV56H9000EW/A2 and many more. See full model list in product tags.

DC47-00015A – Dryer Thermal Cut-Off Fuse

✓ Model-Specific Repair Pages

MODEL DV48H7400EW/A2 DV395ETPASU/A1 DV306LEW/XAA DV511AER/XAA DV456EWHDSU/AA DV48J7770EW/AC DV48J7770EW/A2 DV48J7770EP/A2 DV48J7700EW/A2 DV52J8700EP/AC DV52J8700EW/A2 DV50K8600EV/AC DV50K8600EV/A3 DV45H7000EW/A2 DV42H5400EF DV5451AEW/XAC DV5451AEW/XAA DV56H9000EW/A2

✅Compatibility & Cross Reference

Part number DC47-00015A replaces 35001091

DV456EWHDSU/AA, DV511AER/XAA, DV306LEW/XAA, DV395ETPASU/A1, DV48H7400EW/A2, DV56H9000EW/A2, DV5451AEW/XAA, DV5451AEW/XAC, DV42H5400EF, DV45H7000EW/A2, DV50K8600EV/A3, DV50K8600EV/AC, DV52J8700EW/A2, DV52J8700EP/AC, DV48J7700EW/A2, DV48J7770EP/A2, DV48J7770EW/A2, DV48J7770EW/AC, DV45K6200EZ/A3, DV45K6200EW/AC, DV45K6200EZ/AC, DV45K7600EW/A3, DV45K7600EW/AC, DV45K6500EV/A3, DV45K6500EW/A3, DV45K6500EV/AC, DV40J3000EW/A2, DV40J3000EW/AC, 59289622, 59289653, DV45H7000EP/A3, DV50K8600EW/A3, 59289679, 59289683, DV50K7500EV/A3, DV50K7500EV/AC, DV52J8700EP/A2, DVE52M8650W/A3, DVE50M7450W/A3, DVE52M7750W/A3, DVE54M8750V/A3, DVE45N5300W/A3, DVE60M9900V/A3, DVE45M5500W/A3, DVG60M9900V/A3, DVE50M7450P/A3, DVE54M8750W/A3, DVE52M7750V/A3, DVE55M9600V/A3, DV42H5200EW/A3, DVE52M8650V/A3, DVE55M9600W/A3, DV42H5000EW/A3, DVE45M5500Z/A3, DVE45N5300V/A3, DV42H5200EP/A3, DV50K7500EW/A3, DVE45M5500P/A3, DVE60M9900W/A3, DV45H7000EW/AC, DV42H5000EW/AC, DV42H5200EW/AC, DV42H5200EP/AC, DV229AEG/XAC, DV410AEW/XAC, DV42H5600EP/AC, DV448AEW/XAC, DV393ETPAWR/AC, DV337AER/XAA, DV350AER/XAA, DV337AEG/XAA, DV448AEP/XAC, DV405ETPASU/AC, DV350AEG/XAC, DV45H6300EW/AC, DV350AER/XAC, DV448AEP/XAA, DV405ETPASU/AA, DV393ETPARA/A1, DV45H6300EG/AC, DV5471AEP/XAC, DV42H5600EW/A3, DV218AEB/XAC, DV419AES/XAC, DV5471AEP/XAA, DV419AEU/XAA, DV218AEB/XAA, DV409AER/XAA, DV393ETPAWR/A1, DV431AEW/XAA, DV5471AEW/XAA, DV340AER/XAC, DV45H6300EP/AC, DV219AEW/XAA, DV42H5400EF/A3, DV419AEW/XAA, DV431AEP/XAC, DV365ETBGSF/AC, DV42H5600EP/A3, DV431AEP/XAA

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
