Samsung Dryer Not Heating or Blowing Cold Air? Heating Element DC47-00032A – Fix No-Heat Dryer Fast

A Samsung dryer that runs but produces no heat — blowing cold air through every cycle — is almost always a failed heating element coil. In most Samsung and Kenmore electric dryers, the heating element is the nichrome coil that generates all drum heat for drying. When it burns through or breaks, the dryer motor runs normally but no heat is produced — clothes come out damp after a full cycle, or the dryer takes two to three runs to dry a single load. ⚡ Common failure point in Samsung DVE and DV series electric dryers. Part DC47-00032A is the genuine OEM Samsung heating element coil (3700W high / 1500W low, 240V, 3-wire dual wattage) that restores full heat output on both settings — superseding DC93-00154A, DC97-14486E, and XP93-00154A.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Dryer powers on and drum rotates normally
• ✔ Thermal fuse tests good (continuity confirmed) — if blown, replace it too
• ✔ High-limit thermostat and cycling thermostat test good
• ✔ Element coil tests open on continuity check (no continuity = failed coil)
• ✔ ONLY problem is no heat or insufficient heat — drum turns, motor runs normally

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Dryer runs but produces no heat — blows cold or room-temperature air only
• Clothes still damp after a full cycle — takes 2–3 runs to dry a load
• Only one heat setting works (high or low, not both) — partial coil failure
• Burning smell or scorched odour from the drum area during operation
• Circuit breaker trips when the dryer is switched to a heat setting
• Dryer overheating or running excessively hot before shutting off

✔ If these symptoms match, the heating element is the most likely failed component.

✔ In most cases, replacing this element restores full heat output on both settings immediately.

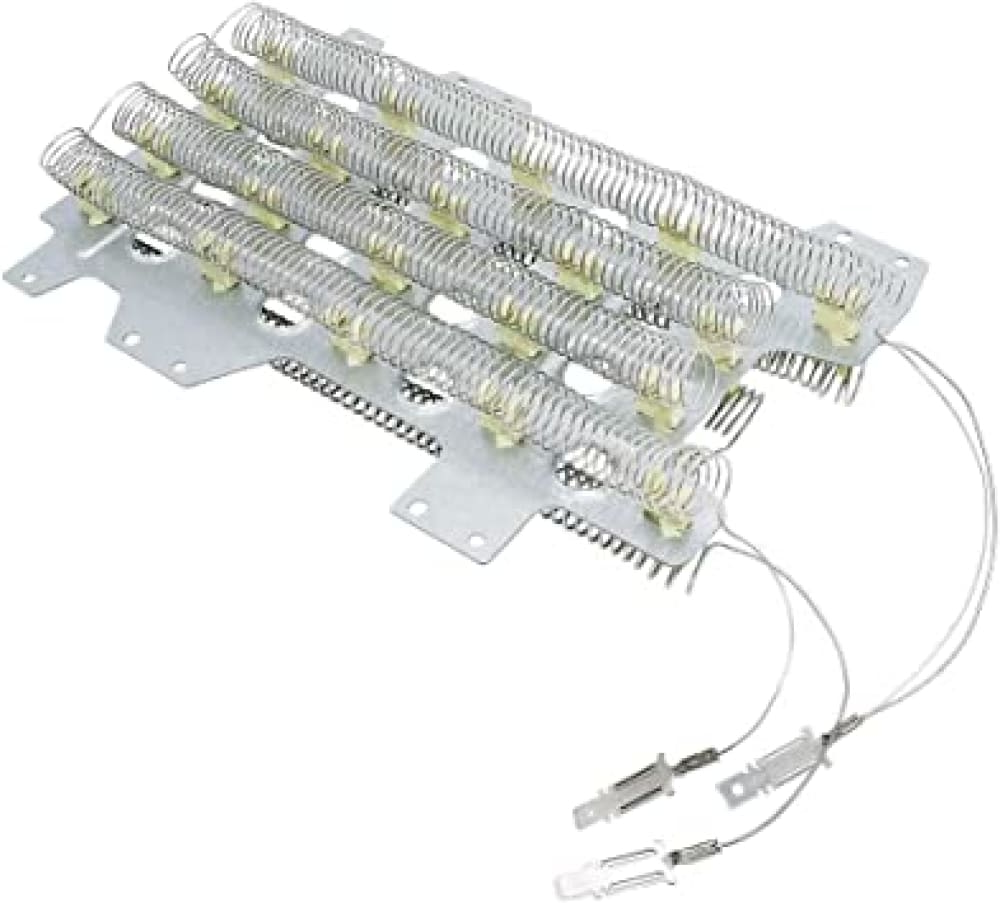

📦 Part Details

• Part Number: DC47-00032A (OEM) / DC47-00032AXP (XPart)
• Type: Dryer Heating Element Coil — 240V, 3700W high / 1500W low, 3-wire dual wattage, nichrome coil only
• Replaces / Supersedes: DC93-00154A, DC97-14486E, XP93-00154A, AP5582094, PS4216214
• Brands: Samsung, Kenmore
• Configuration: Coil only — reuses existing heater housing, thermal fuse, and thermostats if still good
• Status: ⚠️ OEM Discontinued (NLA) — XPart premium replacement available

⚙️ Installation

Skill Level: MODERATE — 30–60 minutes. Disconnect power and turn off the circuit breaker before servicing — this is a 240V component. The heater housing is at the rear of the dryer behind the drum — remove the back panel to access it. Photograph the coil routing and all 3 terminal positions before disconnecting, remove the old coil from the housing, install the new DC47-00032A coil in the same routing pattern, reconnect all 3 terminals in the correct positions, reassemble the back panel, restore power, and run a test cycle on both heat settings to confirm full heat restoration.

✓ Compatible Models

Confirmed compatible with DV45K6500EV/A3, DV45K6500EV/AC, DV45K6500EW/A3, DVE46BB6700DA3, DVE46BG6500EA3, DVE50BG8300VA3, DVE53BB8900DA3, DVE55A7300E/A3, DVE55CG7500EA3, WH46DBH100EWA3, WH46DBH500EVA3 plus additional Samsung and Kenmore electric dryer models. Contact us to verify your model number before ordering.

💡 Pro Tip
