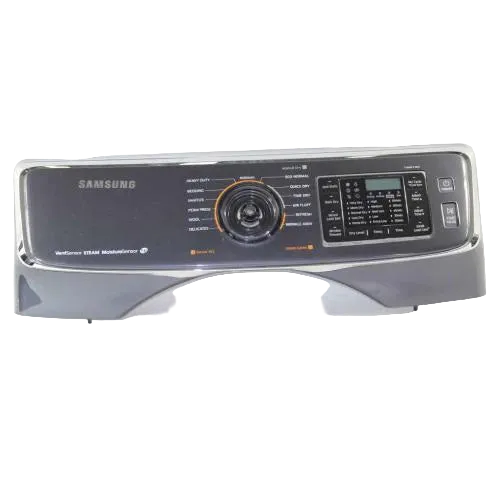

Samsung Dryer Not Starting or Panel Unresponsive? Control Board DC64-03099A – Fix Control Failures Fast
If your Samsung dryer won't start, the display is blank, or the control buttons are completely unresponsive, the main control board has likely failed. In most Samsung DV-series dryers, the control board is the central hub that processes all user inputs and signals every dryer function. When it fails, the dryer may appear completely dead, throw persistent error codes, or stop randomly mid-cycle with no explanation. ⚡ Common failure point in Samsung-built electric and gas dryers. Part DC64-03099A is the genuine OEM replacement that restores full panel responsiveness, start function, and cycle control immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Dryer powers on (door light works or drum light present) but panel is unresponsive
- ✔ Motor and drum are mechanically sound — no grinding or seized bearings
- ✔ Power supply confirmed OK — outlet, breaker, and cord are fine
- ✔ ONLY problem is no start, blank display, frozen buttons, or random mid-cycle shutoff
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Dryer won't start — pressing Start does nothing
- Display panel is blank or shows garbled characters
- Control buttons are frozen or unresponsive to touch
- Dryer stops mid-cycle randomly with no error code
- Persistent error codes that don't clear after reset
- Dryer runs but selected cycle settings are ignored
✔ If these symptoms match, the control board is the most likely failed component in the system.
✔ In most cases, replacing this control board restores normal operation immediately.
📦 Part Details
- Part Number: DC64-03099A
- Type: Main Control Board / Control Panel Assembly — OEM Samsung
- Replaces: DC64-03099, DC64-03099A
- Brands: Samsung
- Appliance Type: Residential Dryer (Electric & Gas DV-Series)
Check the door switch (DC64-00519A) while the dryer is open — a failed door switch mimics control board symptoms and is a $15 fix. If the dryer still won't start after replacing the board, the door switch is the next most likely cause. Replace both at the same time to avoid a second service call.
⚙️ Installation
Skill Level: Moderate — 30 to 45 minutes. Disconnect power before servicing. Remove the top panel and control panel housing (typically 4–6 screws), disconnect all wire harness connectors from the old board, transfer them to the new board in the same positions, and reassemble. No soldering required. A phone photo of the harness layout before disconnecting saves significant time.
✓ Compatible Models
Confirmed compatible with DV42H5200EW, DV42H5200GW, DV45H7000EW, DV45H7000GW, DV48H7400EW, DV48H7400GW, DV56H9100EW, DV56H9100GW, DV80H4010CW, plus additional Samsung DV-series models. Contact us to verify your model number before ordering.
💡 Pro Tip
The DC64-03099A has multiple wire harness connectors that look similar. Before pulling any connector, take a clear photo of the full board with all harnesses attached. This eliminates the risk of mis-routing on reassembly and cuts your install time in half. While you're in there, inspect the thermal fuse (DC96-00887A) — if the board failed due to overheating, the fuse may be blown too and will prevent the dryer from starting even with a new board installed.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
