Samsung Washer Leaking from the Door? Door Boot Gasket DC64-03788C – Fix Door Seal Failure Fast

If your Samsung front-load washer is leaking water from the door, has a torn or mouldy door gasket, or is showing visible damage to the rubber drum seal, the door boot gasket is the failed component. In most Samsung large-capacity front-load washers, the door boot gasket forms the primary watertight seal between the door glass and the drum opening. When it tears, cracks, or develops holes from sharp objects or age, water escapes during every cycle and mould accumulates in the folds. ⚡ High-wear component on Samsung large-capacity front-load platforms. Part DC64-03788C is the genuine OEM replacement gasket that restores a full watertight drum seal and eliminates door leaks completely.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Washer powers on and runs cycles normally
• ✔ Water supply hoses, inlet valve, and drain are confirmed OK
• ✔ Drum and tub show no cracks or damage
• ✔ Door latch and lid lock engage correctly
• ✔ ONLY problem is water leaking from the door area, visible gasket damage, or persistent mould in the door seal

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

• Water leaking from the front door during or after the wash cycle — most common complaint
• Visible tear, crack, puncture, or hole in the rubber door gasket
• Persistent black mould in the gasket folds that won’t clean off
• Burning or rubber smell during the spin cycle from gasket contact with the drum
• Door won’t seal flush — gasket bulging or partially collapsed
• Water marks or mineral deposits on the door glass from repeated seal failure

✔ If these symptoms match, the door boot gasket is the failed component.

✔ In most cases, replacing the door boot gasket fully restores the drum seal and stops all door leaks.

📦 Part Details

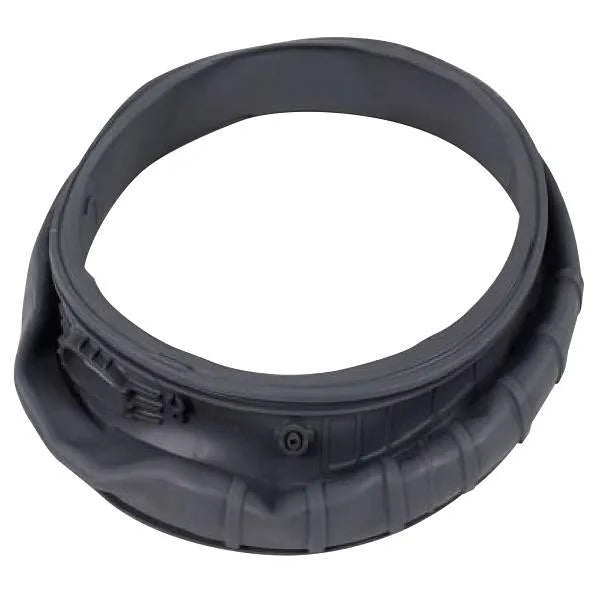

• Part Number: DC64-03788C
• Type: Front-load washer door boot gasket — full drum-to-door rubber seal assembly
• Replaces: OEM direct-fit door boot — DC64-03788C (no modification required)
• Brands: Samsung

⚙️ Installation

Skill Level: Moderate — 45–75 minutes. Unplug the washer before beginning. Remove the door boot clamp, peel the gasket off the front cabinet ring and drum lip, and transfer any drain holes or alignment tabs to the new gasket before seating it. Work the new gasket onto the drum lip first, then stretch it over the front cabinet ring and reseat the spring clamp around the full circumference. Run an empty hot cycle to confirm no leaks before returning to normal use.

✓ Compatible Models

Confirmed compatible with WF56H9100AG, WF56H9100AW, WF457ARGSGR, WF457ARGSWR, WF520ABP, WF520ABW, WF531ABP, WF531ABW, plus additional Samsung large-capacity front-load washer models. Contact us to verify your model number before ordering.
