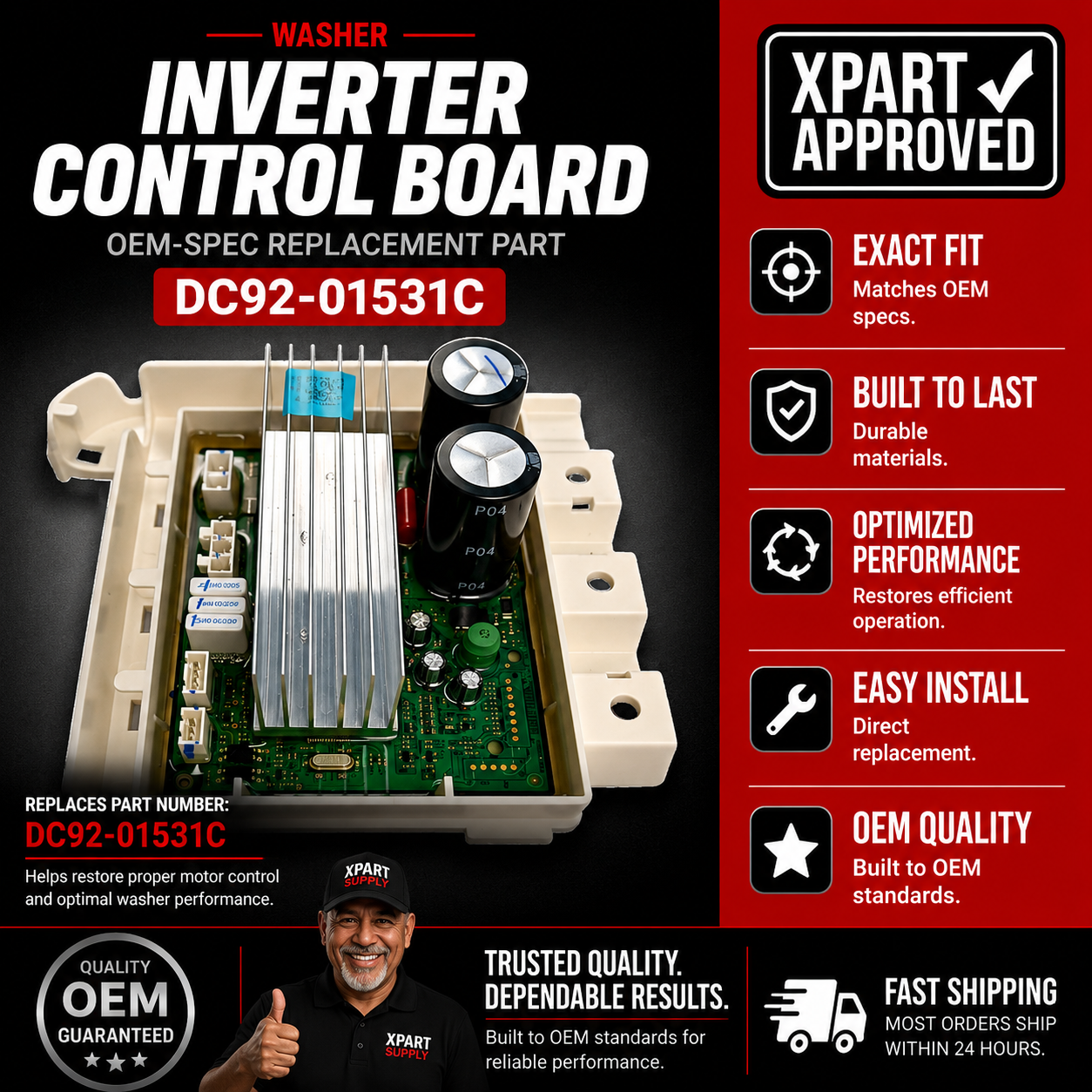

Samsung Washer Inverter Board Assembly DC92-01531C

Genuine Samsung washer inverter board assembly that controls the washer drive motor's speed and direction.

Is This the Right Part?

Common Symptoms

• Washer stops mid-cycle during motor operation.
• Drum hesitates, reverses, or fails to rotate.
• Motor-related error codes such as 3E/3C may occur, depending on model.
• A failed or shorted board may show visible scorching or produce a burning smell.
• Washer may become unresponsive or fail to complete a wash or spin cycle.

Check Before Replacing

• Disconnect power before inspecting the inverter board, wiring, or connectors.
• Check the board and surrounding wiring for visible scorching, melted insulation, loose connectors, or damaged terminals.
• Confirm that the motor and inverter-board harness connectors are fully seated and that the harness is not pinched or damaged.
• With power disconnected, rotate the washer basket by hand and check for abnormal binding, scraping, or excessive bearing play before attributing the problem to the inverter board.
• Review the washer's model-specific error-code guidance; motor-related codes can also be caused by the motor, hall/rotation sensor, wiring, voltage, or another control board.

Pro Tip

Part Details

Key Features

• Genuine Samsung OEM washer inverter board assembly.
• Regulates drive-motor speed and direction.
• Converts DC power to AC motor drive signals.
• Used on select Samsung front-load, AddWash, and FlexWash washer platforms.
• Electronic assembly intended to replace a defective or non-functioning inverter control board.

Installation Notes

• Unplug the washer and disconnect it from power before beginning the repair.

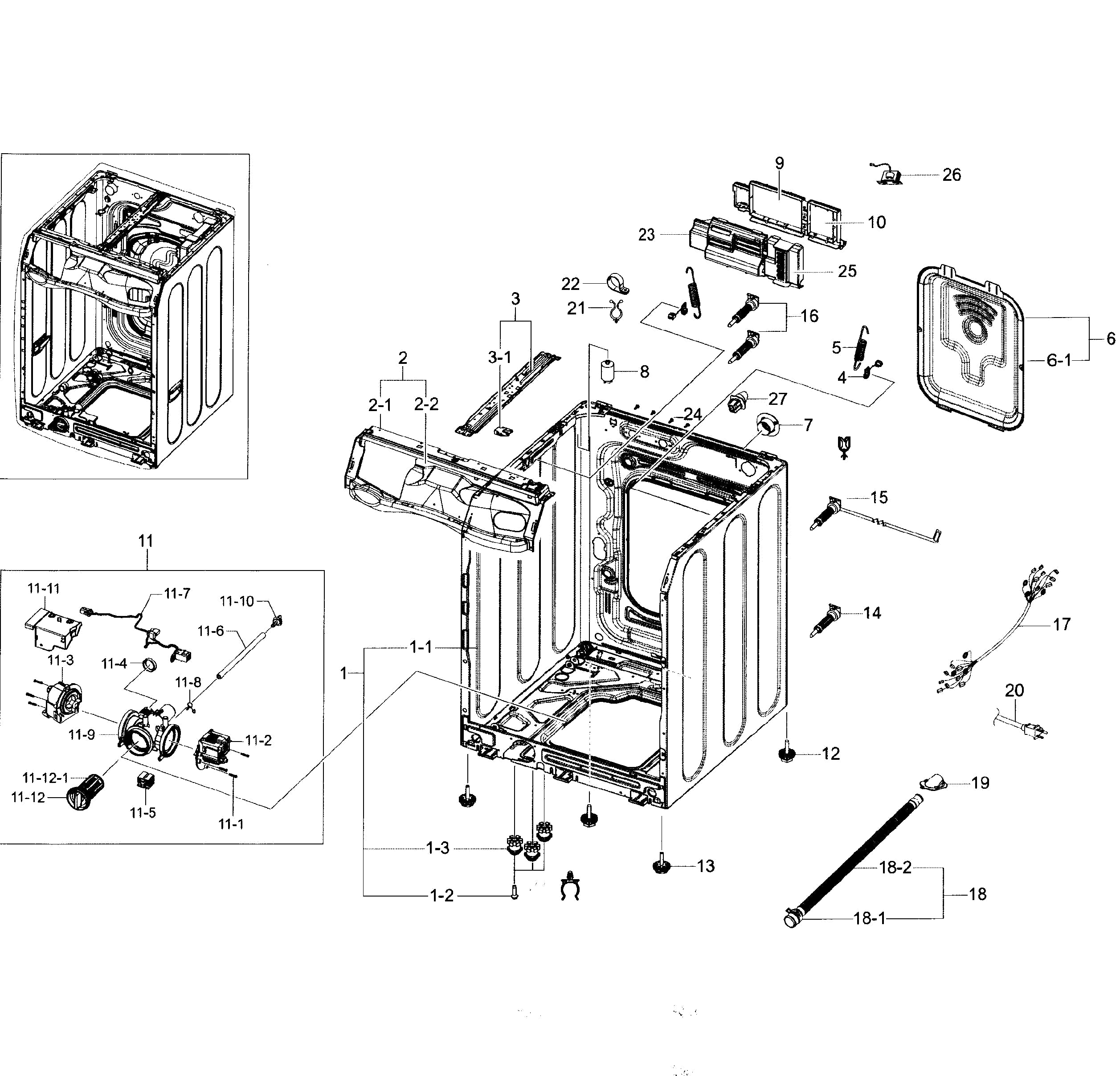

• The inverter board is accessed from the rear/lower electronics area on applicable models.
• Document connector locations before disconnecting the original board.
• Disconnect the wiring connectors, remove the board's existing mounting hardware, and install the replacement in the same position.
• Reconnect each harness securely, reinstall the protective covers and rear panel, then verify operation with an appropriate wash or spin test.
• Use the appliance's model-specific service information if access or post-repair procedures differ.

Verified Compatible Models

WF45H6100AP/A2-0001, WF45H6300AW/A2-0001, WF45K6200AZ/A2-0000, WF56H9100AW/A2-0000, WF56H9110CW/A2-0000, WF56H9110CW/A2-0001, WF42H5200AP/A2-00, WF45H6100AP/A2, WF45H6100AP/A2-01, WF45H6300AG/A2, WF45H6300AW/A2, WF45H6300AW/A2-01, WF45K6200AW/A2-00, WF45K6200AW/A2-11, WF45K6200AZ/A2-01, WF45K6200AZ/A2-11, WF45K6500AV/A2, WF45K6500AV/A2-00, WF45K6500AV/A2-0000, WF45K6500AV/A2-01, WF45K6500AV/A2-11, WF45K6500AW/A2, WF45K6500AW/A2-00, WF45K6500AW/A2-11, WF45K6500AW/A2-51, WF50K7500AV/A2, WF50K7500AV/A2-00, WF50K7500AV/A2-0000, WF50K7500AV/A2-0011, WF50K7500AV/A2-11, WF50K7500AW/A2-11, WF56H9100AG/A2-00, WF56H9100AG/A2-0001, WF56H9100AG/A2-01, WF56H9100AV/A2-00, WF56H9100AW/A2, WF56H9100AW/A2-0001, WF56H9100AW/A2-01, WF56H9110CW/A2-00, WF56H9110CW/A2-01, WV55M9600AV/A5, WV55M9600AV/A5-00, WV55M9600AV/A5-0000, WV55M9600AV/A5-0001, WV55M9600AV/A5-01, WV55M9600AV/A5-02, WV55M9600AW/A5, WV55M9600AW/A5-00, WV55M9600AW/A5-03, WV60M9900AV/A5-00, WV60M9900AV/A5-01, WV60M9900AV/A5-02, WV60M9900AW/A5, WV60M9900AW/A5-01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
