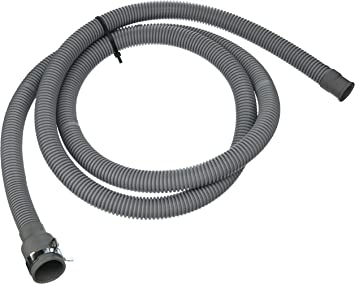

Samsung Washer drain hose assembly DC97-12534D, Replaces 2076234

Genuine Samsung drain hose assembly that carries wastewater from the washer to the household drain or standpipe. AppliancePartsPros describes it as approximately 95 inches long.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Visible water leaking from the washer cabinet or onto the floor during drain or spin-out
• Washer drains slowly or fails to drain when the hose is kinked or clogged
• Drain-related overflow or spilling caused by an improperly positioned hose
• Siphoning or drainage problems when the external hose is inserted too deeply or forms an airtight connection

Check Before Replacing

• Unplug the washer and shut off its water supply before inspecting the hose.
• Inspect the accessible hose and connections for cracks, splits, soft spots, loose clamps, or signs of water residue.
• Check that the hose is not kinked, crushed, or obstructed.
• During a controlled drain test, observe the hose and connection areas for leakage; stop the test if water reaches electrical components or creates a slip hazard.
• Verify the external drain-hose routing: Samsung advises inserting it about 6–8 inches into the drain pipe, avoiding an airtight seal, and securing it so it cannot slip farther into the pipe.

Pro Tip

Part Details

Key Features

• Genuine Samsung OEM washer drain hose assembly
• Approximately 95 inches long according to AppliancePartsPros
• Designed to carry used washer water to a standpipe or household drain
• Assembly includes the hose routing and retention features associated with the appliance installation

Installation Notes

• Disconnect electrical power and shut off the washer water supply before beginning service.
• Have a shallow container or towel available because residual water may escape when the hose is disconnected.
• Route the replacement hose through the washer cabinet using the existing hose guide or retainers.
• Reconnect the hose at the drain-pump connection and secure it with the existing retaining clamp or hardware; do not operate the washer until the connection is secure.
• After installation, restore the water supply and power, then observe a drain cycle for leaks.
• Follow the appliance-specific service documentation because access and panel-removal procedures vary by washer model.

Verified Compatible Models

592-49193, 592-49003, 592-49006, 592-49196, WF393BTPARA/A1-00, WF393BTPARA/A1-01, WF393BTPARA/A2-00, WF393BTPAWR/A1-00, WF393BTPAWR/A1-01, WF393BTPAWR/A2-00, WF395BTPARA/A1-00, WF395BTPARA/A2-00, WF395BTPAWR/A2-00, WF431ABW/XAA-00, WF448AAP/XAA-05

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
