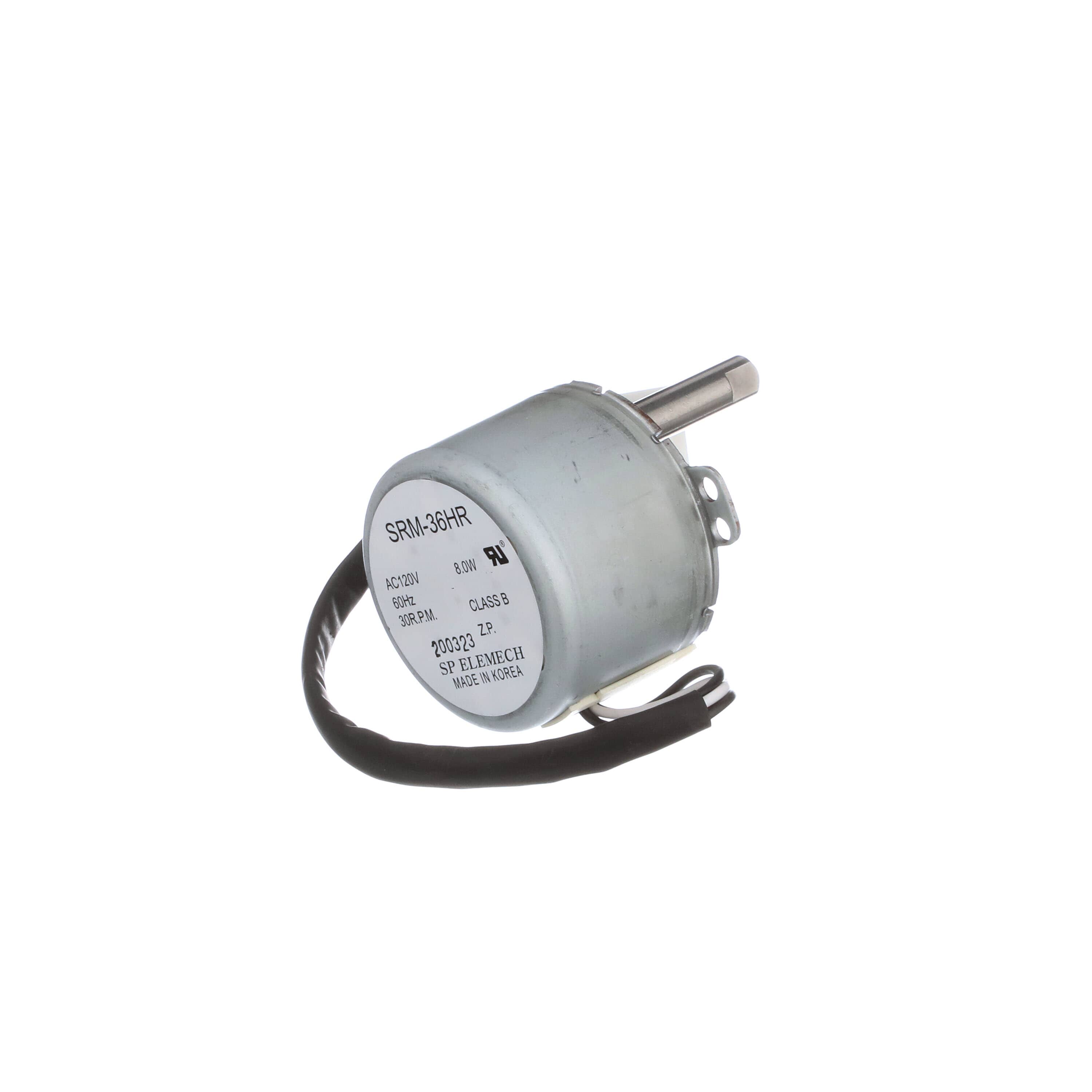

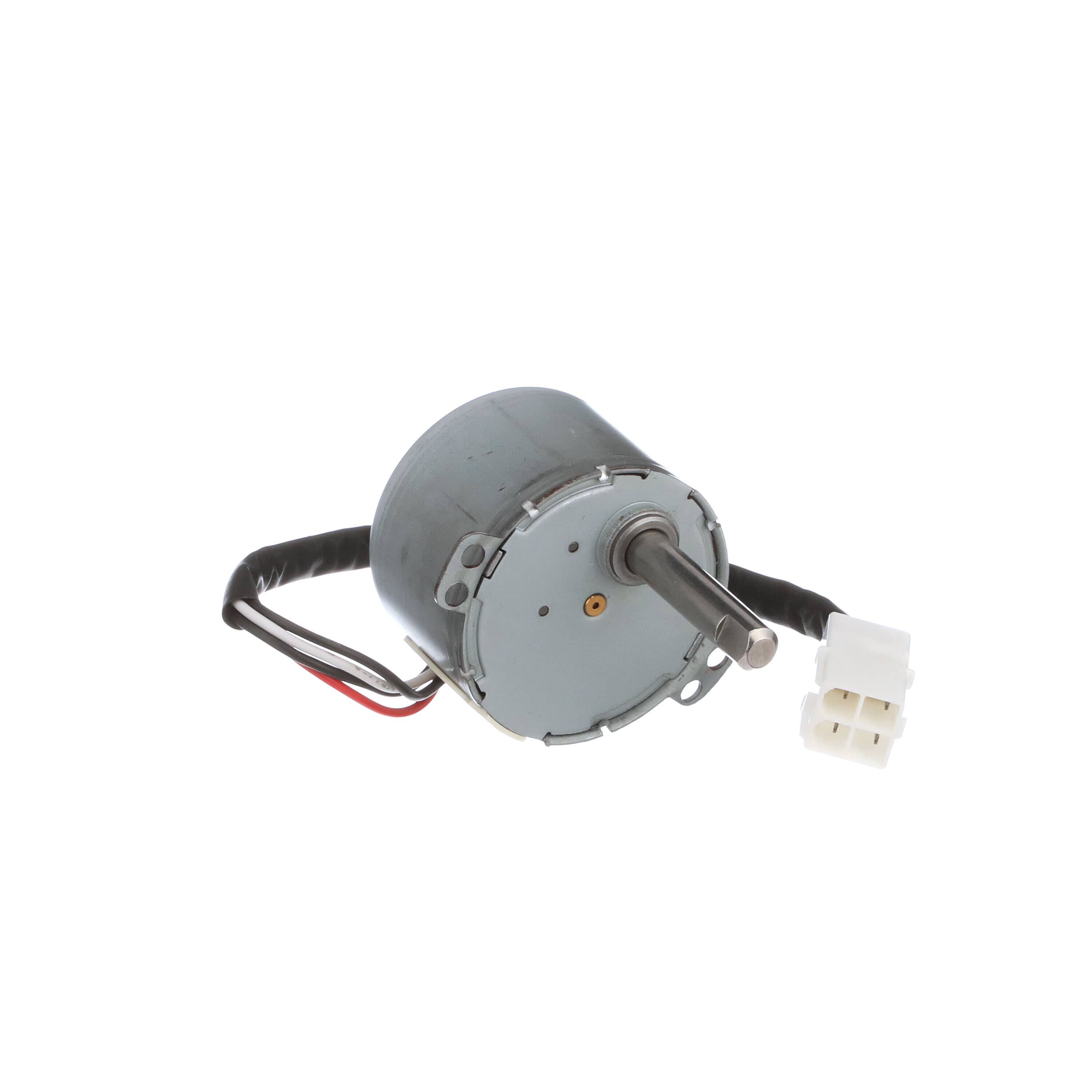

Dishwasher Not Cleaning Properly? WaterWall Spray Arm Motor DD31-00013B – Fix Spray Arm Fast
If your Samsung WaterWall dishwasher is running full cycles but dishes are coming out dirty, spotted, or only clean on one side, the WaterWall spray arm motor is the most common cause. In most Samsung WaterWall dishwashers, this is caused by a failed geared spray arm motor. When it fails, the belt-driven WaterWall arm stops traversing the tub — leaving large sections of the rack without water coverage and resulting in consistently poor wash results. ⚡ Common failure point in Samsung WaterWall dishwashers. Part DD31-00013B is the genuine OEM replacement that restores full WaterWall arm movement and even water distribution across all rack levels.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Dishwasher powers on and completes a full wash cycle
- ✔ Water fills and drains correctly
- ✔ Door latch, control panel, and heating element function normally
- ✔ ONLY problem is the WaterWall arm not moving or dishes cleaning unevenly
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- WaterWall spray arm not moving during wash cycle
- Dishes dirty or spotted on one side of the rack
- Dishwasher runs a full cycle but cleaning performance is poor
- WaterWall belt not turning or slipping off the motor gear
- Grinding or humming noise from the lower tub area during wash
- Spray arm moves manually but won't move under power
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this spray arm motor restores full WaterWall function immediately.
📦 Part Details
- Part Number: DD31-00013B
- Type: WaterWall Spray Arm Geared Motor — drives the belt that traverses the WaterWall arm across the tub
- Replaces: DD31-00013B
- Brands: Samsung
- Series: DW80H, DW80J, DW80M WaterWall models
While the lower tub is open, inspect the WaterWall drive belt for cracking, stretching, or slipping. A worn belt will cause the same arm-not-moving symptom even with a new motor installed. If the belt shows any wear, replace both together to avoid a repeat repair call.
⚙️ Installation
Skill Level: Moderate — 30 to 45 minutes. Disconnect power before servicing. Remove the lower rack and WaterWall spray arm assembly to expose the motor housing in the lower tub. Disconnect the wiring harness, release the belt from the motor gear, and unclip the motor from its mount. Install the new motor in reverse order, ensuring the belt is properly seated on the gear before reassembling. Run a short cycle to confirm the arm traverses the full width of the tub.
✓ Compatible Models
Confirmed compatible with DW80J7550UW/AA-01, DW80H9930US/AA-00, DW80H9970US/AA-02, DW80J9945US/AA-01, DW80M9550US/AA-00, DW80M9960UG/AA-00 plus additional Samsung WaterWall models. Contact us to verify your model number before ordering.
💡 Pro Tip
Before ordering, manually push the WaterWall arm across the tub and watch the belt. If the belt moves freely but the arm doesn't move under power, the motor has failed. If the belt is broken, cracked, or off the track, replace the belt first — a failed belt can burn out a new motor quickly if left unaddressed. Replacing both at the same time is the most reliable fix.
✓ Full Compatible Model List
Don't see your model? Contact us with your model number to confirm fit before ordering.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
