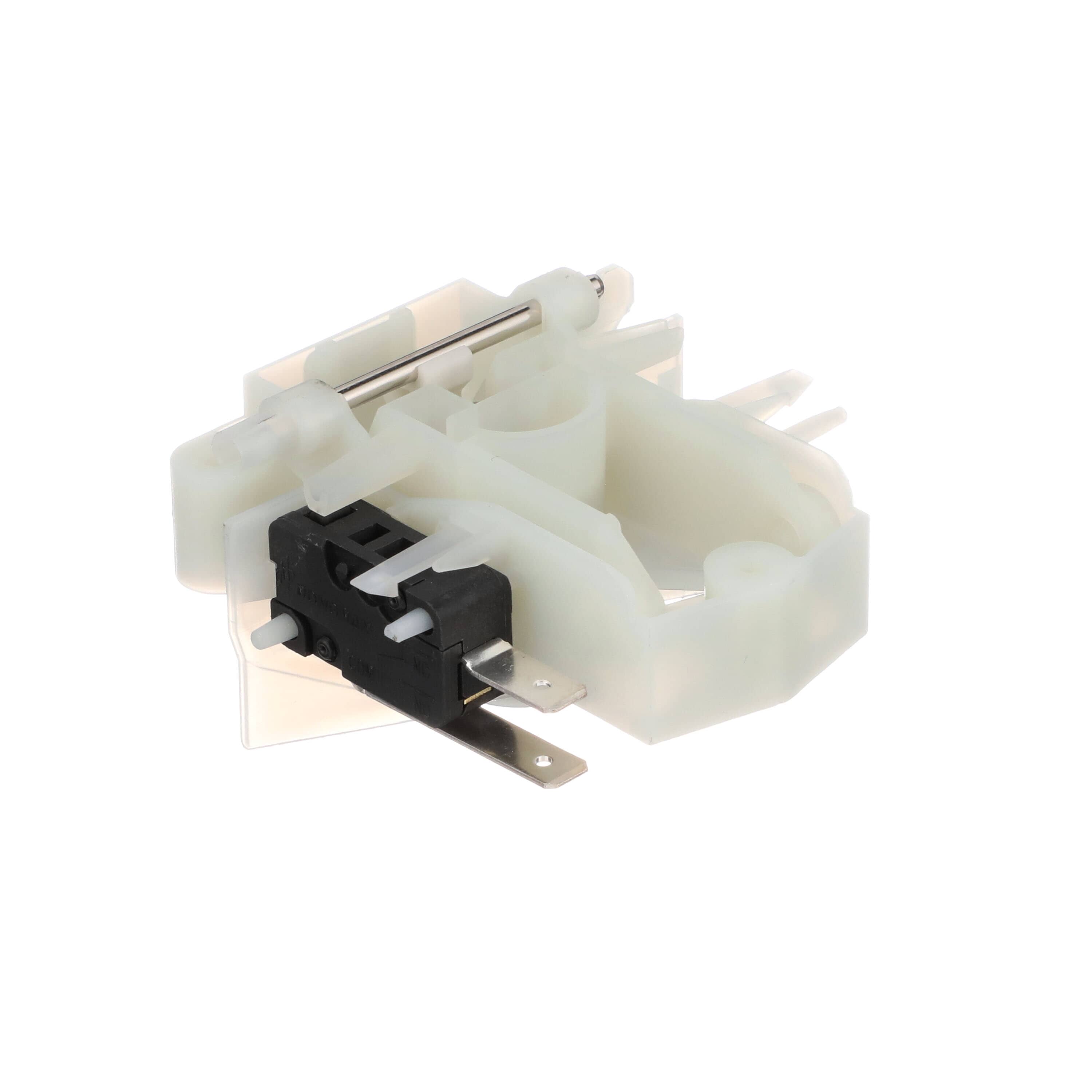

Samsung Dishwasher door switch / door lock switch assembly DD81-02132A, Replaces DD81-01629A

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dishwasher does not start after the door is closed
• Door-latch or door-lock detection failure
• Dishwasher may stop or refuse to operate when the door is not properly sensed

Check Before Replacing

• Confirm the door closes and latches fully.
• Check whether the dishwasher responds differently when the door is firmly closed versus slightly open.
• Disconnect power before inspecting the switch or wiring for visible damage or a loose connection.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power at the plug or circuit breaker before servicing.
• Access to the switch may require removal of the dishwasher door's inner panel; follow the model-specific service information.
• Reconnect the wiring securely and restore power only after the panel and switch are properly secured.

Verified Compatible Models

DW80F600UTB, DW80F600UTS, DW80F600UTSAA01, DW80F600UTW, DW80F800UWS, DW80J3020UB/AA, DW80J3020UB/AC, DW80J3020US/AA, DW80J3020US/AC, DW80J3020UW/AA, DW80J3020UW/AC, DW80K5050UB/AA, DW80K5050UG/AA, DW80K5050US/AA, DW80K5050UW/AA, DW80T5040US

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
