Samsung Dishwasher Not Cleaning Evenly or Spray Coverage Poor? Motion Wash Arm Module DD97-00484D – Fix Uneven Wash Fast
When your Samsung dishwasher leaves dishes dirty on one side, certain rack positions consistently come out with food residue, or the wash arm isn't moving through its full range of motion, the motion wash arm module is the component to replace. In Samsung dishwashers equipped with the Motion Wash system, the wash arm module uses a motorized rotating arm to deliver targeted, multi-directional water jets across the entire rack — unlike a standard fixed spray arm. When the module fails, the arm stops moving through its programmed sweep pattern, water coverage becomes uneven, and dishes in affected zones come out dirty regardless of cycle selection. ⚡ Common failure point in Samsung Motion Wash dishwashers — the motorized arm mechanism is more complex than a standard spray arm and subject to wear over time. Part DD97-00484D is the genuine OEM replacement that restores full motion wash coverage, even water distribution, and consistent cleaning performance across all rack positions.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Dishwasher powers on and the control panel responds normally
- ✔ Water fills, circulates, and drains correctly
- ✔ The wash pump runs — you can hear water moving during the cycle
- ✔ ONLY problem is uneven cleaning, poor coverage in specific rack zones, or the motion arm not sweeping
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Dishes on one side or in specific rack positions consistently come out dirty
- Motion wash arm not rotating or sweeping during cycle
- Visible water spots or food residue despite full cycle completion
- Arm moves but doesn't complete its full sweep pattern
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this motion wash arm module restores full coverage and even cleaning immediately.

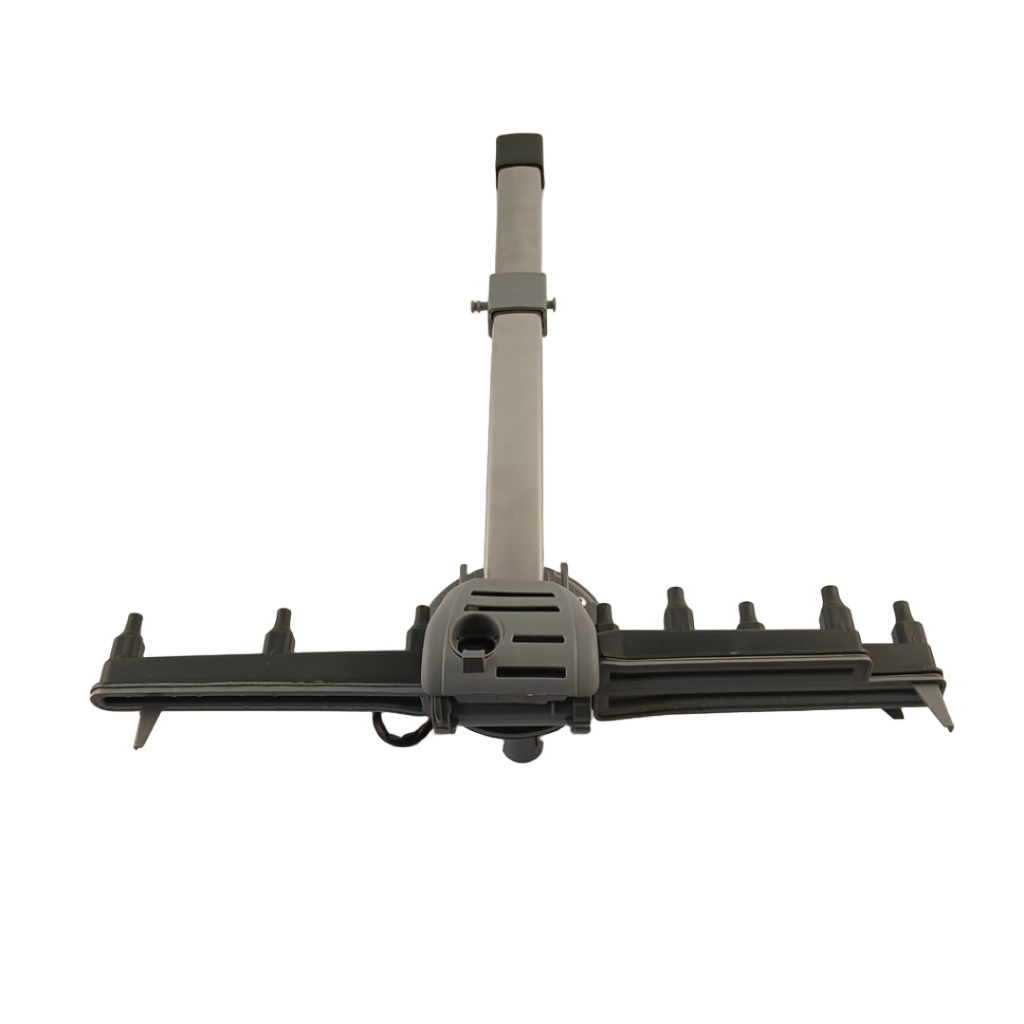

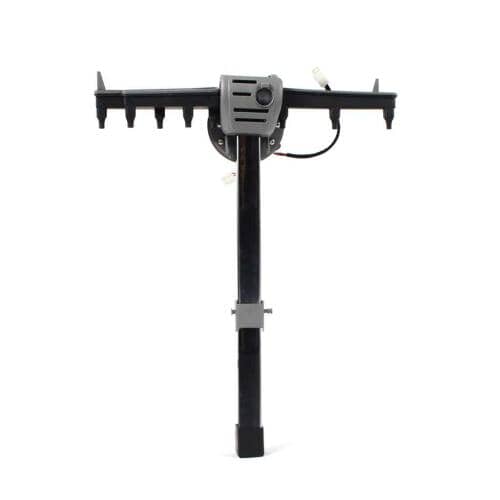

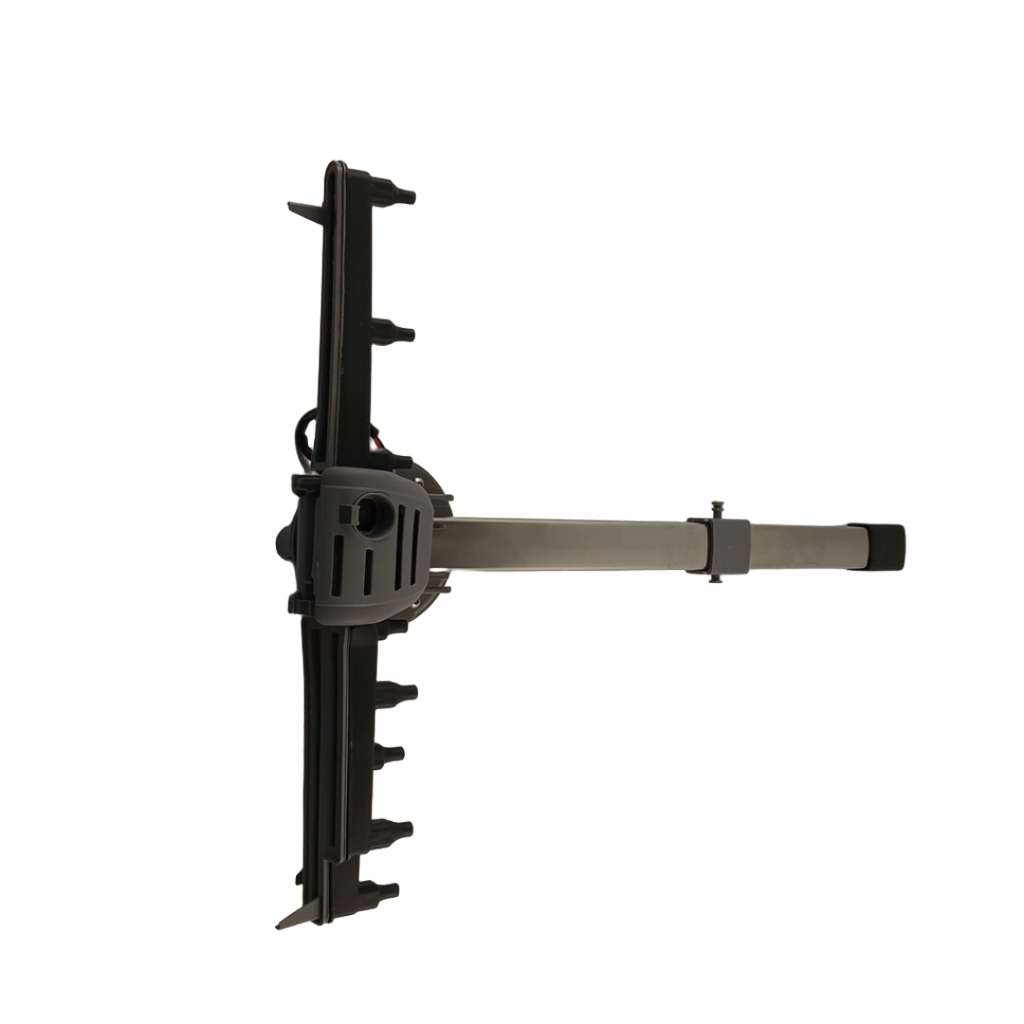

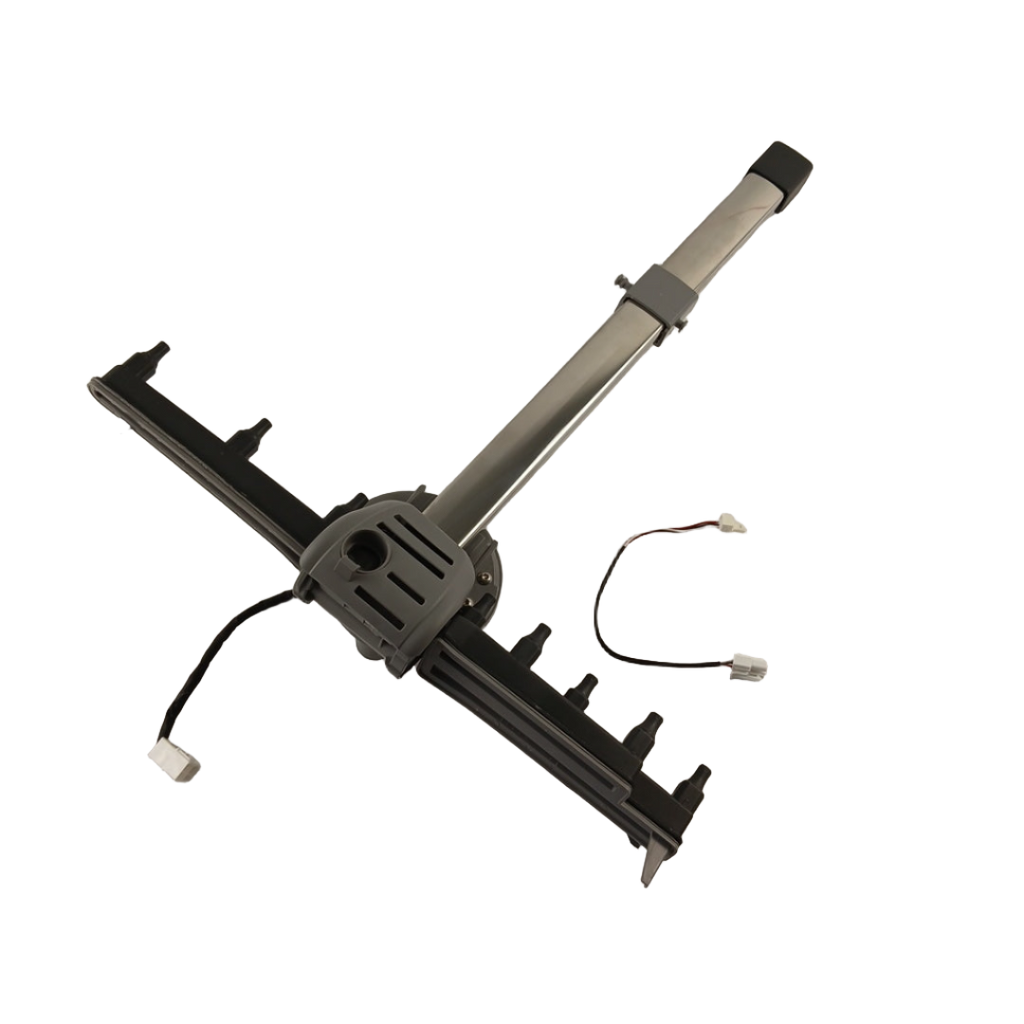

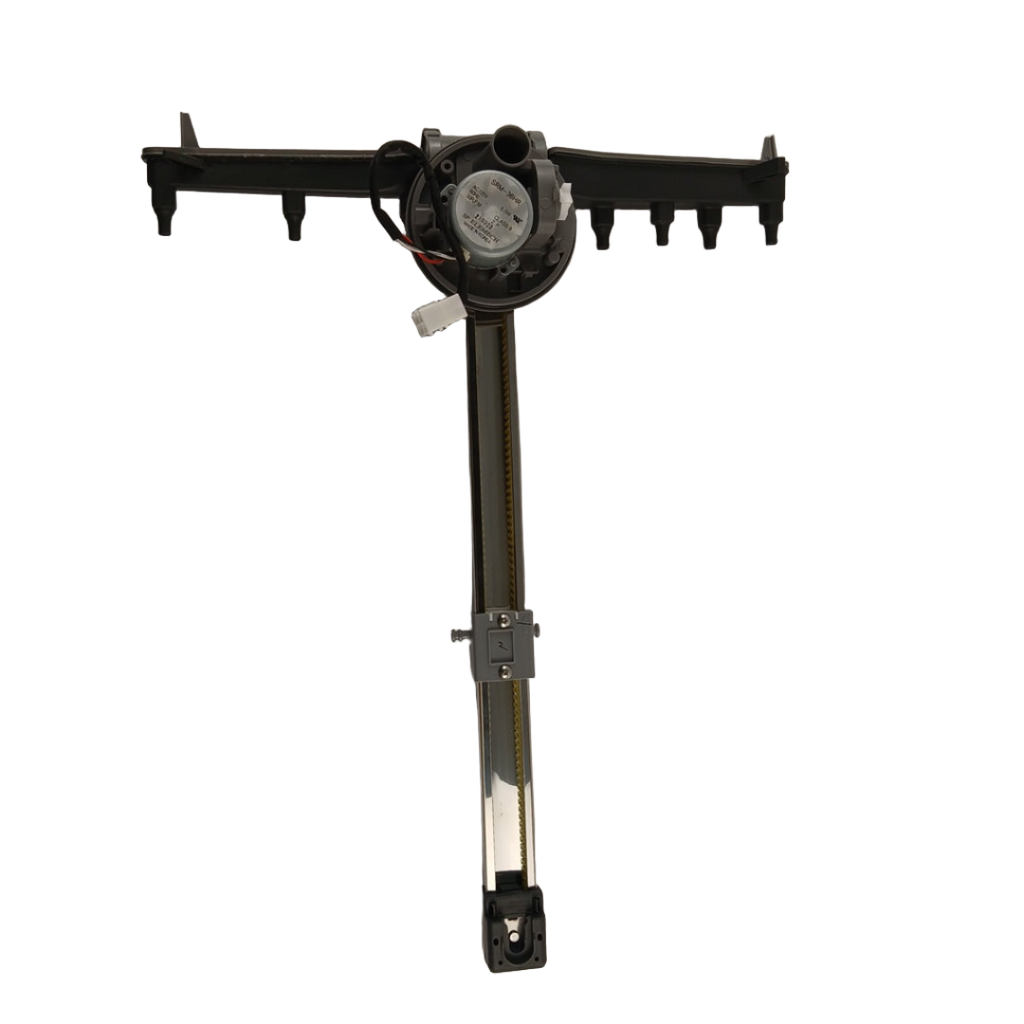

📦 Part Details
- Part Number: DD97-00484D
- Type: Dishwasher Motion Wash Arm Module (Motorized Rotating Spray Arm Assembly)
- Brand: Samsung (Genuine OEM)
- Application: Samsung Motion Wash system — motorized multi-directional spray arm
- Condition: New OEM
While the wash arm module is out, inspect the spray nozzles on the upper and lower fixed spray arms for clogs — mineral deposits and debris buildup in the nozzles reduce water pressure to the motion arm and can cause premature module wear. Clean or replace clogged arms at the same time for best results.
⚙️ Installation
Skill Level: MODERATE — 20–35 minutes. Disconnect power before servicing. Remove the lower rack to access the motion wash arm module mounted in the tub floor. Disconnect the electrical connector and water supply fitting, unclip or unscrew the module from its mount, and swap in the new unit. Reconnect the harness and water fitting, reinstall the rack, restore power, and run a wash cycle to confirm full arm sweep and even coverage.
✓ Compatible Models
Compatible with select Samsung dishwasher models equipped with the Motion Wash system. Contact us to verify your model number before ordering.
✓ Model-Specific Repair Pages
💡 Pro Tip
The motion wash arm module receives water through a dedicated supply fitting at its base. If this fitting is cracked, clogged with mineral scale, or not fully seated, the arm will have insufficient pressure to complete its sweep — mimicking a failed module. Inspect and clean the fitting before replacing the full module assembly. If the fitting is clear and the arm still won't sweep, the module itself is the fault.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
