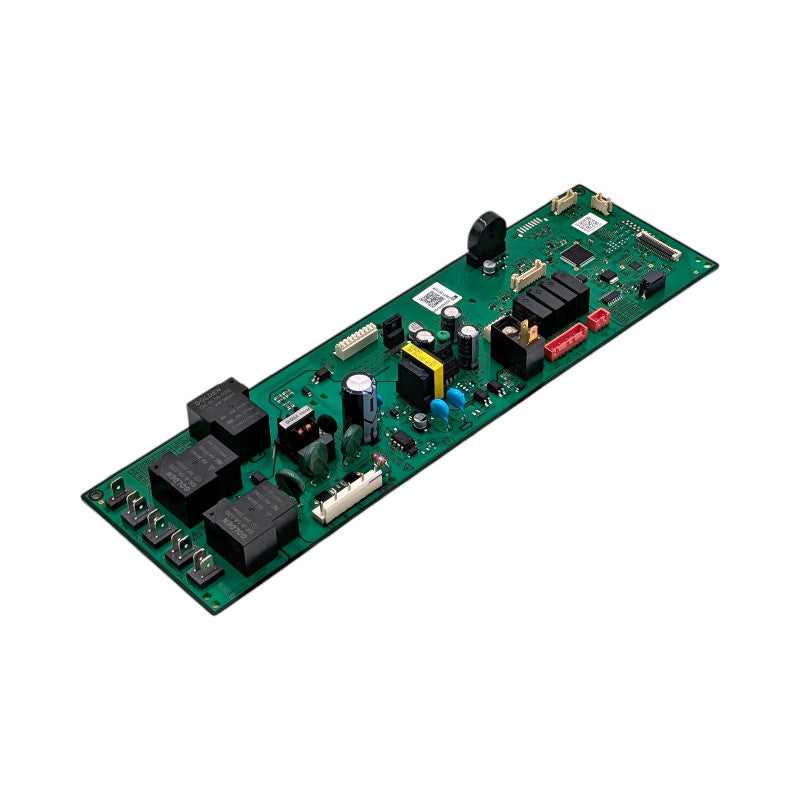

When your Samsung range stops heating, throws error codes, or the display goes unresponsive, the main control board is one of the first components to suspect. Part number DG94-05220F is the current OEM replacement for the original DG94-04041F control board — a direct, drop-in substitute that restores full range functionality without rewiring or modification. This PCB assembly manages the core cooking functions of your Samsung range, including burner ignition sequencing, oven temperature regulation, and the user interface display.

✓ Model-Specific Repair Pages

Find your Samsung range model below for a confirmed parts list:

Don't see your model? Contact us — we'll confirm compatibility for you.

The DG94-05220F is a PCB (printed circuit board) assembly that serves as the electronic brain of your Samsung range. It processes inputs from the control panel, manages power delivery to heating elements, coordinates ignition timing for gas burners, and communicates fault codes when sensors detect out-of-range conditions. When this board fails — due to power surges, heat stress, or component fatigue — the range may behave erratically or stop functioning entirely. DG94-05220F supersedes the earlier DG94-04041F and is the current active OEM part number for this application.

✓ Common Symptoms Fixed

• Oven not heating or failing to reach set temperature
• Range display blank, frozen, or showing garbled characters
• Error codes appearing on the display (e.g., SE, E-08, C-d0)
• Burners not igniting or igniting intermittently
• Oven cycling off prematurely during baking or broiling
• Control panel buttons unresponsive or behaving erratically

✓ Key Features & Specifications

• OEM part number: DG94-05220F
• Replaces: DG94-04041F
• Compatible brand: Samsung
• Appliance type: Range (electric and gas models)
• Component: Main PCB control board assembly
• Compliance: RoHS
• Installation type: Direct drop-in replacement

✓ Buying Options

OEM / New — Genuine Samsung original equipment manufacturer part. Identical to the factory-installed control board. Meets all original electrical and functional specifications. Best choice when you need a guaranteed factory-spec replacement.

✓ Replacement Part Numbers

DG94-05220F (OEM) | DG94-04041F (superseded — replaced by DG94-05220F)

✓ Installation Tips

• Disconnect power to the range at the breaker before beginning any repair
• The main control board is typically located behind the rear panel or inside the control console at the back of the range
• Take a photo of all wire harness connections before disconnecting — connector positions vary by model
• Carefully disconnect each harness connector by pressing the release tab — do not pull on the wires
• Transfer any mounting standoffs or brackets from the old board to the new DG94-05220F
• Reconnect all harnesses, restore power, and run a test cycle to confirm normal operation
• If error codes persist after installation, perform a hard reset by unplugging the range for 60 seconds

✓ Compatible Models

DG94-05220F is compatible with select Samsung range models. Please verify your model number on the rating plate (typically inside the oven door frame or on the back of the unit) before ordering. Contact us if you need compatibility confirmation.

✓ Frequently Asked Questions

Is DG94-05220F a direct replacement for DG94-04041F?
Yes — DG94-05220F is the current OEM superseding part number for DG94-04041F. It is a direct drop-in replacement with identical connectors and mounting points.

What Samsung range models use DG94-05220F?
This board is used across multiple Samsung NE63 and NE59 series ranges. Browse the model pages above or contact us to confirm fit for your specific model number.

Will replacing the control board fix my Samsung range error codes?
In many cases, yes — error codes like SE, E-08, or C-d0 are triggered by control board failures. However, some error codes point to sensor or wiring issues. We recommend confirming the board is the root cause before ordering. Our team can help — contact us for guidance.

How long does installation take?
Most technicians complete this repair in 30–60 minutes. Basic hand tools are required. Always disconnect power before beginning.

Is this an OEM part or aftermarket?
DG94-05220F is a genuine OEM Samsung part, identical to the factory-installed component.
