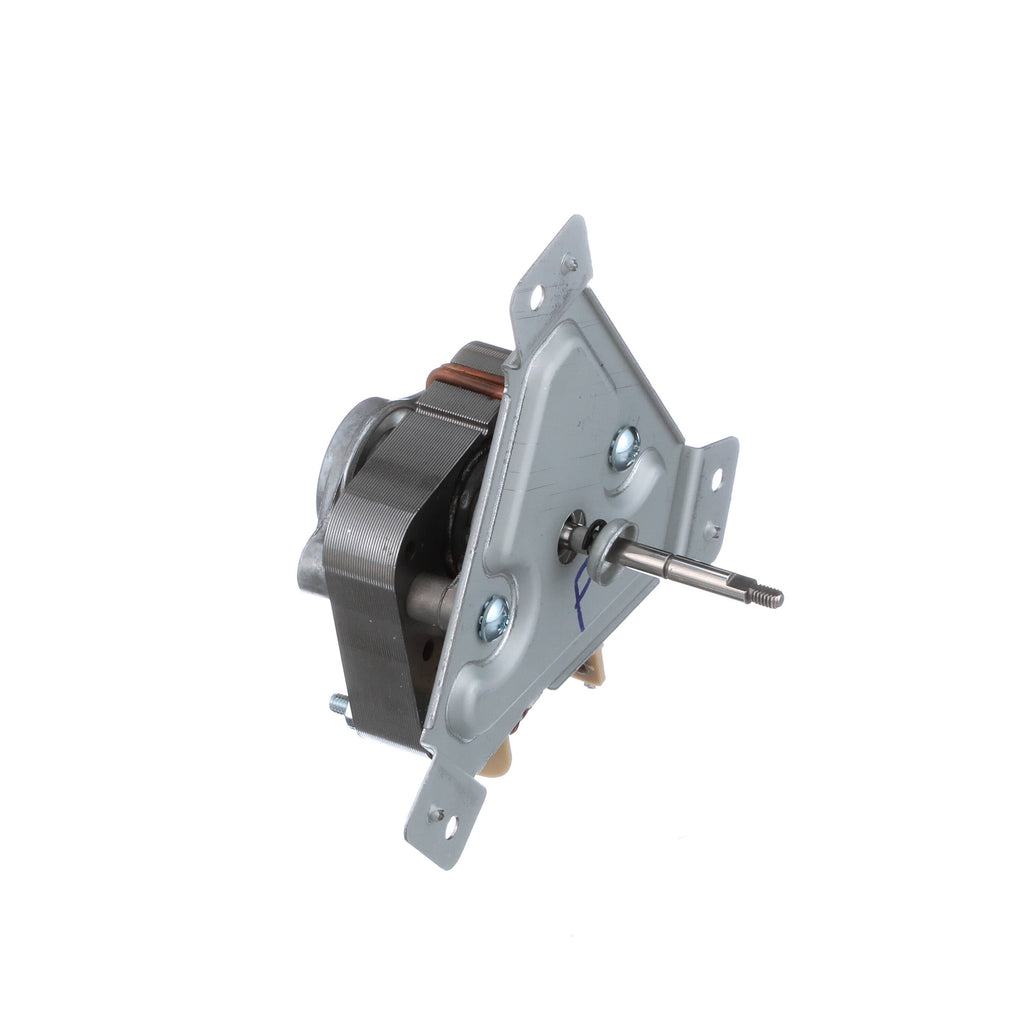

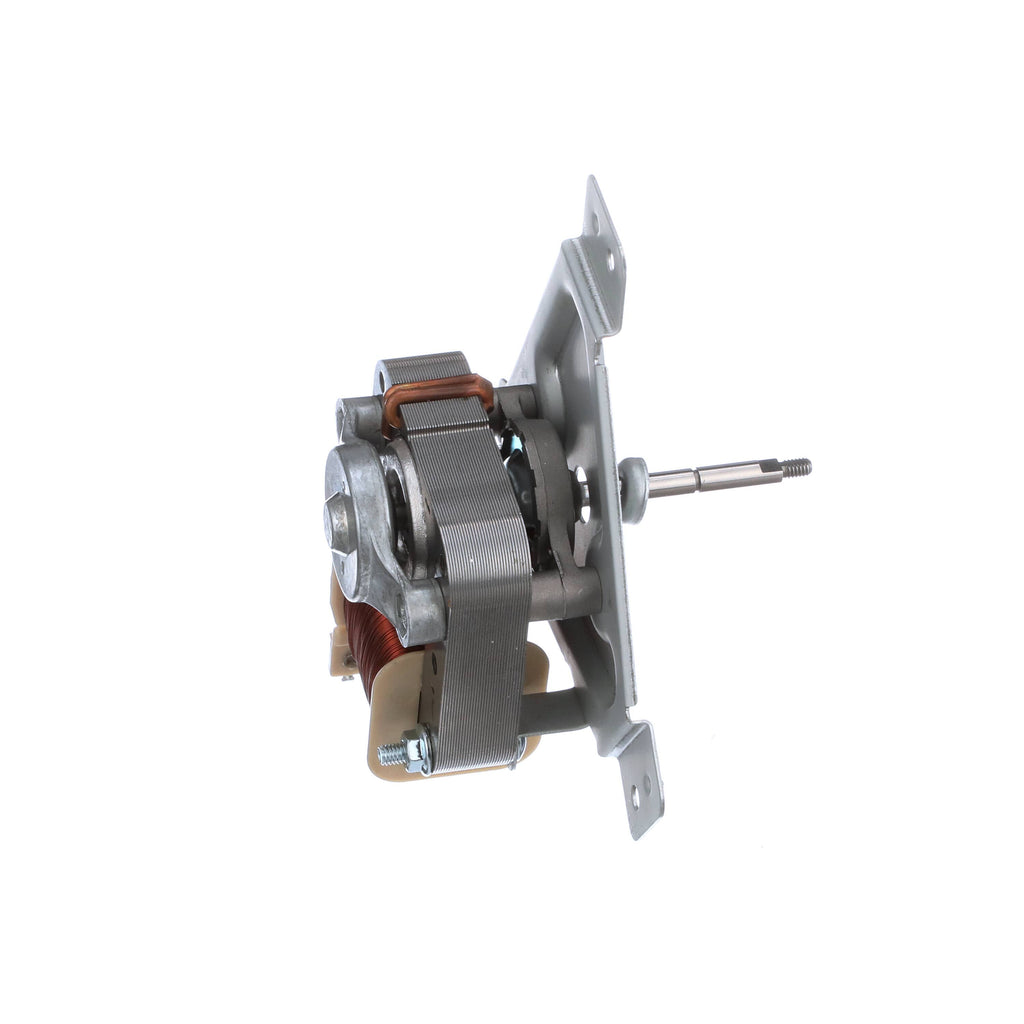

Samsung Range Convection Fan Motor Assembly DG96-00110F

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Convection cooking produces uneven browning or inconsistent results.
• Scraping, scratching, growling, or unusually loud fan noise occurs during convection operation.
• Little or no airflow is felt during a convection cycle.
• The fan blade is difficult to turn by hand with power disconnected, which can indicate motor or bearing trouble.

Check Before Replacing

• Confirm the appliance is in a convection cooking mode and that the fan is expected to operate for that cycle.
• With power disconnected and the oven completely cool, visually inspect the fan area for a loose, obstructed, or rubbing blade.
• With power disconnected, carefully check whether the fan blade turns freely without forcing it; do not operate the appliance with panels removed.
• Inspect the motor wiring terminals and harness for looseness, visible damage, or discoloration.
• A qualified technician may test the isolated motor for electrical continuity according to the applicable Samsung service documentation; continuity alone does not prove the complete circuit is functional.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power and allow the oven to cool completely before servicing.
• Access the motor only as specified by the appliance's service documentation; the motor is typically accessed from the rear of the appliance or through designated panels.
• Before disconnecting wiring, document or identify the original terminal connections so the replacement is wired the same way.
• Transfer or reinstall only the original compatible fan blade, fasteners, and related hardware because the part listing states that additional hardware and fan blades are not included.
• After reassembly, restore power and verify smooth convection-fan operation while keeping hands and tools clear of moving parts.

Verified Compatible Models

NE58H9970WS/AA-0000, NE58H9970WS/AA-0001, NE58H9970WS/AA-0002, NE58H9970WS/AC-0000, NE58H9970WS/AC-0001, NE58H9970WS/AC-0002, NE58K9430/AA-0000, NE58K9430/AA-0001, NE58K9430SS/AA-0001, NE58K9560WS/AA-0000, NE58K9560WS/AA-0001, NE58K9560WS/AA-0002, NE58K9560WS/AA-0003, NE58K9560WS/AA-0004, NE58K9560WS/AC, NE58K9850WG/AA-0000, NE58K9850WG/AA-0001, NE58K9850WG/AA-0002, NE58K9850WG/AA-0004, NE58K9850WG/AC, NE58K9850WS/AC-0001, NE58K9850WS/AC-0005, NE58R9430SG/AC, NE58R9431SG/AA-0000, NE58R9431SG/AA-0001, NE58R9431SS/AA-0000, NE58R9431SS/AA-0001, NE58R9431ST/AA-0000, NE58R9431ST/AA-0001, NE58R9560WG-0000, NE58R9560WG-0001, NE59M6850SG/AA-0000, NE59M6850SG/AA-0001, NE59M6850SG/AA-0003, NE59M6850SS/AA-0000, NE59M6850SS/AA-0001, NE59M6850SS/AA-0002, NE59M6850SS/AA-0003, NQ70M6650DS, NQ70M9770DS/AA, NV51K6650DS/AA-0000, NV51K6650DS/AA-0001, NV51K6650SG/AA, NV51K6650SS/AA-0000, NV51K6650SS/AA-0001, NV51K7770DG/AA, NV51K7770DS/AA, NV51K7770SG/AA, NV51K7770SS/AA, NV51M9770DM/AA, NV51M9770DS/AA, NV51M9770SS/AA, NE59M6850SG/AA-0004, NE59M6850SS/AA-0004, NE59M6850SS/AA-0005, NE59M6850SG/AA-0002, NQ70M9770DM/AA, NE58K9430SS/AA-0000, NE58K9850WG/AA-0003, NV51K6650DG/AA, NV51M9770SM/AA, DOB30M977DM/DA, DOB30M977DS/DA, DOB30M977SM/DA, DOB30M977SS/DA, DOPA30M9CNM/KD, DOPA30M9CNS/KD, NE58H9970WS/AA, NE58H9970WS/AC, NE58K9430/AA, NE58K9430SS/AA, NE58K9560WS/AA, NE58K9850WG/AA, NE58K9850WS/AA, NE58K9850WS/AC, NE58R9431SG/AA, NE58R9431SS/AA, NE58R9431ST/AA, NE58R9560WG, NE58R9560WG/AA, NE59J7750WS/AA, NE59J7750WS/AC, NE59J7850WG/AA, NE59J7850WG/AC, NE59J7850WS/AA, NE59J7850WS/AC, NE59M6850SG/AA, NE59M6850SS/AA, NQ70M6650DG/AA, NQ70M7770DG/AA, NQ70M7770DS/AA, NV51K6650DS/AA, NV51K6650SS/AA, NY58J9850WS/AA, NY58J9850WS/AC

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
