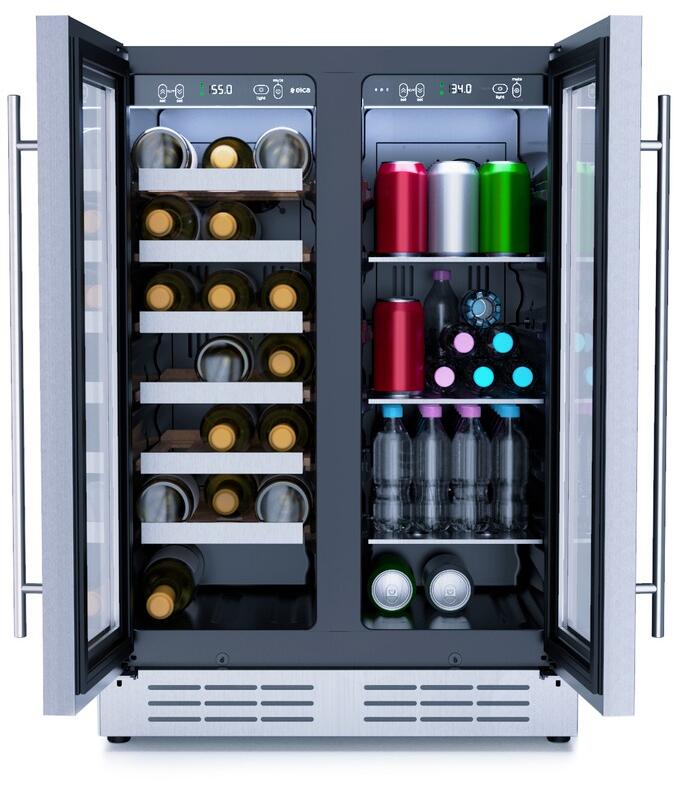

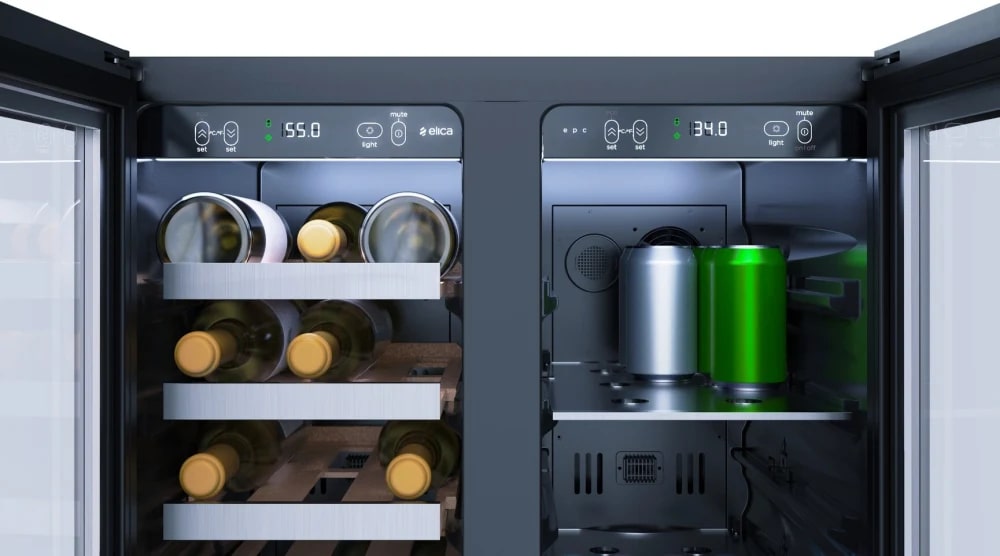

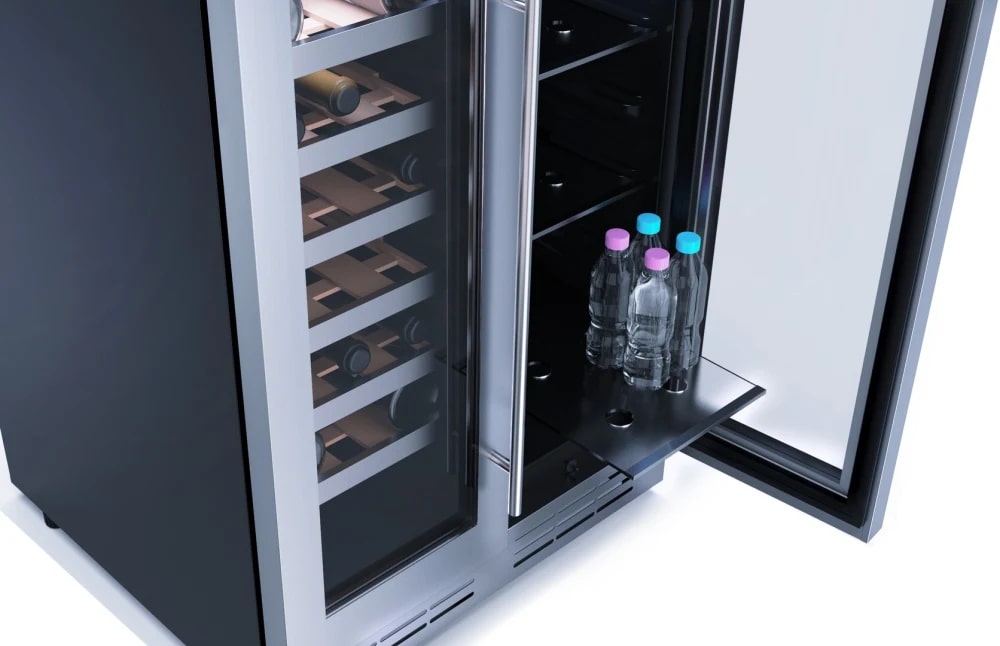

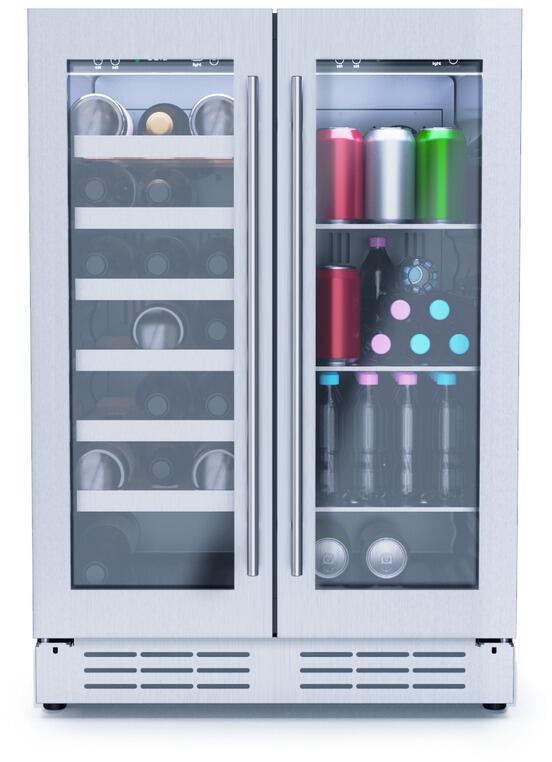

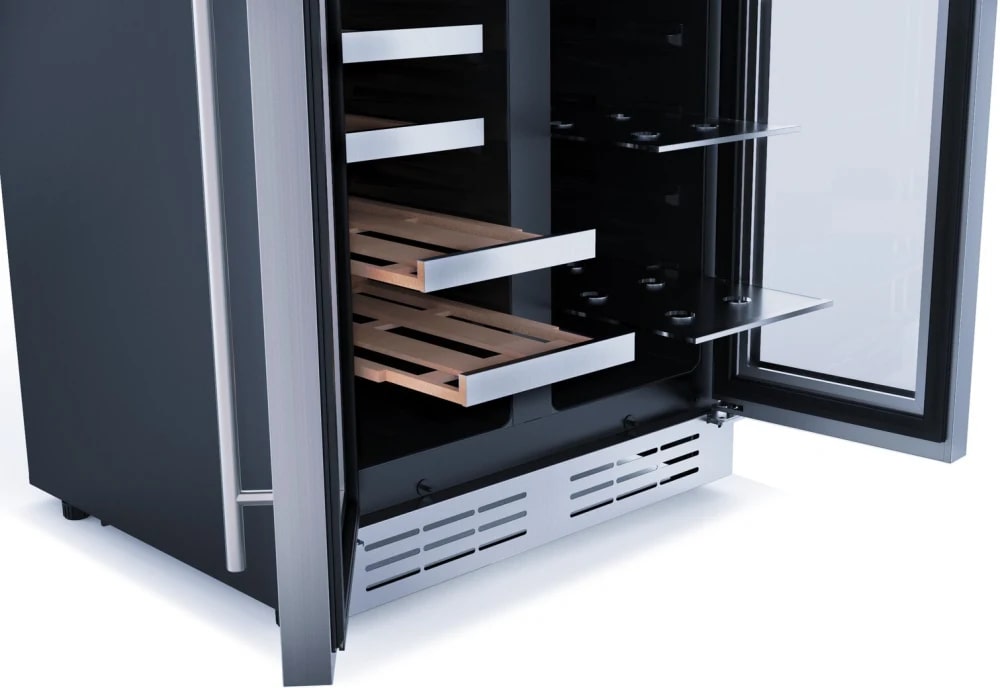

Elica Undercounter beverage and wine refrigerator Riserva Beverage & Wine Center – French Door Dual Zone EBF52SS1

Elica Riserva 24-inch stainless-steel French-door beverage and wine center with two independently cooled storage zones and 4.8 cu. ft. capacity.

Is This the Right Part?

Check Before Replacing

• Verify the appliance model label shows EBF52SS1 before ordering documentation or service parts.
• Confirm the installation location supports the documented 120 V / 60 Hz electrical requirement and approximately 24-inch width.
• Check that the door-open alarm, interior lighting, temperature display, and both cooling zones operate normally.

Pro Tip

Part Details

Key Features

• RISERVA series
• French-door design
• Dual cooling zones
• 4.8 cu. ft. / 135 L total capacity
• Up to 60 cans in the beverage zone
• Up to 21 wine bottles in the wine zone, rated at 25 oz. bottles in the specification documentation,

Installation Notes

• Documented as suitable for built-in undercounter or freestanding installation.
• Nominal electrical requirement is 120 V / 60 Hz; specification documentation identifies a 15 A circuit requirement.
• Approximate dimensions are 23 7/16 inches wide by 22 5/16 inches deep by 34 1/4 inches high in the specification documentation; verify the current installation drawing before installation.
• Use the manufacturer installation manual for clearance, leveling, door, and ventilation requirements.

Verified Compatible Models

EBF52SS1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
