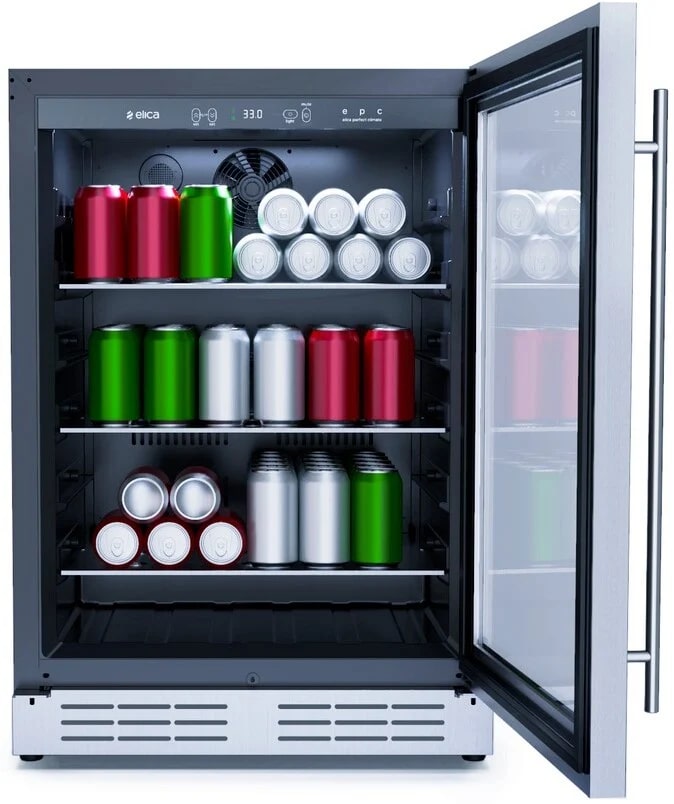

Elica Beverage center refrigerator Riserva single-door, single-zone beverage center EBS51SS1

24-inch built-in or freestanding single-zone beverage center with 4.8 cu. ft. capacity for storing beverages; it has no freezing capability.

Is This the Right Part?

Check Before Replacing

• If the unit does not operate, verify that it is connected, switched on, and that the circuit breaker/fuse is not tripped.
• If the unit is not cold enough, check the temperature setting, clear and clean the ventilation opening, and inspect/clean the condenser as needed.
• If the display shows E1 or E2, the manual identifies an air-temperature-sensor failure and directs the user to contact service.
• If vibration or excessive noise occurs, verify that the appliance is level using its adjustable feet.

Pro Tip

Part Details

Key Features

• 4.8 cu. ft. (135 L) capacity
• Single-zone temperature range of 34 to 65°F (1 to 18°C)
• Built-in or freestanding installation

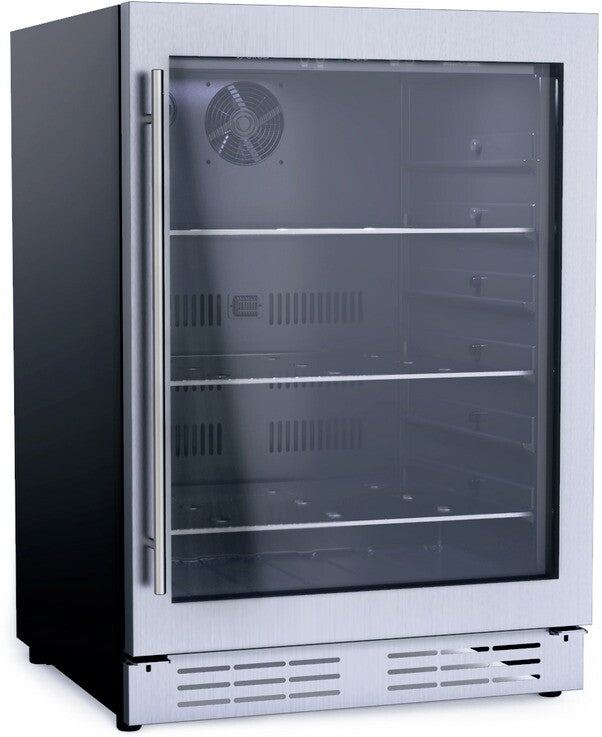

• 304 stainless-steel and tinted dual-pane Low-E argon-filled glass door

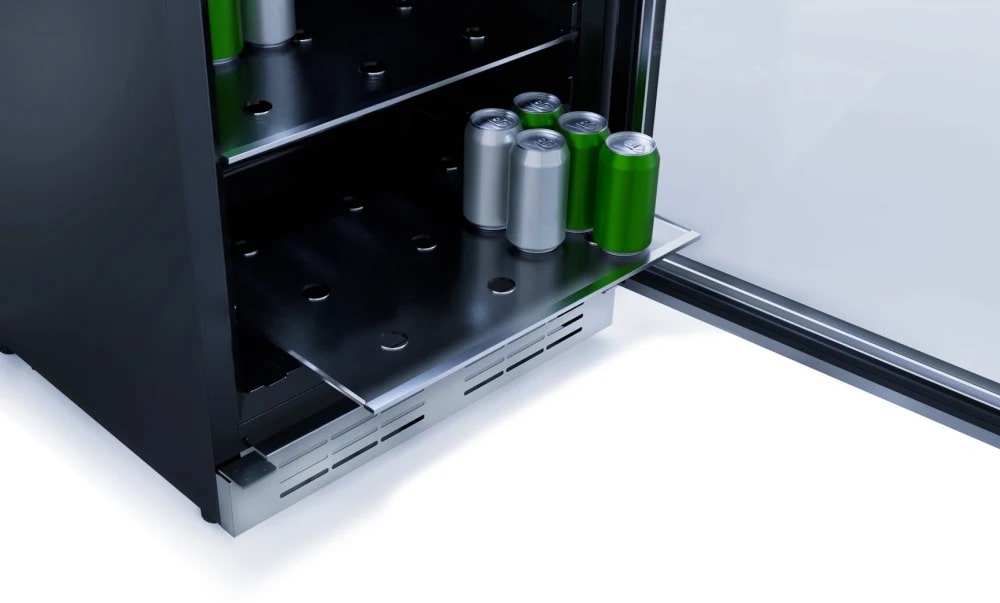

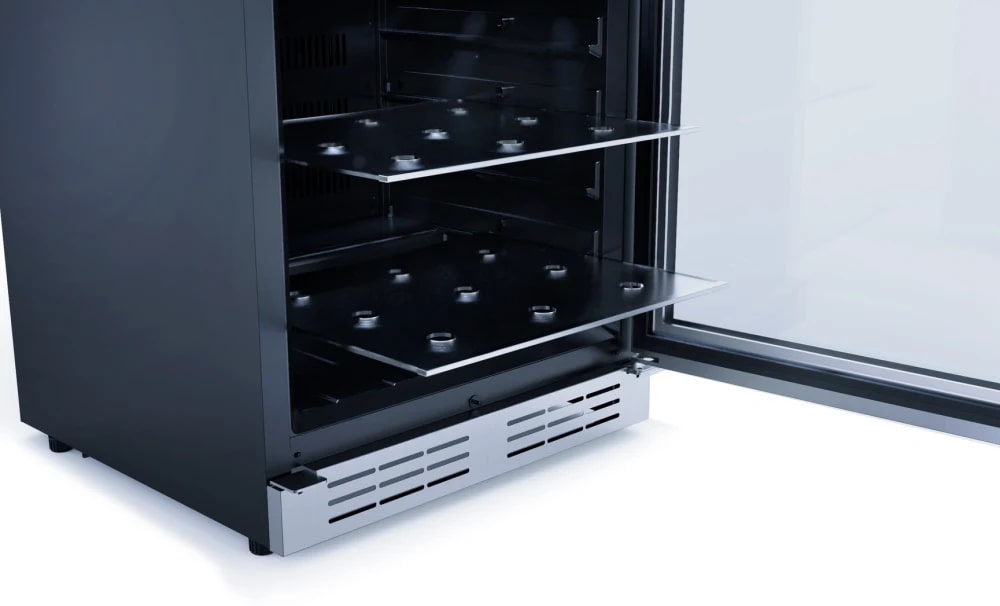

• Three adjustable slide-out tempered-glass shelves with metal front trim
• Reversible door and concealed hinge design (manual says unit is delivered with left-side door opening) [sic]

Installation Notes

• Designed for freestanding or fully recessed built-in installation.
• Before connecting power after transport, allow the unit to stand upright for approximately two hours.
• Use an individual, properly installed grounded wall outlet matching the appliance rating; do not remove the grounding prong.
• For recessed installation, the manual specifies a minimum 600 mm W × 600 mm D × 865 mm H space and a 6 mm (1/4 in.) ventilation gap above the unit.
• Keep ventilation openings clear of obstruction.

Verified Compatible Models

EBS51SS1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
