Elica Wine cellar / undercounter wine refrigerator Riserva 24-inch wine cellar, single door, dual zone EWS52SS1

Elica Riserva undercounter or freestanding wine cellar with a single stainless-steel and tinted-glass door, dual temperature zones, and 4.8 cu. ft. capacity.

Is This the Right Part?

Check Before Replacing

• Verify the appliance has a 110–120 V power supply and is connected to a suitable 15 A circuit.
• Check that the upper zone is set within 40–50°F and the lower zone within 50–64°F.
• Confirm that the door closes fully and that the door-open alarm is not continuously active.
• Check that ventilation clearances and installation orientation follow the Elica installation instructions.

Pro Tip

Part Details

Key Features

• 4.8 cu. ft. (135 L) total volume

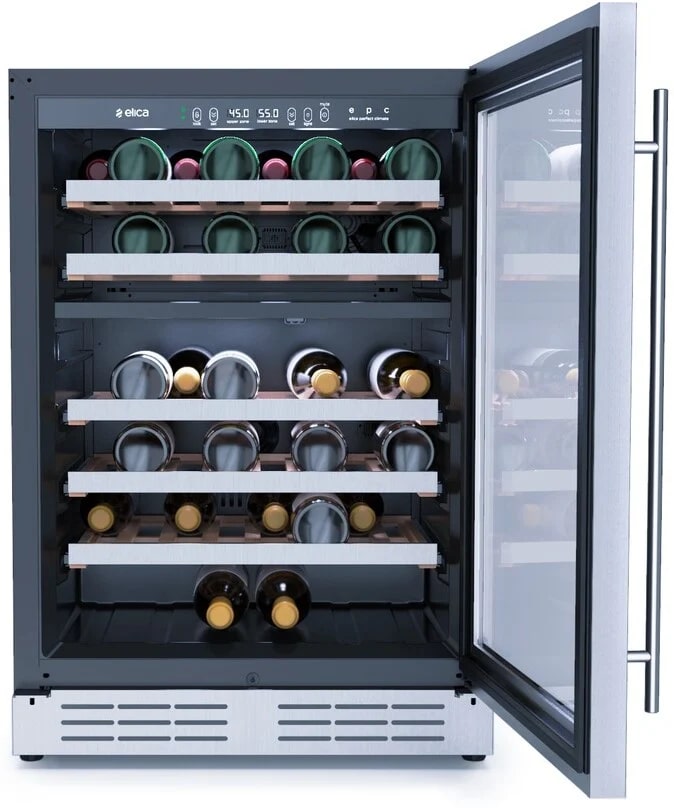

• Dual temperature zones

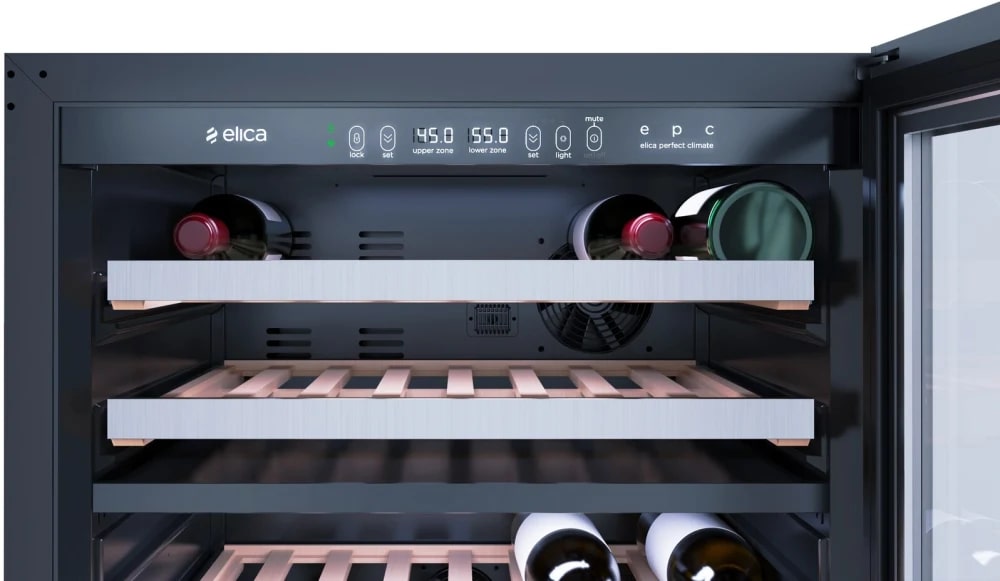

• Upper zone: 16-bottle capacity, 40–50°F
• Lower zone: 36-bottle capacity, 50–64°F

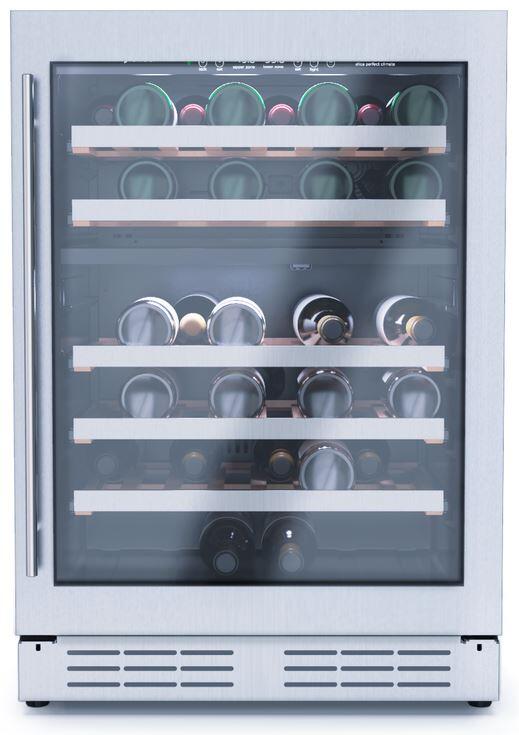

• Single door with tinted, dual-pane, low-E argon-filled glass
• 304 stainless-steel door finish with black cabinet and interior finish capabilities documented by Elica specification sheet

Installation Notes

• Suitable for built-in or freestanding installation.
• Standard width is 24 inches; Elica documents dimensions of approximately 23 7/16 inches wide by 23 7/16 inches deep by 33 7/8 inches high in the current specification sheet.
• Requires 110–120 V, 60 Hz power and a minimum 15 A circuit.

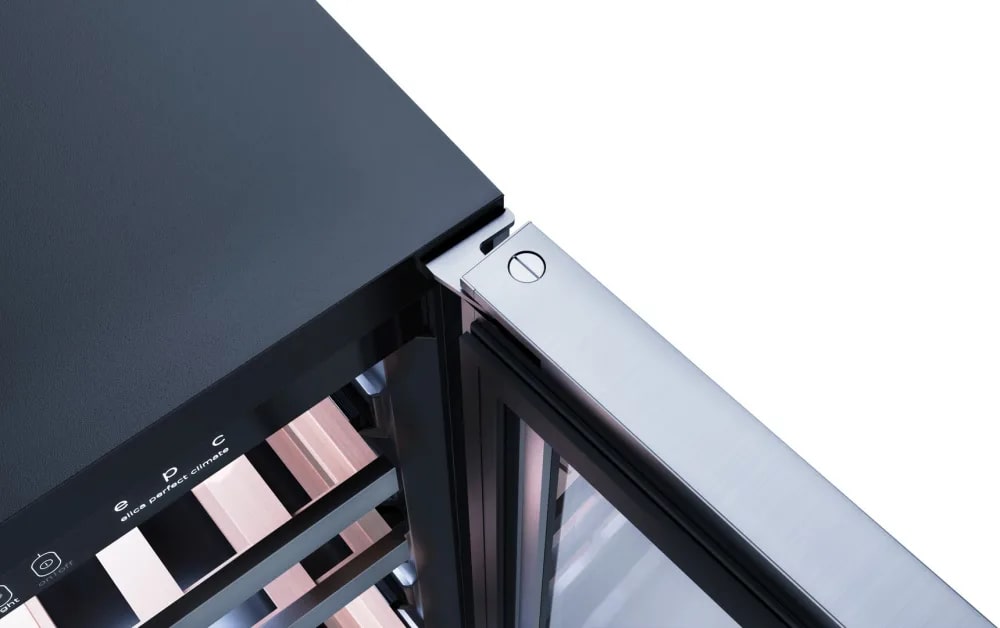

• Reversible door; plan hinge-side clearance before securing the unit.
• Disconnect electrical power before service or installation work, following the Elica instruction manual.

Verified Compatible Models

EWS52SS1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
