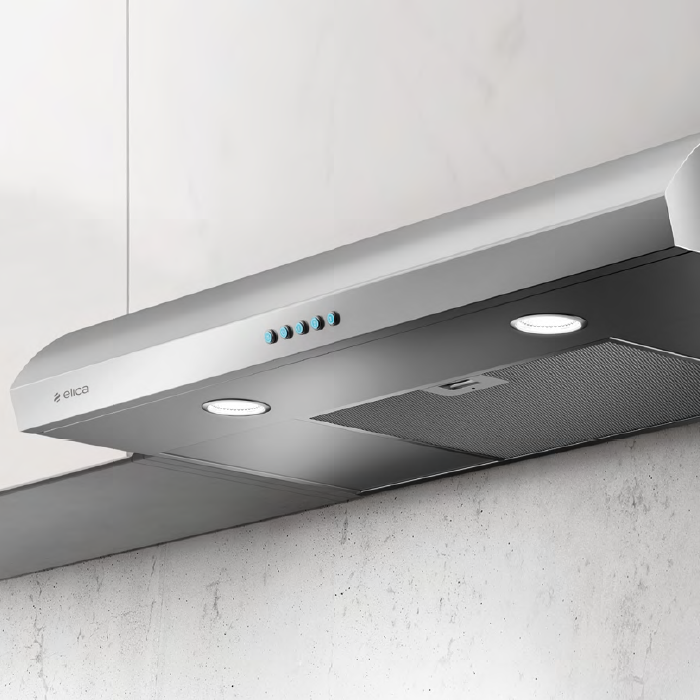

Elica Nemi 30-inch under-cabinet range hood, stainless steel ENM230S1, Replaces ENM230SS

Elica Nemi 30-inch stainless-steel under-cabinet residential range hood with a 280 CFM internal blower.

Is This the Right Part?

Check Before Replacing

• Operate the light control and each of the three blower-speed controls to confirm the hood responds.
• If the hood does not operate, check whether the household circuit breaker has tripped or a fuse has blown.
• Inspect and clean the grease filter; the installation guide specifies monthly cleaning with non-aggressive detergent, by hand or on a low-temperature, short dishwasher cycle.

Pro Tip

Part Details

Key Features

• 30-inch-wide stainless-steel under-cabinet hood
• 280 CFM internal, three-speed blower
• Two 2.1 W, 4000 K LED lights
• Dishwasher-safe anodized aluminum mesh filter
• Convertible ducted or recirculating installation with optional kit
• 3 1/4 x 10-inch rectangular or optional 7-inch round duct transition compatibility

Installation Notes

• Disconnect power at the service panel before installation, servicing, or cleaning.
• The supplied rectangular 3 1/4 x 10-inch transition includes a backdraft damper; the 7-inch round kit is optional.
• For gas cooktops, install with the hood bottom at least 27 inches above the cooking surface; for electric cooktops, install 24 to 30 inches above the cooking surface.
• The installation guide states that installation and electrical wiring must be performed by qualified persons in accordance with applicable codes.
