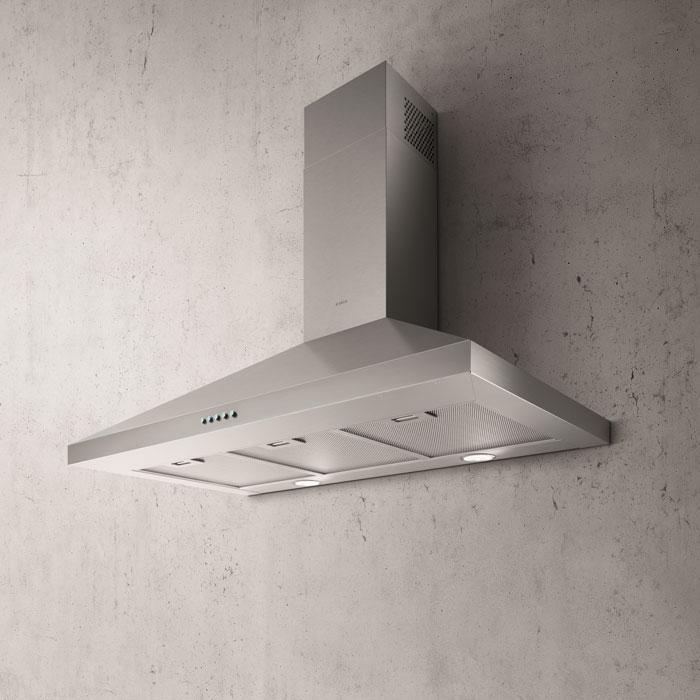

Elica Volterra 30-Inch Wall-Mount Chimney Range Hood EVL430S2

Elica Volterra 30-inch stainless-steel wall-mount chimney range hood with a 3-speed internal blower for ducted exhaust or optional recirculating operation.

Is This the Right Part?

Check Before Replacing

• Confirm the blower turns on and responds to the three speed-control buttons.
• Inspect the grease filters for accumulated grease; the manual specifies cleaning them monthly with non-aggressive detergent.
• For a ducted installation, verify the back-draft dampers operate properly.

Pro Tip

Part Details

Key Features

• 30-inch width
• Stainless-steel finish
• 400 CFM, 3-speed internal blower
• Backlit electronic push-button controls
• Two 2.1 W, 3000 K LED lights
• Dishwasher-safe anodized aluminum mesh grease filters; three filters on the 30-inch model according to the specification sheet","6-inch round top duct transition with back-draft damper","Convertible ducted or recirculating installation with kit sold separately","120 V, 60 Hz, 265 W electrical rating","Comfort Series"],

Installation Notes

• Disconnect power before installation, cleaning, or service.
• For ducted installation, use the specified 6-inch round venting; the installation manual says not to use flexible ducting.
• The manual specifies at least two people for installation.
• For recirculating installation, install the specified charcoal filters over the metal grease filters.
• The installation manual lists minimum installation heights of 27 inches above gas cooktops and 24 inches above electric cooktops, and recommends no more than 36 inches above the cooking surface for effective capture.
