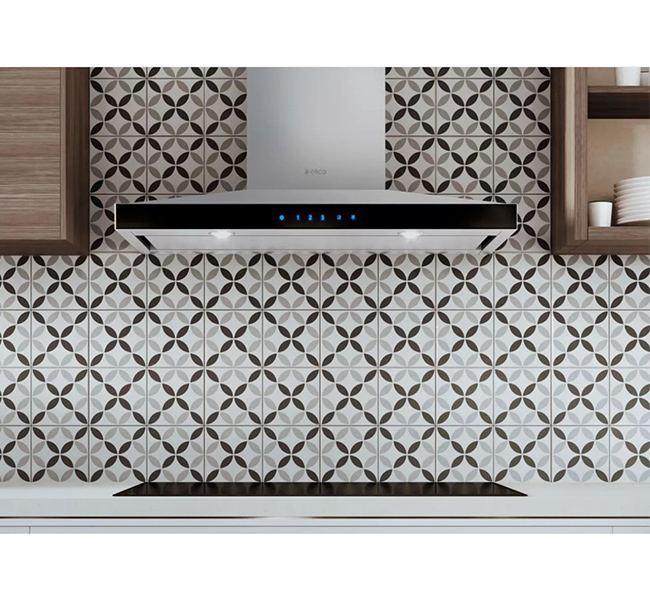

Elica Lugano 30-inch wall-mount range hood ELG630S3

Elica Lugano 30-inch wall-mount hood with an internal 600 CFM blower, stainless-steel/black-tempered-glass finish, and convertible ducted or recirculating installation with the required kit.

Is This the Right Part?

Check Before Replacing

• Verify that the blower and touch controls operate at all three speeds and Boost.
• Inspect the dishwasher-safe aluminum mesh filters for grease accumulation and clean them as needed.
• Verify that both dimmable LED lights operate.

Pro Tip

Part Details

Key Features

• 30-inch width
• Internal 600 CFM blower with 3 speeds plus Boost
• Stainless steel with black tempered glass finish
• Multi-function electronic black-glass touch display
• Two 2.1 W, 4000 K premium dimmable LED lights
• Dishwasher-safe anodized aluminum mesh filters with perimeter aspiration","6-inch round top discharge transition","Ducted or recirculating installation with separately sold kit","1.3–6.8 sones"],

Installation Notes

• Disconnect power before installation or service.
• For ducted installation, use a 6-inch round duct and vent outdoors; the manual specifies metal ductwork and advises against flexible ducting.
• The manual specifies a minimum hood-to-cooktop distance of 30 inches for gas ranges and 24 inches for electric ranges.
• Elica specifies the hood is for residential/household use.
