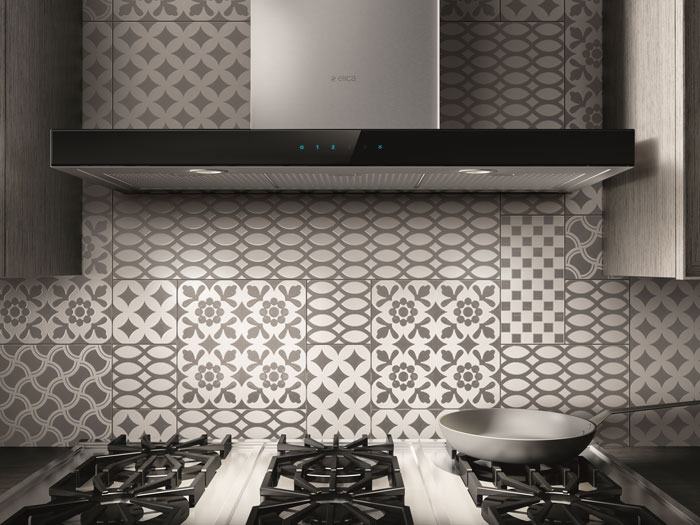

Elica Mezzano 30-inch wall-mount chimney range hood EMZ630S3

Elica Mezzano Techne Series 30-inch stainless-steel wall-mount chimney range hood with black tempered-glass controls, an internal 600 CFM blower, and convertible ducted/recirculating installation.

Is This the Right Part?

Check Before Replacing

• Verify the appliance nameplate or installation documentation shows model EMZ630S3 before ordering parts or accessories.
• Confirm the installation uses a 6-inch round top-discharge duct connection when configured for ducted operation.
• Check that the stainless-steel microhole grease filter is correctly installed and can be removed for cleaning.
• If airflow is reduced, inspect the grease filter and duct path for obstruction before assuming a blower fault.

Pro Tip

Part Details

Key Features

• 30-inch width
• Stainless steel finish with black tempered glass
• 600 CFM internal blower performance
• Three blower speeds plus boost
• Capacitive-touch glass controls
• Two dimmable premium LED lights, 2.1 W each, 4000 K color temperature mentioned in the specification sheet

Installation Notes

• Supports ducted or recirculating installation; the installation kit is sold separately for recirculating use.
• Uses a 6-inch round top-discharge duct transition.
• Elica lists KIT0102875 as the recirculating kit and KIT02785 as the long chimney extension.
• Disconnect electrical power at the service panel before wiring or servicing, as stated in the installation manual.
• Installation must comply with applicable local codes.

Verified Compatible Models

EMZ630S3

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
