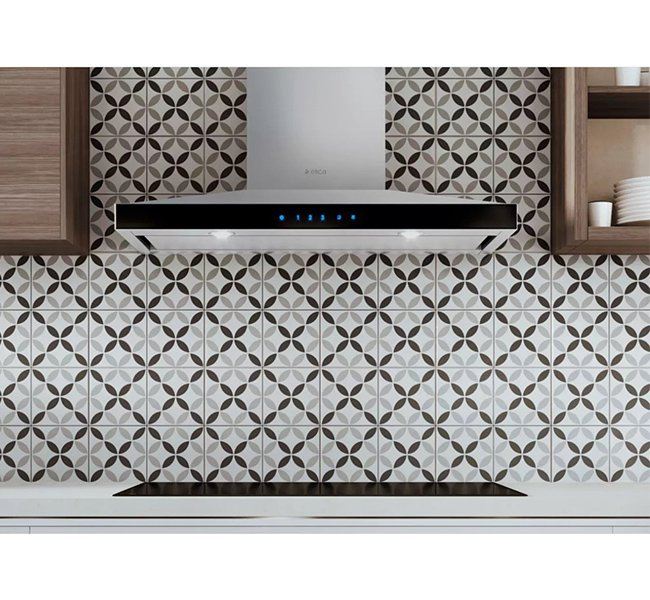

Elica Lugano 36-inch wall-mount range hood ELG636S3

36-inch stainless-steel wall-mount convertible range hood with black glass, internal 600 CFM blower, touch controls, LED lighting, and perimeter aspiration.

Is This the Right Part?

Common Symptoms

• Blower does not operate or operates at reduced capacity
• Ventilation is weak despite proper installation and clean filters
• Touch controls do not respond
• LED hood lights do not illuminate
• Excessive operating noise compared with normal operation

Check Before Replacing

• Verify the hood has electrical power and that the branch-circuit breaker has not tripped.
• Check that the aluminum mesh filters are installed correctly and are clean.
• Confirm the duct path is open and uses the documented 6-inch round transition when ducted.
• Test the blower at each available speed and boost setting using the touch controls.

Pro Tip

Part Details

Key Features

• 36-inch width
• 600 CFM airflow
• 3-speed blower with boost
• Internal blower
• Convertible with kit
• 6-inch round duct transition when ducted or converted as documented by Elica specifications 1.3–6.8 sones in the Elica comparison data and retailer documentation, not independently verified in the official product page output

Installation Notes

• Disconnect electrical power at the service panel before installation or servicing.
• Installation must comply with applicable local codes.
• For wall mounting, use the supplied mounting template and ensure mounting screws are secured into suitable structural support as specified in the installation manual.
• Use the documented 6-inch round duct transition for ducted installation.
• A recirculating installation requires the separately specified recirculating kit.
