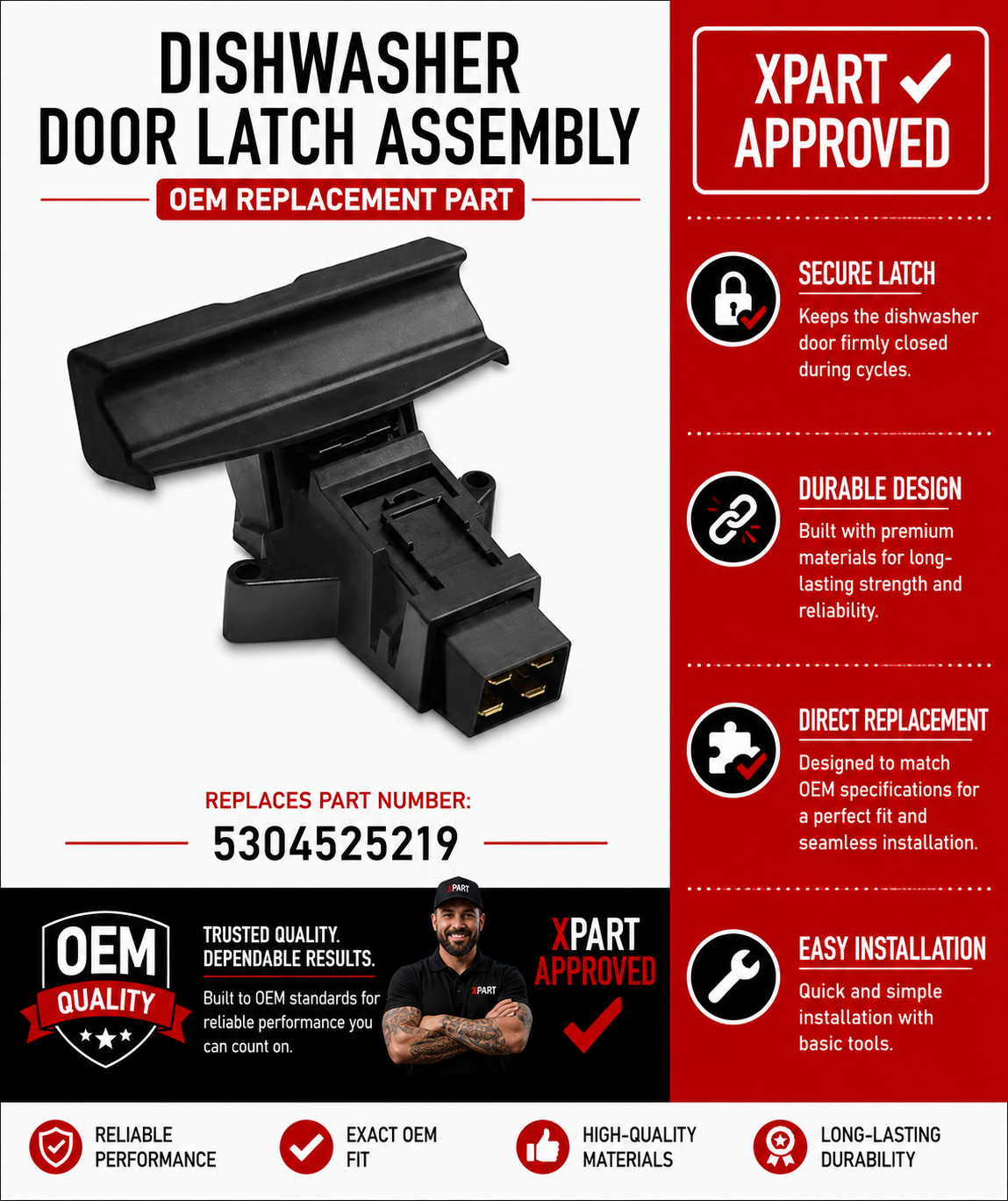

Dishwasher Door Won't Close or Latch? Door Latch Assembly 5304525219 – Fix It Fast
A dishwasher that won't latch shut won't run — and the door latch assembly is the most common reason why. In most Frigidaire and Electrolux dishwashers, this is caused by a failed door latch assembly. When it fails, the door won't click shut, the machine won't start, or the door pops open mid-cycle — leaving dishes dirty and water potentially leaking onto the floor. ⚡ Common failure point in Frigidaire-built dishwashers. Part 5304525219 is the genuine OEM replacement that restores a secure door latch and allows the dishwasher to run normally.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Dishwasher powers on and control panel responds normally
- ✔ Water supply and drain are confirmed working
- ✔ Other dishwasher functions (spray arms, pump) appear intact
- ✔ ONLY problem is the door won't latch, click shut, or stay closed
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Door won't click or latch shut
- Dishwasher won't start even though it powers on
- Door pops open during the wash cycle
- Latch handle is cracked, broken, or feels loose
- Door switch not registering (no start signal to control board)
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this door latch assembly restores normal operation immediately.
📦 Part Details
- Part Number: 5304525219
- Type: Door Latch Assembly Service Kit — includes complete latch mechanism and integrated door switch, Black
- Replaces: 5304461023, 5304461024, 5304461025, 5304461026
- Brands: Frigidaire, Electrolux, Kenmore
⚠️ Recommended While Repairing:
While the inner door panel is off, inspect the door gasket/seal. A worn or cracked gasket is a common companion failure on dishwashers with latch issues — replacing both at the same time saves a full disassembly later and prevents water leaks after the repair.
While the inner door panel is off, inspect the door gasket/seal. A worn or cracked gasket is a common companion failure on dishwashers with latch issues — replacing both at the same time saves a full disassembly later and prevents water leaks after the repair.
⚙️ Installation
Skill Level: Moderate — 20 to 40 minutes. Disconnect power before servicing. Remove the inner door panel (6–10 perimeter screws), disconnect the wiring harness from the old latch assembly, and snap or screw the new assembly into place. Reconnect the harness, reassemble the door panel, and test the latch before running a cycle.
✓ Compatible Models
Confirmed compatible with FGID2466QF, FGID2479SF, FGID2466QB, FGID2479SB, FGID2466QBA, FGID2479SFA, FPHD2491KF, FPHD2491KB, EIDW1805KS, EIDW1805KB, EIDW1805KW, EIDW2105KS, and additional Frigidaire, Electrolux, and Kenmore 587-series models. Contact us to verify your model number before ordering.
💡 Pro Tip
Check the Door Gasket While You're In There:
The door gasket is only accessible once the inner panel is removed — the same step required for this latch replacement. If your gasket shows any cracking, flattening, or mold buildup, replace it now. A $15–$25 gasket replaced today prevents a water leak callback and a second full disassembly job later.
The door gasket is only accessible once the inner panel is removed — the same step required for this latch replacement. If your gasket shows any cracking, flattening, or mold buildup, replace it now. A $15–$25 gasket replaced today prevents a water leak callback and a second full disassembly job later.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
