Frigidaire Range Door Won’t Lock for Self-Clean or Won’t Unlock After? Door Latch Motor & Switch 318096028 – Restore Self-Clean Function Fast
A Frigidaire range that won’t start a self-clean cycle, won’t lock the door before cleaning, or stays locked after the cycle ends almost always has a failed door latch motor and switch assembly. In most Frigidaire self-cleaning ranges, the door latch motor drives the locking mechanism and the switch signals the control board when the door is secured — both functions must work for the self-clean cycle to start or end. When the motor fails or the switch loses continuity, the range either refuses to begin self-clean or traps you with a locked door after the cycle. ⚡ The door latch motor and switch is the most common cause of self-clean lock failure in Frigidaire ranges. Part 318096028 is the genuine OEM replacement that restores full self-clean door locking and unlocking immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Your range is a Frigidaire self-cleaning model
- ✔ The range powers on and cooks normally — bake and broil elements work
- ✔ The control board is not showing unrelated error codes
- ✔ ONLY problem is door won’t lock to start self-clean, or door is stuck locked after a cycle
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Self-clean cycle won’t start — door won’t lock when self-clean is selected
- Door locked and won’t open after self-clean cycle ends
- F-code or door lock error on the display during or after self-clean
- Latch motor runs but door doesn’t fully engage the lock position
- Self-clean cycle starts but aborts immediately with a lock error
- Door lock indicator light stays on when it shouldn’t
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing the door latch motor and switch assembly restores full self-clean operation immediately.

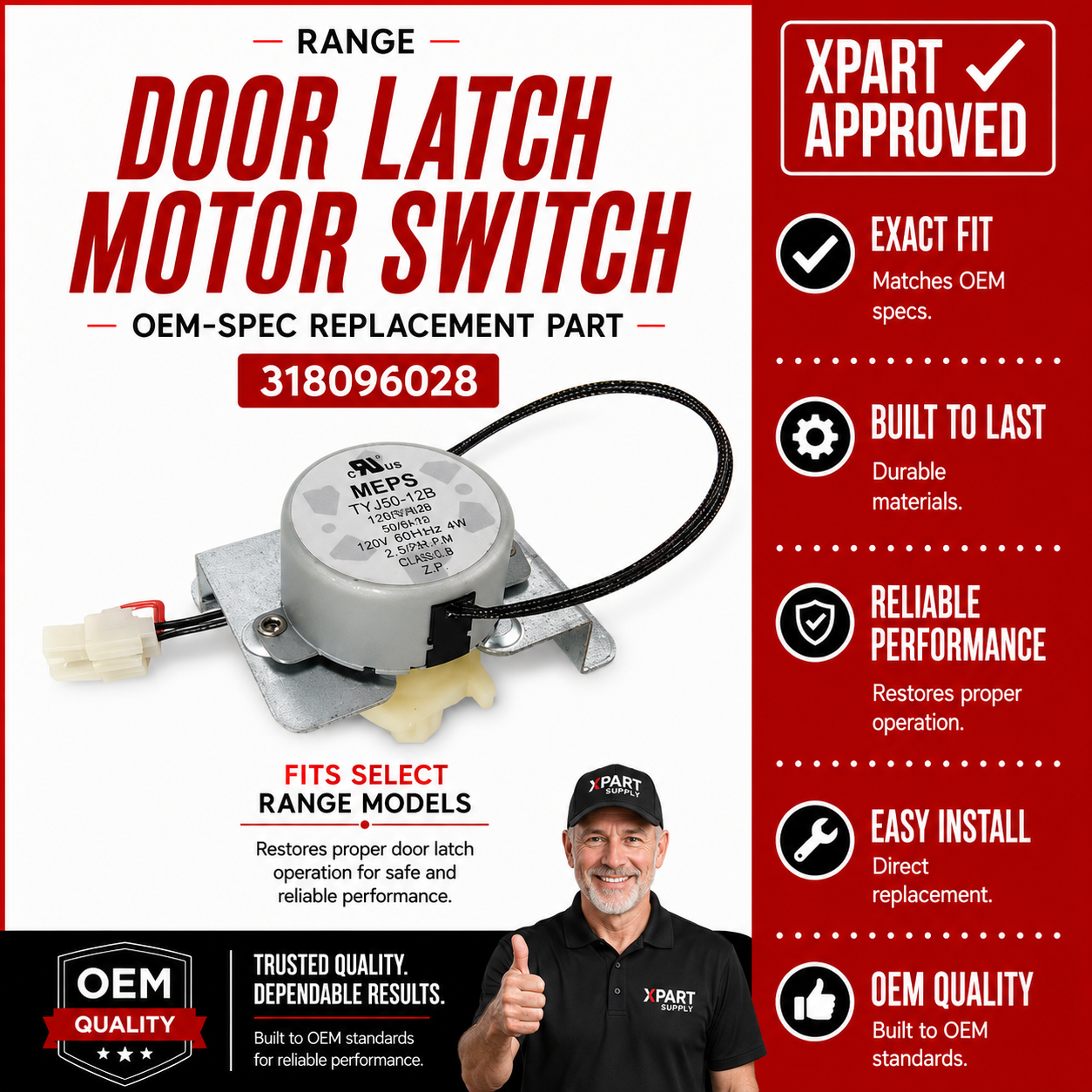

📦 Part Details
- Part Number: 318096028
- Type: Range Self-Clean Door Latch Motor & Switch Assembly — OEM Frigidaire
- Replaces: 318096028 (verify with your model number)
- Brands: Frigidaire, Electrolux
If the door was stuck locked after a failed self-clean cycle, inspect the door gasket and hinge for heat damage — extreme self-clean temperatures can warp hinges or degrade the door seal, causing the door to bind even after the latch is repaired. Replacing a damaged gasket at the same time prevents a repeat service call.
⚙️ Installation
Skill Level: Moderate — 30–45 minutes. Disconnect power before servicing. Remove the rear panel or top panel to access the door latch motor assembly mounted at the top of the oven cavity. Disconnect the wiring harness, remove the mounting screws, and install the new 318096028 assembly. Reconnect the harness, reassemble the panel, restore power, and test by initiating a self-clean cycle to confirm the door locks and unlocks correctly.
💡 Pro Tip
Before replacing the latch motor, disconnect power to the range for 5 minutes and restore it — this clears the control board’s lock state and sometimes releases a door that’s stuck after a cycle. If the door unlocks after the reset but locks again on the next self-clean attempt, the latch motor or switch is confirmed failed and 318096028 is the correct fix.
Contact us to verify your Frigidaire range model number before ordering.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
