Washer Not Draining? GE Drain Pump WG04F11469 – Fix Standing Water & Drain Errors Fast

If your GE or GE Profile front-load washer won't drain, has standing water in the tub, or leaves clothes soaking wet after the spin cycle, a failed drain pump is the most common cause. In most GE front-load washers, the drain pump uses an electric motor to drive an impeller that forces water through the drain hose and out of the machine. When it fails, the washer cannot complete the drain cycle — triggering drain error codes, stopping mid-cycle, or leaving the tub full of water. ⚡ Common failure point in GE and GE Profile front-load washers. Part WG04F11469 is the genuine OEM replacement that restores full drain function and clears drain-related error codes immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Washer powers on and the control panel functions normally
• ✔ Wash and rinse cycles run correctly
• ✔ Pump filter/coin trap has been checked and is clear of debris
• ✔ Drain hose is not kinked, blocked, or improperly routed
• ✔ ONLY problem is washer will not drain or drains very slowly

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Washer not draining at end of cycle — standing water remains in tub
• Drain error code displayed (e.g. E23, E24, or similar)
• Clothes soaking wet after spin cycle completes
• Washer stops mid-cycle during the drain phase
• Loud humming from pump area with no water movement
• Slow or incomplete draining that has progressively worsened

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing the drain pump restores full drain function immediately.

📦 Part Details

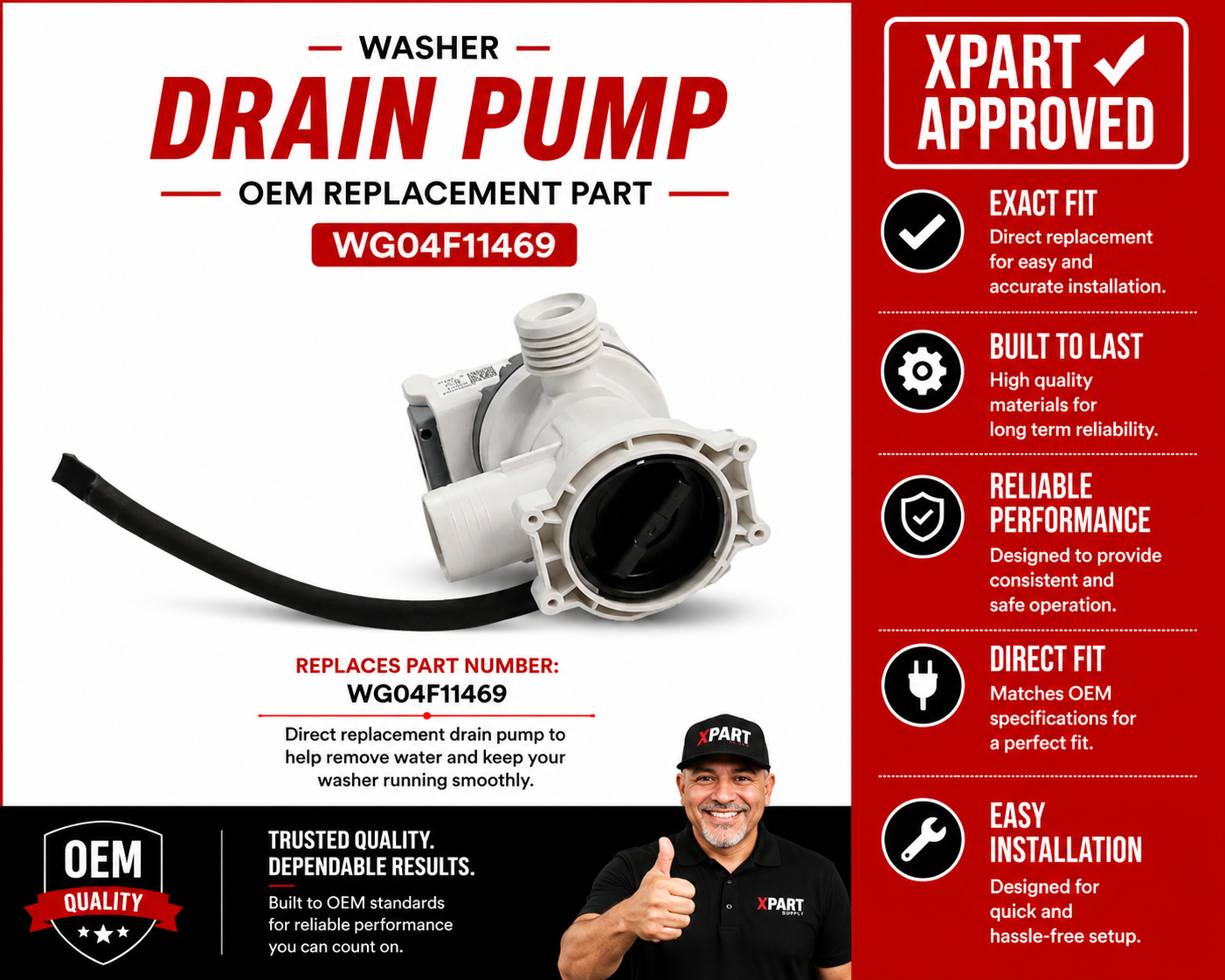

• Part Number: WG04F11469
• Type: Washer Drain Pump Assembly — complete unit including electric motor, impeller, pump housing, and mounting hardware
• Replaces: WG04F11469, 0022150033660401 — no modification required, direct plug-in wiring harness connector
• Brands: GE, GE Profile

⚙️ Installation Notes

Skill Level: MODERATE — 45–90 minutes. Disconnect power and shut off the water supply before beginning this repair. Run a drain/spin cycle first to remove as much water as possible, then place towels and a shallow pan under the pump area — residual water will spill when hoses are disconnected. Access the pump by removing the front lower access panel or tilting the machine back to reach the bottom. Disconnect the wiring harness, clamp and remove the inlet and outlet hoses, and remove the mounting screws. Reverse to install. Run a full test drain cycle and check all hose connections for leaks before closing up the machine.

💡 Pro Tip

GFQ14ESSN0WW, GFW148SSM1WW, QFW150SSN0WW
