Range Display Blank or Controls Not Responding? Display Board WG02F11857 — Fix It Fast

A range with a blank display or buttons that do nothing is completely unusable — and in most GE ranges, the display board assembly is the direct cause. In most GE and GE Profile ranges, the display board assembly is the central interface between the user and the appliance's control system. When it fails, the display goes dark, buttons stop responding, error codes appear and won't clear, or the range behaves erratically with no user input. ⚡ Common failure point in GE-built ranges — often triggered by power surges or capacitor wear. Part WG02F11857 is the genuine OEM replacement that restores full display function, button response, and normal range operation.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ The range powers on — heating elements or burners still function
• ✔ The display is blank, dim, or shows garbled characters
• ✔ Control buttons are unresponsive or only partially working
• ✔ ONLY problem is the display panel and user interface — not heating or ignition

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Display screen completely blank or dark
• Control buttons unresponsive or intermittently working
• Error codes displayed that won't clear after power cycling
• Display shows partial segments or garbled characters
• Clock resets constantly or won't hold settings
• Range works manually but electronic controls are dead

✔ If these symptoms match, the display board assembly is the most likely failed component in the system.

✔ In most cases, replacing this display board restores full control panel function immediately.

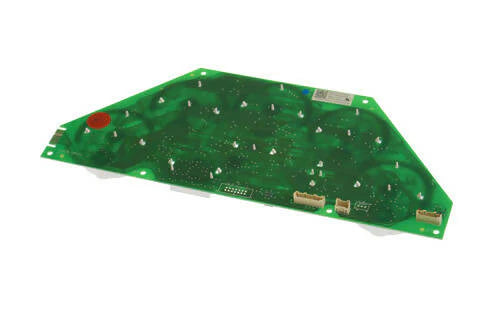

📦 Part Details

• Part Number: WG02F11857
• Type: OEM Range Display Board Assembly (User Interface Control Board)
• Brands: GE, GE Profile, Café™

⚙️ Installation

Skill Level: MODERATE — 30–60 minutes. Disconnect power at the breaker before servicing. Remove the control panel fascia (typically 4–6 screws along the top or rear of the panel), photograph all ribbon cable and wire harness connections before disconnecting, then swap the board and reconnect in reverse order. Ribbon cables are fragile — seat them straight and fully before locking the ZIF connector.

💡 Pro Tip
