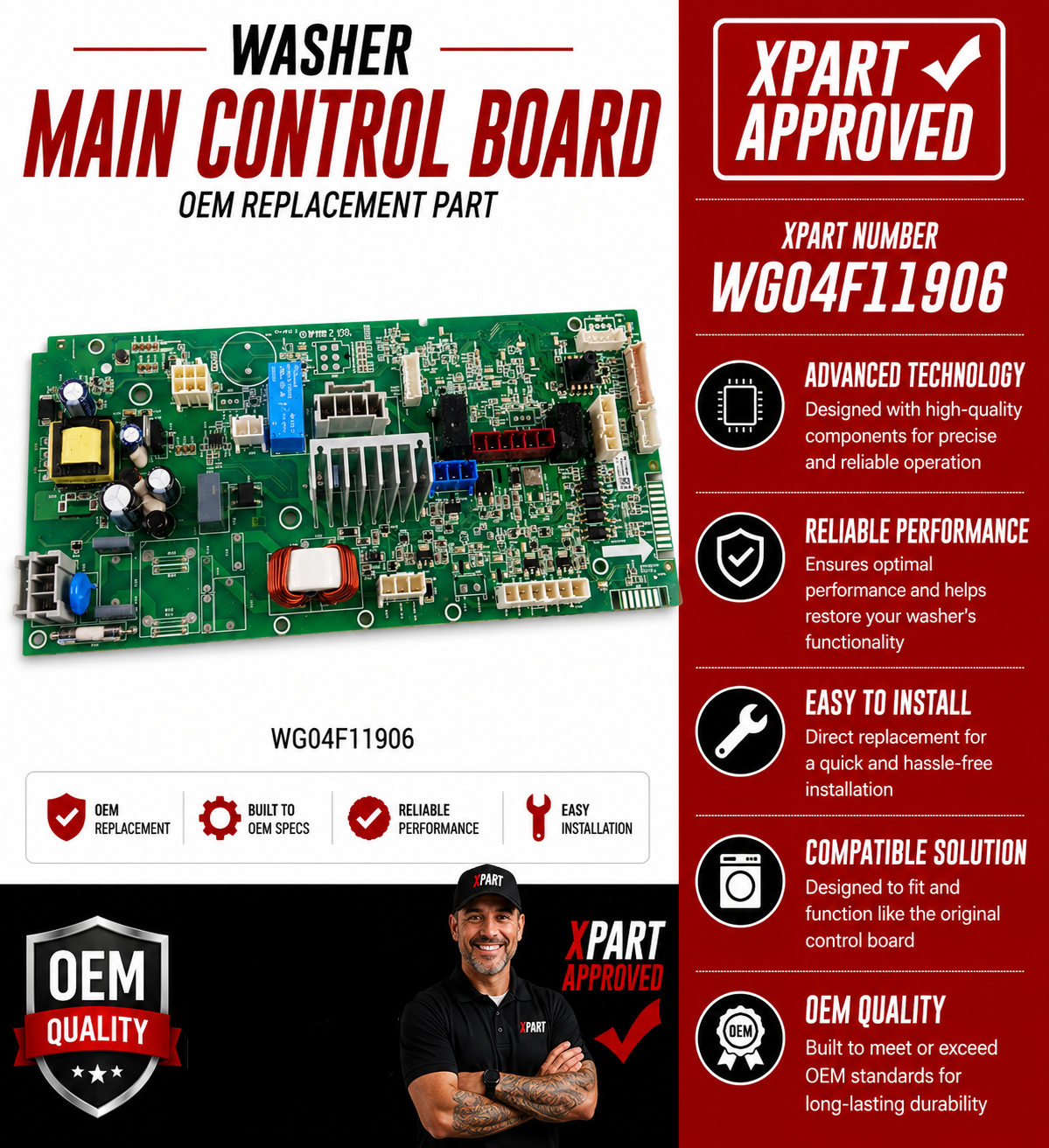

GE Front-Load Washer Main Control Board WG04F11906, Fixes Washer Not Starting or Stopping Mid-Cycle

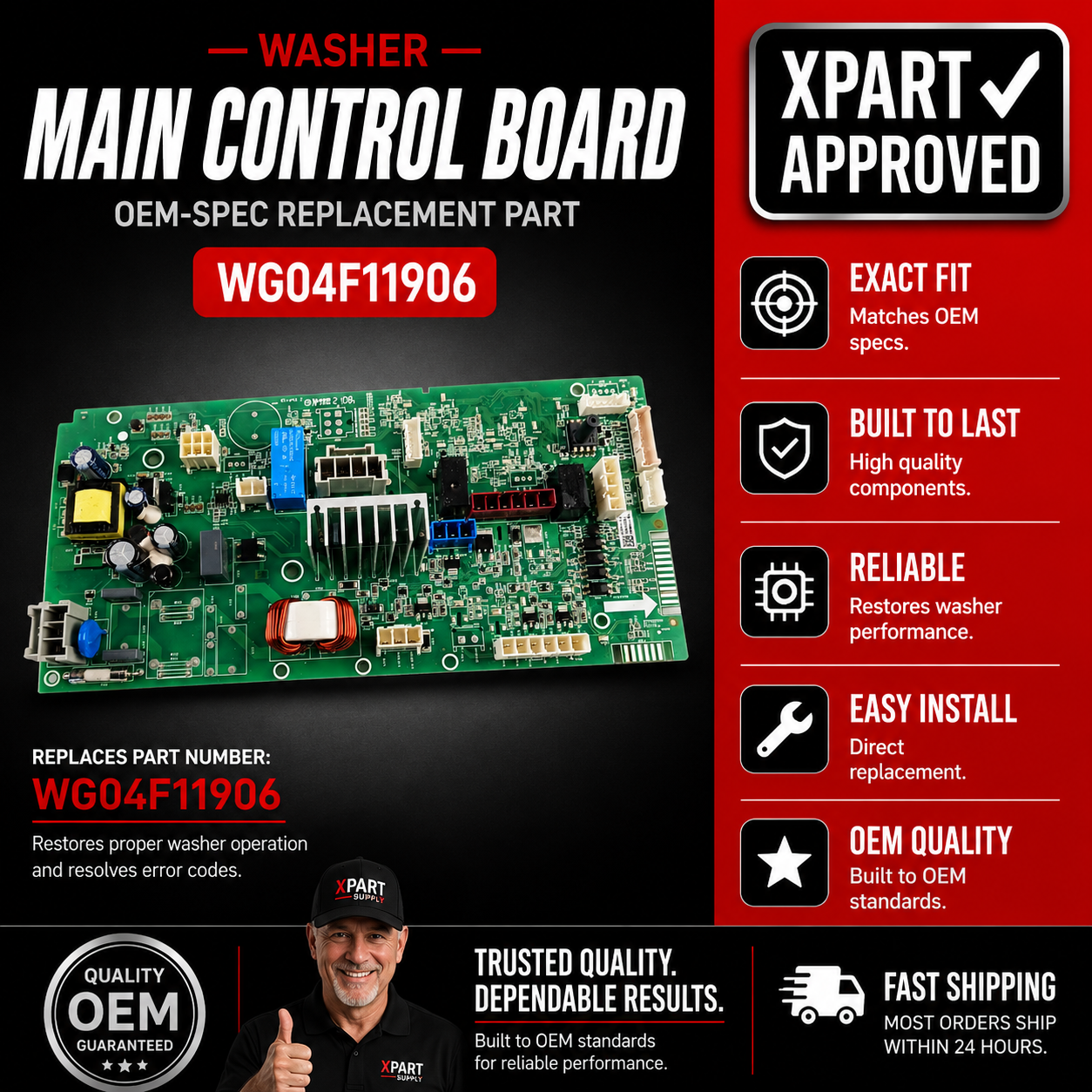

🇺🇸 Matching U.S. Part Number: WH22X38697

The GE WG04F11906 main control board receives cycle selections and coordinates filling, washing, draining, spinning and communication with other washer components on compatible GFW510 and GFW550 series models. It replaces WH22X29546, WH22X30897, WH22X32058, WH22X32458, WH22X34357, WH22X34660, WH22X35518, WH22X36638, WH22X36858, WH22X37837, WH22X37838 when fitment is confirmed by the complete washer model number. The current U.S. service replacement is WH22X38697. The replacement board may require model-specific personality programming after installation.

Is This the Right Part?

Confirm the complete model number before ordering. A failed door latch, blown thermal fuse, or defective user interface board can produce identical symptoms at a fraction of the cost — diagnose before ordering.

Common Symptoms

• Washer will not power on or start a cycle
• Display completely dead or showing garbled characters
• Control-related fault codes (e.g. E31, E42, E57) that do not clear after reset
• Cycle starts but stops or will not advance
• Washer stuck in one phase — fill, wash, drain or spin — and will not progress
• Erratic or unpredictable behaviour with no consistent pattern
• No response to cycle selection inputs

Check Before Replacing

• Confirm power supply and outlet are delivering correct voltage
• Test the thermal fuse — a blown fuse can prevent the washer from starting
• Verify the door latch assembly is functional and locking correctly
• Check the user interface board, drain pump, inverter board and wiring harness connectors for damage or corrosion
• Pull the tech sheet from inside the washer cabinet and run diagnostic mode to confirm the main control board is the failed component

Part Details

Note: 0021800214C appears as a production or board-reference number. Sources publish conflicting replacement directions between 0021800214C and WG04F11906 — it is retained as a reference tag only and is not confirmed as a directional supersession.

Installation Notes

1. Disconnect electrical power before beginning — this is a static-sensitive PCB. Ground yourself by touching an unpainted metal surface before handling the board.
2. Photograph all wiring harness connections before disconnecting.
3. Compare the new board with the original before installation — confirm connector positions and mounting points match.
4. Inspect nearby wires, connectors and harnesses for corrosion or damage while the board is accessible.
5. Reconnect all harnesses firmly, restore power, and follow the personality programming instructions before running a diagnostic cycle to confirm the repair.

Skill Level: Moderate to Advanced. Access varies by model — most GE front-load washers require removing the top panel or rear access panel. Use a qualified technician when diagnosis or installation is outside your experience.

Verified Compatible Models

GFW510SCN0WW, GFW510SCN1WW, GFW510SCN3WW, GFW510SCN4WW, GFW510SCN5WW, GFW510SCV0WW, GFW550SMN0DG, GFW550SMN1WW, GFW550SMN2WW, GFW550SMN3WW, GFW550SPN0DG, GFW550SPN1DG, GFW550SPN2DG, GFW550SPN3DG, GFW550SPR0RS, GFW550SPR3RS, GFW550SPR4RS, GFW550SPR5RS, GFW550SSN0WW, GFW550SSN1WW, GFW550SSN2WW, GFW550SSN3WW, GFW550SSN4WW, GFW550SSN5WW

Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering.
