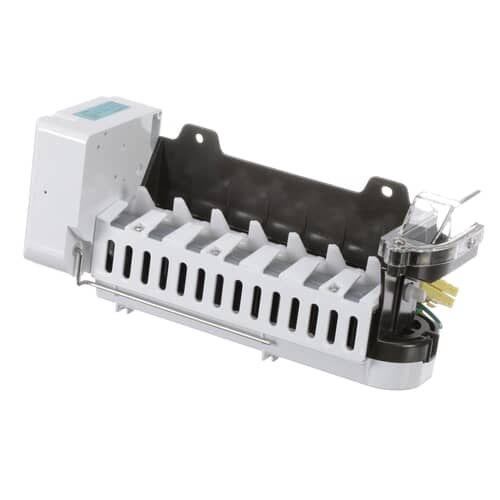

LG Refrigerator Ice Maker Assembly AEQ73130004, Replaces AEQ72910401, AEQ72910403

The LG AEQ73130004 Ice Maker Assembly is designed to automatically produce and eject ice in compatible LG refrigerators. It includes the ice mold and integrated control device, receiving water from the inlet valve, freezing it, and ejecting cubes into the storage bin until the bin is full. It replaces AEQ72910401, AEQ72910403 when fitment is confirmed by the appliance model number.

Is This the Right Part?

Confirm the complete model number before ordering. Similar ice maker assemblies may differ in mold size, ejector arm design, wire harness connector, or mounting bracket orientation.

Common Symptoms

• Refrigerator stops making ice entirely
• Ice maker produces very small, misshapen, or hollow cubes
• Ice maker fills with water but does not freeze or eject
• Ice maker runs continuously or does not shut off when bin is full

Check Before Replacing

• Verify the ice maker is turned on and the feeler arm or optical sensor is not in the off position
• Check the water inlet valve and water supply line for blockages or low pressure (<20 psi)
• Inspect the freezer temperature — it must be at or below 0°F (-18°C) for the ice maker to cycle
• Test the ice maker control board and thermistor before replacing the full assembly

Part Details

Installation Notes

1. Disconnect power to the refrigerator before starting.
2. Shut off the water supply line to the refrigerator.
3. Photograph the wiring harness connections and mounting position before removal.
4. Compare the new assembly with the original — verify mold size, harness connector, and mounting holes.
5. Restore power and water, then run a test cycle and check for leaks or error codes.

Use a qualified technician when diagnosis or installation is outside your experience.

Verified Compatible Models

Confirm your full model number before ordering. This assembly fits select LG French door and side-by-side refrigerators. Common compatible families include LRMVS, LRFXS, LRMVS3006, and LRFDS series — verify by full model number including suffix.

Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering.
