LG Washer Drive Motor Rotor Assembly AHL72914402 — Fixes No Spin, Slow Spin & LE Error Code
AHL72914402 Washer Drive Motor Rotor Assembly
LG Washer Drive Motor Rotor Assembly AHL72914402 — Fixes No Spin, Slow Spin & LE Error Code
AHL72914402 Washer Drive Motor Rotor Assembly
Customers rate us 4.8/5 based on 236 reviews.

LG Washer Drive Motor Rotor Assembly AHL72914402 — Fixes No Spin, Slow Spin & LE Error Code

$99.99

XPart Verified Replacement  |  SKU 9668961272097

Buying Option: Used

Product variant with selected options does not exist!

Frequently Bought Together
OEM REPLACEMENT PART

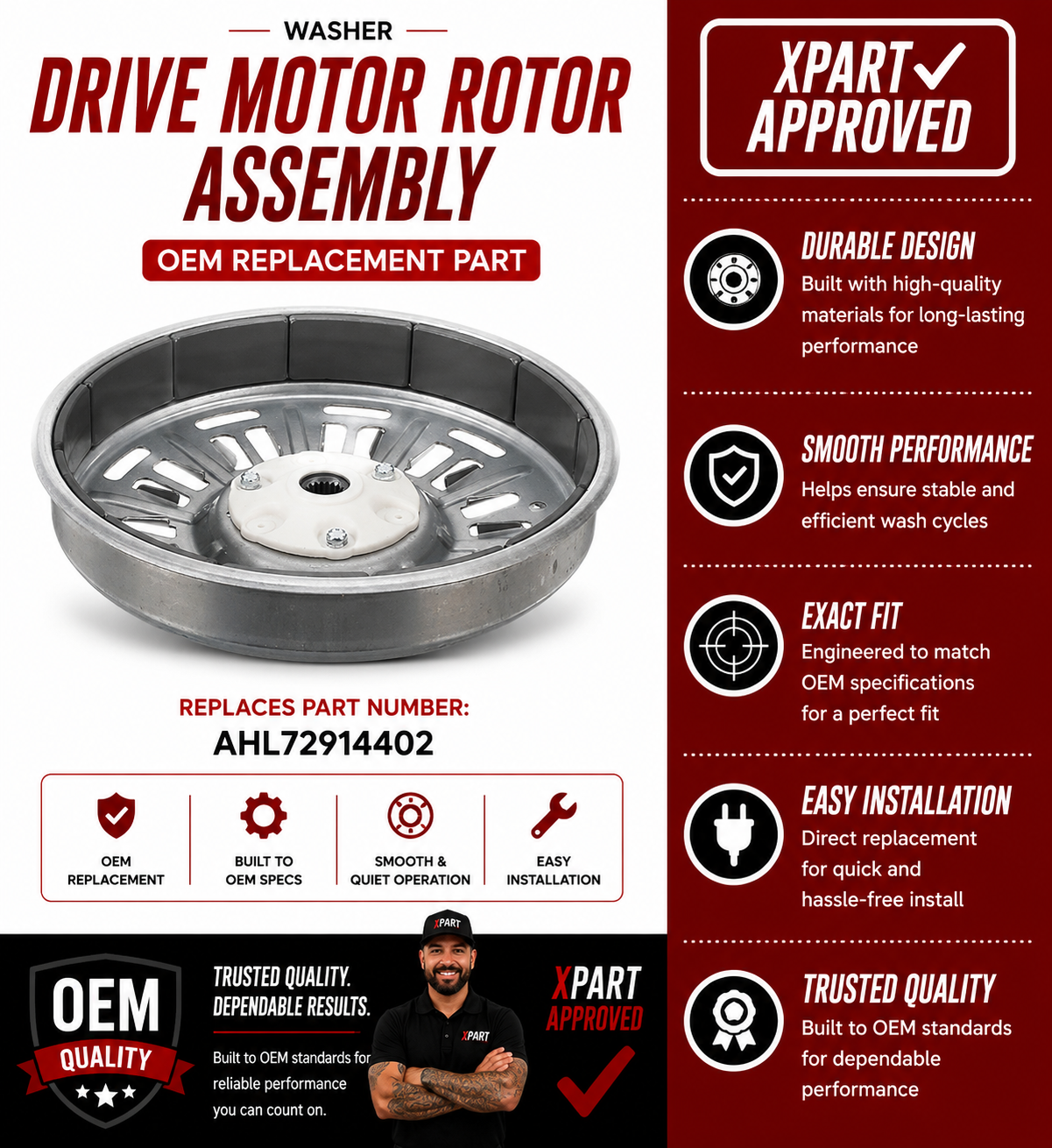

LG Washer Drive Motor Rotor Assembly AHL72914402

Part# AHL72914402 Replaces 4413EA1002B Fits LG Fits Kenmore

LG Washer Not Spinning or Showing LE Error? Rotor Assembly AHL72914402 – Fix It Fast

An LG front load washer that won’t spin, spins slowly, or displays an LE error code is almost always caused by a failed or damaged drive motor rotor assembly. In LG and Kenmore front load washers, the direct drive motor rotor is the magnetic component that surrounds the stator and drives drum rotation without a belt or pulley. When the rotor’s magnets crack, chip, or the rotor itself becomes damaged, the motor loses torque, the drum stalls under load, and the washer throws an LE (locked motor error) code. ⚡ One of the most common mechanical failures on LG direct drive washers — the rotor magnets are vulnerable to impact damage if foreign objects enter the drum. Part AHL72914402 is the genuine OEM replacement that restores full motor torque and spin performance immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

  • ✔ The washer powers on and the control panel is functional
  • ✔ The drum turns freely by hand when the washer is unplugged
  • ✔ Water supply and drain are confirmed OK
  • ✔ ONLY problem is no spin, slow/weak spin, or a persistent LE error code

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

  • LE error code displayed — locked motor error during spin cycle
  • Drum won’t spin or spins very slowly even on high-speed cycles
  • Washer fills and agitates but stops before or during spin
  • Loud grinding or scraping noise during drum rotation

✔ If these symptoms match, this is the most likely failed component in the system.

— In most cases, replacing this rotor assembly restores full spin speed and clears the LE error immediately.

📦 Part Details

  • Part Number: AHL72914402
  • Type: Washer Direct Drive Motor Rotor Assembly
  • Replaces: 4413EA1002B
  • Brands: LG, Kenmore
⚠️ Recommended While Repairing:
Inspect the motor stator (the inner component the rotor surrounds) while the rotor is removed. If the stator windings show burn marks, melted insulation, or broken hall sensor wires, replace the stator at the same time — a damaged stator will destroy a new rotor quickly and is a common secondary failure when the rotor has been running damaged.

⚙️ Installation

Skill Level: MODERATE — 30–45 minutes. Disconnect power before servicing. Lay the washer on its back to access the motor assembly at the rear of the drum. Remove the single bolt securing the rotor to the stator shaft, pull the rotor straight off, and seat the new rotor in the same position. Reinstall the bolt to the specified torque, stand the washer upright, and run a spin cycle to confirm operation.

✓ Compatible Models

Confirmed compatible with WM2650HWA, WM3360HWCA, WM8000HWA, WM9000HWA, WM4370HKA plus hundreds of additional LG and Kenmore front load washer models. Contact us to verify your model number before ordering.

💡 Pro Tip

Check for Magnet Damage Before Ordering:
With the washer unplugged and the rear panel removed, visually inspect the rotor before ordering. The rotor is the large disc-shaped component at the back of the motor. Look for cracked, chipped, or missing magnets around the inner circumference — even one damaged magnet will cause LE errors and spin failure. If the magnets are intact and the rotor spins freely, the stator or hall sensor may be the actual failure point instead.

✓ Model-Specific Repair Pages

WM2077CW WM2075CW WM2042CW WM2032HW WM2032HS WM2011HW WM1832CW WM1811CW WM0642HW WM0642HS WM0532HW WD-12276BD WD-12275BD WD-12272BD WD-11588BD WD-11586BD WD-11581BD WD-11276BD WD-11275BD WD-11270BD WD-10270BD TCW2013QS2 TCW2013QS TCW2013OS TCW2013LS TCW2013CS3 TCW2013CS GCWP1069QS GCWP1069QD GCWP1069CS GCWP1069CD 79641379211 79641379210 79641373211 79641373210 79641372211 79641372210 79641283310

✅Compatibility & Cross Reference

Part number AHL72914402 replaces 4413EA1002B


41072, 41073, 41172, 41182, 41272, 41282, 41283, 41372, 41373, 41379, 41472, 41473, 41962, 41963, 41982, 41983, 45429, 79628862700, 79628869700, 79641172210, 79641172211, 79641182310, 79641182311, 79641282310, 79641282311, 79641283310, 79641372210, 79641372211, 79641373210, 79641373211, 79641379210, 79641379211, F1069FD2P, F1069FD3P, F1069FD4P, F1069FD6P, F1069FD7P, F1069FDP, F10A4FN, F10A4FNP, F10C7FD1, F10C7FD3, F10C7FD4, F10C7FD7, F1201FDSU, F1201FDSU9, F1201FDU, F1201FDU7, F1201FDU9, F1253FDSQ9, F1267FDC, F1282FD, F1282FDC, F1298FYN, F1298FYN9, F1298FYNP, F1298FYNP9, F12A1FD, F12A1FDP, F12A1FY, F12A1FY2, F12A1FY5, F12A1FY9, F12A1FYP, F12A1FYP2, F12A1FYP5, F12A1FYP9, F12A3FYN, F12A3FYN3, F12A4FD, F12A4FDP, F12A4FN, F12A4FN9, F12A4FNP, F12A4FNP7, F12A4FNP9, F12E5FD, F12E5FDP, F12E6FDY, F12E6FDYP, F12E7FDY8, F12E7FDYP8, F1355FDSC, F1355FDSC7, F1355FDSC9, F1386FDS, F1386FDS3, F1387FDS, F1387FDS3, F1397FYN, F1397FYN2, F13C4FNY, F13C4FNY7, F13E4FD, F13E4FDP, F13E4FDY, F13E4FDYP, F13E4FDYP8, F13E4FDYP9, FH069FD4F, FH069FD4P, FH069FD6F, FH069FD6P, FH069FD7F, FH069FD7P, FH069FDF, FH069FDP, FH0C7FD3, FH0C7FD4, FH0C7FD41, FH0C7FD71, FH2F8ADYK8, FH387CDYK3, FH387CDYK7, FH3C4CDNK3, FH3C4CDNK7, FH3C4FNY, FH3C4FNY, FH3C4FNY7, FH3F7ADYK3, FH3F7ADYK7, FH4D1ADSK3, FH4D1ADSK7, GCWF1069CD1, GCWF1069CD3, GCWF1069CS1, GCWF1069CS3, GCWF1069QD1, GCWF1069QD3, GCWF1069QS1, GCWF1069QS3, GCWL1069CS1, GCWL1069CS3, GCWL1069QD3, GCWM1069CD7, GCWM1069CS7, GCWP1069CD, GCWP1069CD1, GCWP1069CD2, GCWP1069CD3, GCWP1069CS, GCWP1069CS1, GCWP1069CS2, GCWP1069CS3, GCWP1069LD, GCWP1069LD2, GCWP1069LS, GCWP1069LS2, GCWP1069QD, GCWP1069QD1, GCWP1069QD2, GCWP1069QD3, GCWP1069QS, GCWP1069QS1, GCWP1069QS2, GCWP1069QS3, GCWW1069CD7, GCWW1069CS7, TCW2013CS, TCW2013CS1, TCW2013CS3, TCW2013LS, TCW2013LS2, TCW2013OS, TCW2013QS, TCW2013QS1, TCW2013QS2, WD-10270BD, WD-10271BD, WD-10412BD, WD-11270BD, WD-11270RD, WD-11275BD, WD-11276BD, WD-11581BD, WD-11581BDK, WD-11581BDP, WD-11586BD, WD-11588BD, WD-11588BDK, WD-11589BD, WD-12272BD, WD-12275BD, WD-12276BD, WD-12412BD, WD-13276BDM, WD-90210BD, WD11270BD, WM0532HW, WM0642HS, WM0642HW, WM1811CW, WM1832CW, WM2011HW, WM2032HS, WM2032HW, WM2042CW, WM2075CW, WM2077CW, WM2140CW, WM2233HD, WM2233HS, WM2233HU, WM2233HW, WM2240CW, WM2250CW, WM2277HB, WM2277HS, WM2277HW, WM2350HRC, WM2350HSC, WM2350HWC, WM2411HW, WM2432HW, WM2442HW, WM2450HRA, WM2550HRCA, WM2550HWCA, WM2650HRA, WM2650HVA, WM2650HWA, WM2650RD, WM2655HVA, WM2677HBM, WM2677HSM, WM2677HWM, WM3050CW, WM3070HRA, WM3070HWA, WM3070RD, WM3250HRA, WM3250HVA, WM3250HWA, WM3360HRCA, WM3360HVCA, WM3360HWCA, WM3470HVA, WM3470HWA, WM3600HWA, WM3632HW, WM3677HW, WM4070HWA, WM4370HKA, WM8000HVA, WM8000HWA, WM8100HVA, WM8100HWA, WM8500HVA, WM8500HWA, WM9000HVA, WM9000HWA, WM9500HKA

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
