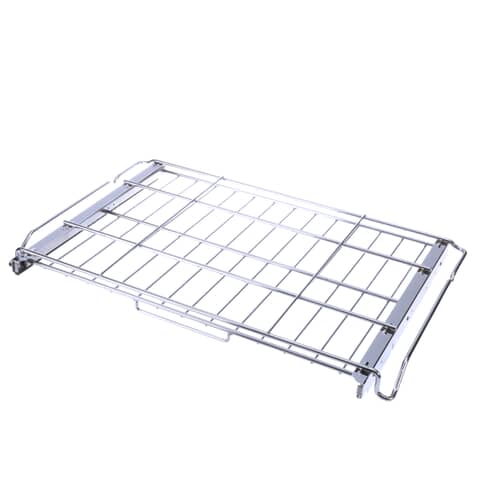

LG AHT74173805 Shelf Assembly
LG AHT74173805 Shelf Assembly

LG AHT74173805 Shelf Assembly

Price
$316.99
Buying Options: OEM Genuine

Product variant with selected options does not exist!

Frequently Bought Together

Confirm This Fits Your Model
Not sure where to find your model number? See guide →
OVEN RACK IS MISSING, DAMAGED, OR DOES NOT SLIDE PROPERLY

LG Range oven gliding rack / shelf assembly AHT74173805, Fixes Oven rack is missing, damaged, or does not slide properly

Genuine LG range oven gliding rack, also identified as a shelf assembly. It is installed inside the oven cavity and provides a sliding support surface for cookware.

Part AHT74173805Replaces AHT74173802, AHT74173804, AHT74173801LG
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.

Is This the Right Part?

Part NumberAHT74173805
ReplacesAHT74173802, AHT74173804, AHT74173801
ManufacturerLG
Appliance TypeRange
Part TypeRange oven gliding rack / shelf assembly

✅ Cross Reference Information

Current Part NumberAHT74173805
Verified Previous OEM NumbersAHT74173802, AHT74173804, AHT74173801

Common Symptoms

  • Rack does not glide smoothly in the oven tracks
  • Rack is bent, damaged, or missing
  • Cookware does not rest securely on the rack

Check Before Replacing

  • Verify the appliance model number against LG’s compatibility list before ordering.
  • Inspect the rack for bending, broken components, or visible damage.
  • With the oven cool, slide the rack through its full travel to check for binding or misalignment.
  • Confirm that the rack is seated on the oven supports and that the turned-up rear edge is oriented correctly.

Pro Tip

Confirm the complete appliance model and suffix before purchase because LG lists this rack for specific range models.

Part Details

Part NumberAHT74173805
Part TypeRange oven gliding rack / shelf assembly
ManufacturerLG
Appliance TypeRange
Primary FunctionProvides a stable, sliding surface for cookware inside an LG range oven.

Installation Notes

  • Allow the oven to cool before handling the rack.
  • When removing, pull the rack straight out until it stops, lift the front, and pull it free.
  • When installing, place the rack on the oven supports, tilt the front upward, and push it into position.
  • Use oven mitts if adjusting racks while the oven is hot.

Verified Compatible Models

Fitment reminder: Verified compatibility is maintained by the XPart Model Hub Network. Match the complete appliance model number before ordering.

Buy Online Pick Up In-Store

Address
101 Trillium Dr
Kitchener, Ontario N2E 1W8
Phone
1-877-899-7278
Hours
Mon–Fri 9 AM–5 PM • Sat 9 AM–1 PM
Get Directions
Map showing warehouse location at 101 Trillium Dr, Kitchener
View on Google Maps

What Customers Say

4.70 ★ (288)
Verified

All brand names are the property of their respective owners and are used for compatibility reference only.

AHT74173802, AHT74173804, AHT74173801

FB4763LS, FD1784LS, FH4767SS, FH4767US, FP364PLA, FS1748LS, FS1748US, FS1787LS, FS1787SS, FS1787US, FX478RLA, LDE5415ST, LDE5415ST/00, LDG5315ST, LSE4617ST, LSE5615ST
