LG Electric Range Burner Won't Heat or Glow Red? Radiant Surface Element MEE64286401 – Fix Dead Burner Fast

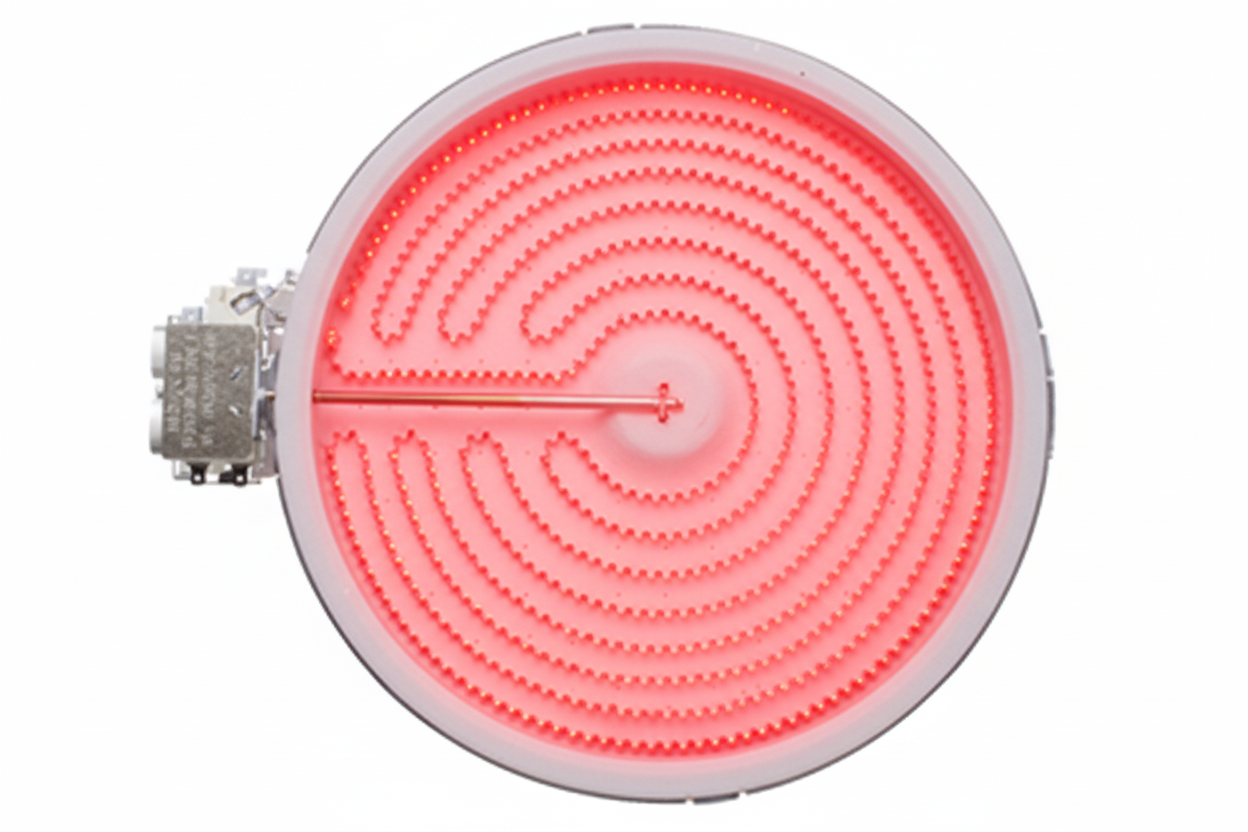

When a burner on your LG electric range produces no heat, fails to glow red, or heats only partially, the radiant surface element beneath the ceramic glass has failed. In most LG smoothtop electric ranges, this is caused by a failed radiant surface element — the coiled resistance ribbon that heats by converting electrical current to heat. When the ribbon burns out, cracks, or develops an internal short, the burner goes completely dead while the rest of the cooktop continues to work normally. ⚡ The radiant surface element is the most common cause of a single dead burner in LG smoothtop ranges. Part MEE64286401 is the genuine OEM LG replacement that restores full heating to your cooktop immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Your range is an LG electric smoothtop model
- ✔ The range powers on and other burners work normally
- ✔ The surface element control switch for this burner has been tested and is functioning
- ✔ ONLY problem is this specific burner not heating, not glowing, or heating unevenly
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Burner won't heat at all — no warmth, no glow
- Element heats only partially or inconsistently
- Burner heats very slowly even on high setting
- Element does not glow red when turned on
- One burner dead while all others work normally
- Visible burn marks, cracks, or breaks in the element ribbon
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this radiant surface element restores full burner operation immediately.
📦 Part Details

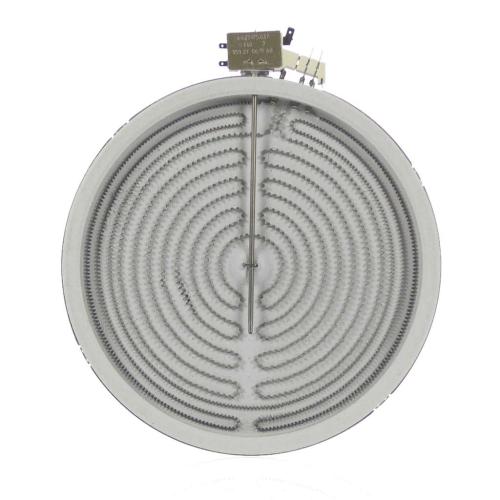

- Part Number: MEE64286401
- Type: Radiant Surface Element — under ceramic glass smoothtop cooktop, OEM LG
- Cross-References: DG47-00064A, W10823727, WPW10189281 — verify fit for your specific model
- Brands: LG
While the ceramic glass cooktop is lifted to access the element, test the surface element control switch (infinite switch) for this burner — a failed switch is the second most common cause of a dead burner and is often misdiagnosed as an element problem. Test the element for continuity first with a multimeter; if it reads OL (open loop), the element is confirmed failed. If the element tests good, the switch is the culprit.
⚙️ Installation
Skill Level: MODERATE — 30–45 minutes. Disconnect power at the breaker before servicing — this element operates at 240V AC. Lift the ceramic glass cooktop carefully from the front edge — support it from underneath and handle with care to avoid cracking. Photograph all wiring connections before disconnecting. Release the element clips or brackets with a flathead screwdriver, disconnect the element terminals, and remove the old element. Install the new MEE64286401, reconnect all terminals securely, lower the cooktop, restore power, and test the burner at multiple heat settings.
💡 Pro Tip
A dead burner is almost always the element, not the control board. Before spending 3× the cost on a board, test the element for continuity with a multimeter set to resistance (ohms) — a reading of OL (open loop / infinite resistance) confirms the element has failed. If the element tests good but the burner still doesn't heat, the infinite switch is the failed component. Replacing the element first saves significant cost and eliminates the most common cause in one step.
Contact us to verify your model number before ordering.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
