⚠ This part has been superseded by a newer OEM part number.
4681EA1007G has been replaced by 4681EA2001T. We recommend ordering the current part for guaranteed fit and full lifespan.
Order 4681EA2001T Instead →LG Washer Not Draining? Drain Pump Motor 4681EA1007G – Fix OE Error & Standing Water Fast
A washer that won’t drain, shows an OE error code, or leaves standing water in the drum almost always has a failed drain pump motor assembly in LG and Kenmore Elite front-load washers. In most LG-built front-loaders, the drain pump motor assembly evacuates water from the tub during the drain and spin cycles. When the motor burns out or the impeller seizes, water stays trapped in the drum — the washer won’t advance to spin, clothes come out soaking wet, and the OE or E1 error code appears on the display. ⚡ Common failure point in LG and Kenmore Elite front-load washers. Part 4681EA1007G is the OEM drain pump motor assembly — note this part has been superseded by 4681EA2001T, which is the current recommended replacement.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer powers on and fills with water normally
- ✔ Wash cycle completes but washer won’t drain or advance to spin
- ✔ OE, E1, or nd error code displayed — or standing water remains in drum after cycle
- ✔ Drain filter has been checked and cleared of debris with no improvement
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Washer won’t drain — water stays in the tub after the cycle ends
- OE, E1, or nd error code on the display panel
- Washer stops mid-cycle with water still in the drum
- Humming sound during drain phase but no water movement
✔ If these symptoms match, the drain pump motor assembly is the most likely failed component.
✔ In most cases, replacing this assembly restores normal drain and spin operation immediately.
📦 Part Details

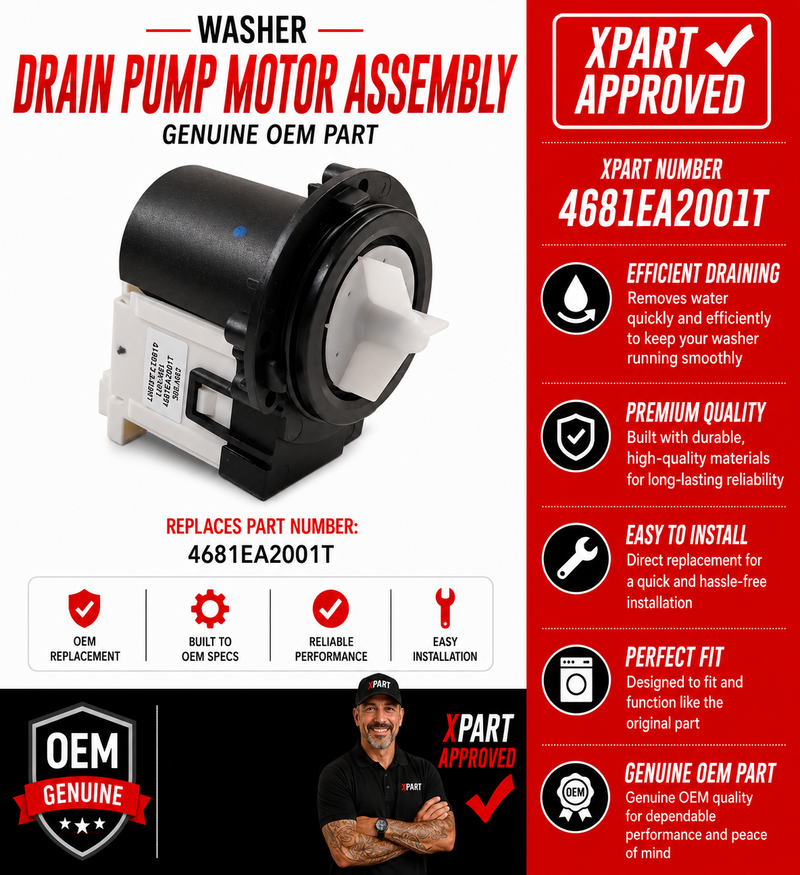

- Part Number: 4681EA1007G
- Type: Washer Drain Pump Motor Assembly
- Superseded by: 4681EA2001T (current OEM — recommended)
- Also Replaces: 4681EA1007D, 4681EA2001D, 4681EA2001N
- Brands: LG, Kenmore Elite
While the lower front panel is open, inspect the door boot seal (bellows) for tears or mold buildup — this is the second most common LG front-loader repair and is easiest to address during the same service visit. Also clean the drain filter housing thoroughly before installing the new pump to prevent debris from damaging the replacement impeller.
⚙️ Installation
Skill Level: EASY — 20–30 minutes. Disconnect power and turn off the water supply before servicing. Access the pump through the lower front panel. Drain residual water via the filter access door before removing the pump to avoid flooding. Disconnect the wiring harness and hose clamps, swap the pump assembly, and reinstall in reverse order. Run a drain-only cycle to confirm the repair before reassembling the panels.
✓ Compatible Models
Confirmed compatible with WM2016CW, WM2077CW, WM2101HW, WM2233H, WM2277HW, WM2301H, WM2350H, WM2487H, WM2688H, WM3360H, WM3431H, WM3455H, WM3477H, WM3987H, and 796.4127 / 796.4128 series Kenmore Elite models plus additional LG front-load washer models. Contact us to verify your model number before ordering.
💡 Pro Tip
Before ordering, pull out the drain filter (lower front panel, small access door) and check for coins, lint, or small garments — a blocked filter mimics a dead pump perfectly. Clean it, run a drain cycle, and see if the OE code clears. If the pump still hums but won’t move water, the impeller is seized and the assembly needs replacement. And if you’re already ordering this part, consider ordering the current superseding part 4681EA2001T instead — it’s the same repair, same install, and gives you the full OEM lifespan on a current-production part.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
