Drain Pump, Drain Pump Motor, Pump Assembly, Water Pump, Drain Motor, Circulation Pump

Part number 4681EA2001T replaces 4681EA1007G, 4681EA1007D, 4681EA2001N, 4681EA2001D, 4681EA1007G, 2003273

LG, Kenmore

40441, 40448, 40512, 40518, 41002, 41003, 41022, 41028, 41029, 41072, 41073, 41162, 41172, 41182, 41262, 41272, 41282, 41283, 41302, 41303, 41372, 41379, 41382, 41383, 41392, 41393, 41482, 41483, 41532, 41538, 41542, 41548, 41549, 41582, 41583, 41682, 41683, 41722, 41728, 41729, 41962, 41963, 41982, 41983, 42192, 42198, 42199, 45429, 48231009799, 48231010108, 498610, 79628862700, 79628869700, 79629872700, 79629877700, 79640021900, 79640272800, 79640272900, 79640311900, 79640318900, 79640441900, 79640448900, 79640512900, 79640518900, 79641022900, 79641028900, 79641029900, 79641162410, 79641162411, 79641172210, 79641172211, 79641182310, 79641182311, 79641262610, 79641282310, 79641282311, 79641283310, 79641302610, 79641303610, 79641372210, 79641372211, 79641379210, 79641382410, 79641382411, 79641383410, 79641383411, 79641392510, 79641392511, 79641393510, 79641393610, 79641532110, 79641538110, 79641542110, 79641548110, 79641549110, 79641722010, 79641728010, 79641728900, 79642192900, 79642198900, 79642199900, 79648842800, 79648852800, CW2079CWD, CW2079CWN, F1069FD, F1069FD2, F1069FD2P, F1069FD3, F1069FD3P, F1069FD4, F1069FD4P, F1069FD6, F1069FD6P, F1069FD7, F1069FD7P, F1069FDP, F10A4FN, F10A4FNP, F1201FDP, F1201FDP1, F1201FDSU, F1201FDSU9, F1201FDU, F1201FDU7, F1201FDU9, F1253FDS, F1253FDS3, F1253FDSQ9, F1254FD, F1254FD1, F1254FD3, F1255FD5, F1264FD, F1264FD8, F1267FDC, F1267FDY, F1271FDS, F1271FDS8, F1275FD, F1275FD7, F1275FDS, F1275FDS7, F1275FDY7, F1298FYN, F1298FYN9, F1298FYNP9, F12A1FD, F12A1FY, F12A1FY2, F12A1FY5, F12A1FY9, F12A1FYP, F12A1FYP2, F12A1FYP5, F12A1FYP9, F12A4FD, F12A4FDP, F12A4FN, F12A4FN9, F12A4FNP, F12A4FNP9, F12E5FD, F12E5FDP, F12E6FDY, F12E6FDYP, F12E7FDY8, F12E7FDYP8, F1314FDS, F1314FDS1, F1314FDS2, F1354FDS, F1354FDS1, F1354FDS3, F1355FDS5, F1355FDSC, F1355FDSC7, F1355FDSC9, F1363FDS, F1363FDS8, F1363FDS9, F1364FDS, F1364FDS8, F1364FDS9, F1386FDS, F1386FDS3, F1387FDS, F1387FDS3, F1390FD, F1390FD8, F1390FDS, F1390FDS8, F1390FDS9, F1399RYN, F13C4FNY, F13C4FNY7, F13C8CDYP7, F13E4FD, F13E4FDP, F13E4FDY, F13E4FDYP, F13E4FDYP8, F13E4FDYP9, F1459FDS, F1459FDS3, F1476FDS, F1476FDS2, F1476FDSK3, F1478FDS, F1478FDS8, F1478FDS9, F14A2CDYP3, F14A2CDYP7, F14E7CDYP3, F14E7CDYP7, F14E9CDYP3, F14E9CDYP7, F14F1CDYP3, F14F1CDYP7, F14F2CDNP1, F14F2CDYP2, F14F2CDYP3, F14F2CDYP4, F14F2CDYP5, F14F2CDYP7, F14F3CDP3, F14F3CDP7, F14F3CDYP3, F14F3CDYP7, F14F4CDP1, F14G2CDNP3, F14G2CDNP7, F3E0CYT2B, F3E0CYT2W, F3G2CNT3W, F3G2CNT4W, F3G2CYT2T, F3G2CYT2W, F3G2CYT5R, F3G2CYT5T, F3G2CYT5W, F3H2CNT2S, F3H2CNT2W, F3H2CNT4W, F3H2CYT2S, F3H2CYT2W, FH069FD4F, FH069FD4P, FH069FD6F, FH069FD6P, FH069FD7F, FH069FD7P, FH069FDF, FH069FDP, FH0C7FD41, FH0C7FD71, FH2F8ADYK8, FH387CDYK3, FH387CDYK7, FH399RYN, FH3C4CDNK3, FH3C4CDNK7, FH3C4FNY, FH3C4FNY7, FH3C8CDYK3, FH3C8CDYK7, FH3C8CDYK8, FH3F4CDYP1, FH3F7ADYK3, FH3F7ADYK7, FH3H1CDGK3, FH3H1CDGK7, FH3H2CDNP2, FH3H2CDNP6, FH3H2CDNV1, FH3H2CDNV2, FH3H2CDNV6, FH3H2CDYK7, FH3H2CDYV3, FH3H2CDYV7, FH4A2CDYP3, FH4A2CDYP7, FH4A8FDNK2, FH4D1ADSK3, FH4D1ADSK7, FH4E9CCYK3, FH4E9CCYK7, FH4E9CCYK8, FH4E9CDYP3, FH4E9CDYP7, FH4F2CDNP1, FH4F2CDYP1, FH4F2CDYP2, FH4F2CDYP3, FH4F2CDYP4, FH4F2CDYP5, FH4F2CDYP7, FH4F3CCYK3, FH4F3CCYK7, FH4F3CDP3, FH4F3CDP7, FH4F3CDYP3, FH4F3CDYP7, FH4F4CDP1, FH4G2CDNP3, FH4G2CDNP7, FH4G2CDNV1, FH4G2CDYK7, FH4G2CDYP2, FH4G2CDYP3, FH4G2CDYP4, FH4G2CDYP6, FH4G2CDYV2, FH4G2CDYV3, FH4G2CDYV6, FH4G2CDYV7, GCW1069CD, GCW1069CS, GCW1069LD, GCW1069LS, GCW1069QD, GCW1069QS, GCWF1069CD1, GCWF1069CD3, GCWF1069CS1, GCWF1069CS3, GCWF1069QD1, GCWF1069QD3, GCWF1069QS1, GCWF1069QS3, GCWL1069CS1, GCWL1069QD3, GCWP1069CD, GCWP1069CD1, GCWP1069CD2, GCWP1069CD3, GCWP1069CS, GCWP1069CS1, GCWP1069CS2, GCWP1069CS3, GCWP1069LD, GCWP1069LD2, GCWP1069LS, GCWP1069LS2, GCWP1069QD, GCWP1069QD1, GCWP1069QD2, GCWP1069QD3, GCWP1069QS, GCWP1069QS1, GCWP1069QS2, GCWP1069QS3, LSWF388HVS, TCW2013CS1, TCW2013QS1, WD-10190BD, WD-10210BD, WD-10212BD, WD-10215BD, WD-10271BD, WD-10410BD, WD-10412BD, WD-10460BD, WD-10465BD, WD-10580BD, WD-11270BD, WD-11270RD, WD-11275BD, WD-11276BD, WD-11581BDP, WD-12190BD, WD-12272BD, WD-12275BD, WD-12276BD, WD-12410BD, WD-12430RDG, WD-12439BDM, WD-1243FHB, WD-13276BDM, WD-13517BDM, WD-3243RHD, WD-3245RHD, WD-3274RHD, WD-90190BD, WD-90210BD, WD-90282BD, WF-T1081TP, WM0001HTMA, WM0532HW, WM0642HS, WM0642HW, WM0742HGA, WM0742HWA, WM1333HW, WM1355HR, WM1355HW, WM1377HW, WM1388HW, WM1811CW, WM1812CW, WM1814CW, WM1815CS, WM1832CW, WM2010CW, WM2011HW, WM2016CW, WM2032HS, WM2032HW, WM2042CW, WM2050CW, WM2075CW, WM2077CW, WM2101HW, WM2140CW, WM2150HW, WM2233HD, WM2233HS, WM2233HU, WM2233HW, WM2240CW, WM2250CW, WM2277HB, WM2277HS, WM2277HW, WM2301HR, WM2301HW, WM2350HRC, WM2350HSC, WM2350HWC, WM2411HW, WM2432HW, WM2442HW, WM2450HRA, WM2455HG, WM2455HW, WM2487HRM, WM2487HRMA, WM2487HWM, WM2487HWMA, WM2487WHM, WM2496HSM, WM2496HWM, WM2497HWM, WM2501HVA, WM2501HWA, WM2550HRCA, WM2550HWCA, WM2601HL, WM2601HR, WM2601HW, WM2650HRA, WM2650HVA, WM2650HWA, WM2655HVA, WM2677HBM, WM2677HSM, WM2677HWM, WM2688HNM, WM2688HNMA, WM2688HWM, WM2688HWMA, WM2701HV, WM2801HLA, WM2801HRA, WM2801HWA, WM2901HVA, WM3001HPA, WM3001HRA, WM3001HWA, WM3050CW, WM3070HRA, WM3070HWA, WM3150HVC, WM3150HWC, WM3170CW, WM3180CW, WM3250HWA, WM3270HWA, WM3360HRCA, WM3360HVCA, WM3360HWCA, WM3370HRA, WM3370HVA, WM3370HWA, WM3431H, WM3431HS, WM3431HW, WM3431HW01, WM3455HS, WM3455HW, WM3470HVA, WM3470HWA, WM3477HW, WM3485HWA, WM3488HS, WM3488HW, WM3550HVCA, WM3550HWCA, WM3570HVA, WM3575CV, WM3575CW, WM3632HW, WM3650HVA, WM3670HRA, WM3670HVA, WM3670HWA, WM3677HW, WM3770HVA, WM3770HWA, WM3875HVCA, WM3875HWCA, WM3885HCCA, WM3885HWCA, WM3987HW, WM3988HMA, WM3988HWA, WM3997HWA, WM4070HVA, WM4070HWA, WM4270HVA, WM4270HWA, WM4370HKA, WM4370HVA, WM4370HWA, WM5000HVA, WM5000HWA, WM5005HKA, WM8000HVA, WM8000HWA, WM8100HVA, WM8100HWA, WM8500HVA, WM8500HWA, WM9000HVA, WM9000HWA, WM9500HKA, WT-R1071TP

Professional Repair Time: 60-90 minutes
DIY Repair Time: 90-120 minutes
Difficulty Rating: Moderate-High (3.5/5) — Requires unplugging washer, turning off water supply, accessing bottom of washer (may require tilting or laying on back), disconnecting hoses and electrical connector, removing old pump, installing new pump, reconnecting hoses and electrical connector, verifying connections, testing operation

CRITICAL SAFETY WARNING: This repair involves working with electrical components and water connections inside the washer. Always unplug the washer from the electrical outlet and turn off the water supply before beginning work to prevent electrical shock and water damage. If uncomfortable with this repair, hire a qualified appliance technician. IMPORTANT: Always check for clogs in the drain pump filter, drain hose, and tub outlet before replacing the pump—many "pump failures" are caused by clogs.TOOLS REQUIRED: Phillips screwdriver, flathead screwdriver, pliers, towels, bucket or shallow pan (to catch water), flashlight, work gloves.IMPORTANT: This repair requires accessing the bottom of the washer. You may need to tilt the washer or lay it on its back—have an assistant help to prevent injury.

1. Unplug the washer from the electrical outlet to ensure complete power disconnection. CRITICAL: Never work on the washer while it's plugged in.
2. Turn off the water supply to the washer by closing the hot and cold water valves.
3. Locate the drain pump filter access panel on the front lower section of the washer. Most LG front-load washers have a small access panel at the bottom front.
4. Open the drain pump filter access panel by pulling it open or removing screws (depending on model).
5. Place towels and a shallow pan under the drain pump filter area to catch water that will drain out.
6. Slowly unscrew the drain pump filter (turn counterclockwise) to drain residual water from the pump and tub. Caution: Up to 1-2 gallons of water may drain out—be prepared with towels and pan.
7. Remove the drain pump filter completely and inspect for debris, coins, lint, or foreign objects. Clean thoroughly if clogged. IMPORTANT: A clogged filter is a common cause of "pump failure"—always check before replacing the pump.
8. Inspect the drain pump impeller through the filter opening by shining a flashlight inside. Look for debris, damage, or objects blocking the impeller. Try rotating the impeller by hand—it should spin freely. If blocked or damaged, proceed with pump replacement.
9. Move the washer away from the wall to access the back panel. You may need to disconnect the drain hose and water supply hoses.
10. Disconnect the drain hose from the back of the washer by loosening the clamp and pulling the hose off. Caution: Residual water may drain—have towels ready.
11. Tilt the washer back or lay it on its back to access the bottom of the washer cabinet. CRITICAL: Have an assistant help—washers are heavy and can cause injury if dropped. Place cardboard or towels under the washer to protect the floor.

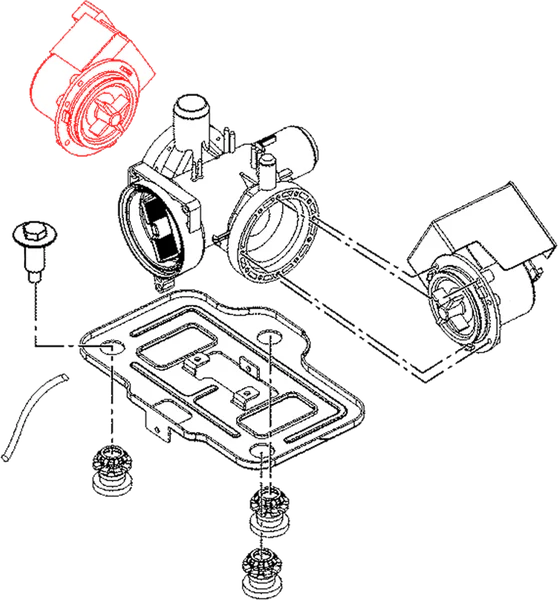

12. Locate the drain pump on the bottom of the washer. The pump is typically mounted near the front center, with hoses connected to the inlet and outlet ports.
13. Take multiple photos of the drain pump location, hose connections, electrical connector, mounting configuration, and component positions before disassembly. CRITICAL: Hose and electrical connections must be exact for proper reassembly and safe operation.
14. Take detailed close-up photos of: all hose connections to the pump (typically 2-3 hoses), hose clamp positions, electrical connector orientation, mounting bracket and screws, and pump orientation.
15. Disconnect the electrical connector from the drain pump by pressing the release tab and pulling the connector off. Caution: Do not pull on the wires—press the release tab and pull the connector housing.
16. Loosen the hose clamps on all hoses connected to the pump using pliers or a screwdriver. Caution: Residual water will drain from hoses—have towels and pan ready.
17. Remove the hoses from the pump inlet and outlet ports by pulling them off. Important: Note which hose connects to which port per your detailed photos.
18. Remove the mounting screws or bolts securing the drain pump to the washer frame using a Phillips screwdriver or socket wrench (typically 2-4 screws).
19. Carefully remove the old drain pump from the washer cabinet.
20. Inspect the old pump for damage indicators: damaged or broken impeller (mechanical failure, most common), cracked or damaged housing (impact damage or age), water leakage from seals (seal failure), burned smell or melted plastic (motor overheating), or debris lodged in impeller (clog causing failure). This confirms the diagnosis.
21. Inspect all hoses for cracks, damage, or clogs. Clean or replace if necessary.
22. Inspect the tub outlet for clogs or debris. Clean thoroughly if clogged.
23. Clean the pump mounting area on the washer frame, removing any lint, debris, or residue.
24. Unpack the new 4681EA2001T drain pump from its packaging.
25. Compare the new pump to the old one to verify dimensions, inlet/outlet port configuration, electrical connector type, mounting bracket design, and overall design match.
26. Inspect the new pump for any shipping damage before installation. The housing should be intact, impeller should spin freely, seals should be intact, and electrical connector should be clean and undamaged.
27. Position the new drain pump in the washer cabinet, aligning the mounting holes with the frame mounting points. Important: The pump orientation must match the old pump per your detailed photos.
28. Install the mounting screws or bolts to secure the pump to the washer frame. Tighten firmly but not excessively. Caution: Over-tightening can crack the plastic housing.
29. Connect the hoses to the new pump according to your detailed photos. Push each hose firmly onto the inlet/outlet ports. CRITICAL: Incorrect hose connections cause water leakage or pump failure.
30. Install the hose clamps on all hose connections and tighten securely using pliers or a screwdriver. Important: Clamps must be tight to prevent water leakage during operation.
31. Connect the electrical connector to the new pump by pushing it firmly onto the pump terminals until it clicks into place. CRITICAL: Verify the connector is fully seated—loose connections cause pump failure.
32. Verify all connections are secure by gently tugging on each hose and the electrical connector—should not pull off.
33. Reinstall the drain pump filter by screwing it back into the pump housing (turn clockwise). Tighten firmly but not excessively.
34. Close the drain pump filter access panel.
35. Return the washer to its upright position carefully with an assistant's help.
36. Reconnect the drain hose to the back of the washer and secure with the clamp.
37. Reconnect the water supply hoses to the back of the washer and tighten firmly.
38. Move the washer back into position against the wall.
39. Turn on the water supply by opening the hot and cold water valves.
40. Restore electrical power by plugging in the washer.
41. Run a test cycle to verify proper drain pump operation:Set the washer to a short drain/spin cycle with no loadListen for the pump motor running—should hear a smooth humming soundVerify water drains from the tub completelyAfter the cycle, check for water leakage around the pump, hoses, and filter
42. Check for any unusual sounds during the test cycle. Should not hear grinding, squealing, or loud humming.
43. Run a full wash cycle with a small load of towels to verify proper operation over an extended period.
44. Monitor for proper performance during the full cycle: smooth, quiet pump operation, complete water drainage, no water leakage, and no error codes displayed.
45. If the washer drains completely with quiet operation and no leakage, the repair is complete.

Safety Notes: Always unplug the washer and turn off water supply before working on internal components. Check for clogs in the filter, hoses, and tub outlet before replacing the pump. Have an assistant help when tilting or moving the washer—washers are heavy and can cause injury. Verify all hose and electrical connections are secure before testing. Test operation thoroughly before considering the repair complete. This repair requires moderate mechanical skills and typically takes 60-90 minutes for a qualified technician. If uncomfortable working with washer internal components, hire a professional appliance technician.

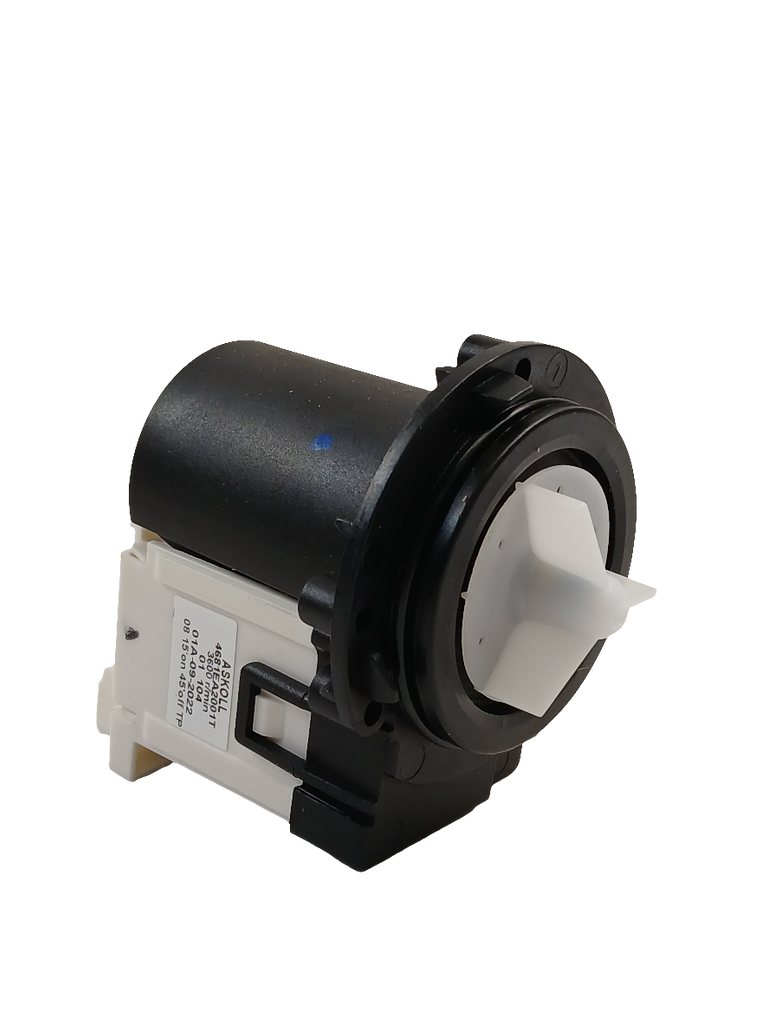

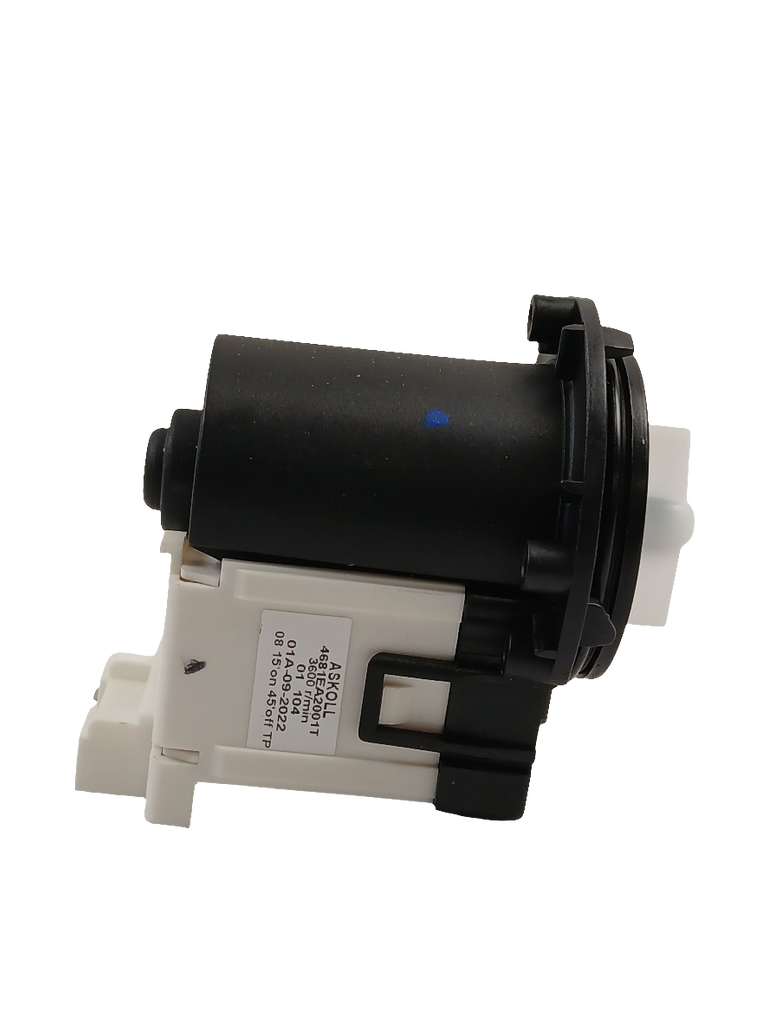

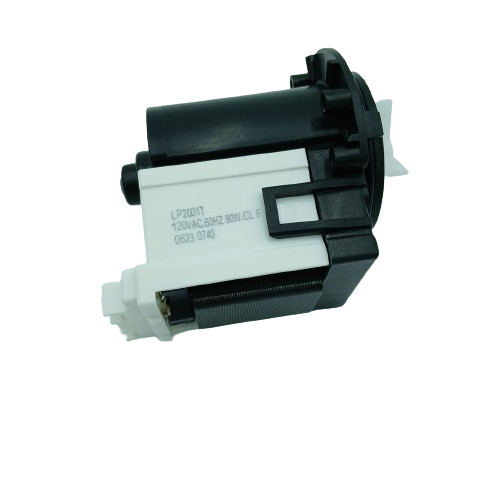

1. The 4681EA2001T is an ASKOLL-manufactured drain pump rated for 120V AC, 60Hz operation—always verify your washer model uses this exact voltage and frequency before ordering. LG manufactures washers with different pump types and voltage ratings (typically 120V AC or 240V AC depending on model and region). Installing the wrong voltage pump causes immediate failure or electrical damage. Always verify your washer model's pump voltage and frequency before ordering. The 4681EA2001T is rated for 120V AC, 60Hz. If your washer requires a different voltage, order the correct pump.
2. Before replacing the drain pump, always check for clogs in the drain pump filter, drain hose, and tub outlet—many "pump failures" are actually caused by clogs that prevent water flow. A clogged filter or hose restricts water flow, causing the pump to work harder and potentially fail prematurely. Before replacing the pump, remove and clean the drain pump filter thoroughly. Inspect the drain hose for kinks, clogs, or debris. Inspect the tub outlet for clogs. If clogs are found and removed, test the washer before replacing the pump. Many customers can solve drain problems by simply cleaning the filter without replacing the pump.
3. The drain pump should be tested for proper operation before replacement to confirm it has failed. Manually rotate the impeller by hand through the filter opening—it should spin freely with minimal resistance. If the impeller is stuck, damaged, or won't spin, the pump has failed. If the impeller spins freely but the washer still doesn't drain, the problem may be elsewhere (clogged hose, control board issue, or electrical connection problem).
4. A clogged drain pump filter is the most common cause of drain problems, accounting for 70-80% of "pump failure" cases—always clean the filter before replacing the pump. The drain pump filter traps lint, coins, buttons, and other debris, preventing them from damaging the pump impeller. Over time, the filter becomes clogged with lint, restricting water flow. Before replacing the pump, remove the filter (located at the bottom front of the washer), clean it thoroughly, and test the washer. If the washer drains after cleaning the filter, the pump does not need replacement.

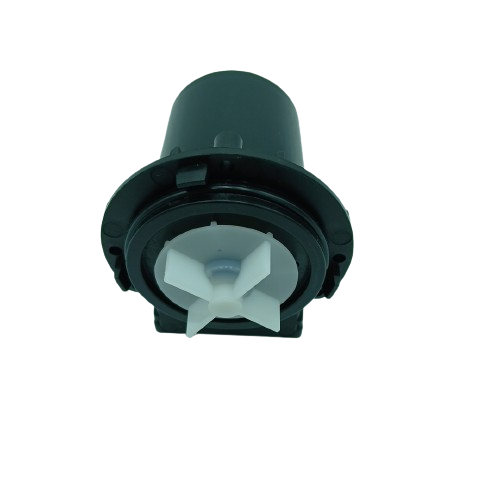

5. The drain pump impeller is the most common failure point—debris or foreign objects (coins, buttons, lint) can damage the impeller, preventing it from spinning and pumping water. If the impeller is damaged, cracked, or has chunks missing, the pump must be replaced. Inspect the impeller through the filter opening by shining a flashlight inside. If damage is visible, proceed with pump replacement. To prevent future damage, instruct customers to check pockets before washing clothes and to use a mesh laundry bag for small items.
6. Improper hose connections cause water leakage and pump failure—the inlet and outlet hoses must be connected to the correct ports according to the manufacturer's specifications. Connecting the hoses to the wrong ports causes water to flow backward, reducing pump efficiency and potentially damaging the pump. Always verify hose connections match your detailed photos and the service manual before reassembly. The inlet port (from tub) and outlet port (to drain hose) must be correctly identified.
7. Loose hose clamps cause water leakage and potential water damage to the washer—all hose clamps must be tight but not over-tightened. If a hose clamp is too loose, water will leak during operation. If over-tightened, the hose can be damaged or the clamp can slip. After installing the new pump, verify all hose clamps are tight by trying to rotate them with pliers—they should not move. Tighten any loose clamps.
8. If the new drain pump fails immediately after installation (within the first few cycles), the root cause of the original failure was not corrected. If the original failure was caused by a clogged filter or hose, and the clog was not removed before installing the new pump, the new pump will fail prematurely. Before replacing the pump, always check for and remove clogs in the filter, hoses, and tub outlet. If clogs are found, clean them thoroughly before installing the new pump.

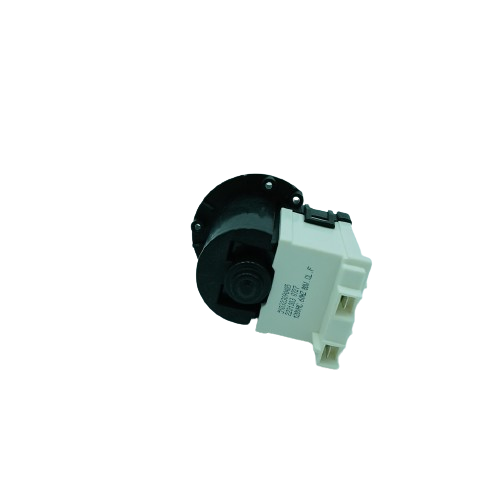

9. The pump electrical connector must be fully seated and secure—a loose connection causes pump failure or intermittent operation. After connecting the electrical connector, verify it's fully seated by trying to pull it off—it should not come off. If the connector is loose, the pump may not run or may run intermittently. Always verify the connector is fully seated before testing.
10. The drain pump housing material (durable plastic) provides corrosion resistance and lightweight design—a cracked or damaged housing causes water leakage and motor damage. The housing protects the motor and impeller from water damage. If the housing is cracked or damaged, the pump must be replaced. Always inspect the housing for cracks or damage before installation. If the housing is damaged, the pump should not be installed.
11. Proper pump mounting is critical for stable operation and vibration control—the pump must be securely mounted to the washer frame with no excessive play or movement. If the pump is not securely mounted, it can vibrate excessively during operation, causing noise and potential damage to hoses or electrical connections. After installing the new pump, verify it's securely mounted by trying to move it by hand—it should not move. Tighten any loose mounting screws.
12. After replacing the drain pump, monitor the first several wash cycles carefully to verify proper operation and check for water leakage. The washer should drain completely and quietly. If the washer doesn't drain or drains slowly, verify the filter is clean and all hose connections are correct. If water leaks from the pump area, verify all hose clamps are tight. Do not leave the washer unattended during the first few uses after pump replacement.

• Washer will not drain (pump not running, most common symptom)
• OE error code displayed (drain error, indicates pump failure or clog)
• Loud grinding or humming noise from pump area (damaged impeller or motor bearing)
• Water leaking from bottom of washer (failed pump seal)
• Washer stuck on drain cycle (pump running but not draining)
• Clothes remain soaking wet after spin cycle (incomplete drain)
• Burning smell from washer (motor overheating or electrical failure)
• Complete washer failure (control board detecting pump failure and stopping operation)
• Washer making loud noise during drain cycle (damaged impeller or bearing)
• Washer draining slowly (clogged impeller or weak pump motor)
• Washer not advancing through cycles (stuck on drain, waiting for water to drain)
• Water remaining in tub after cycle ends (pump not draining completely)
