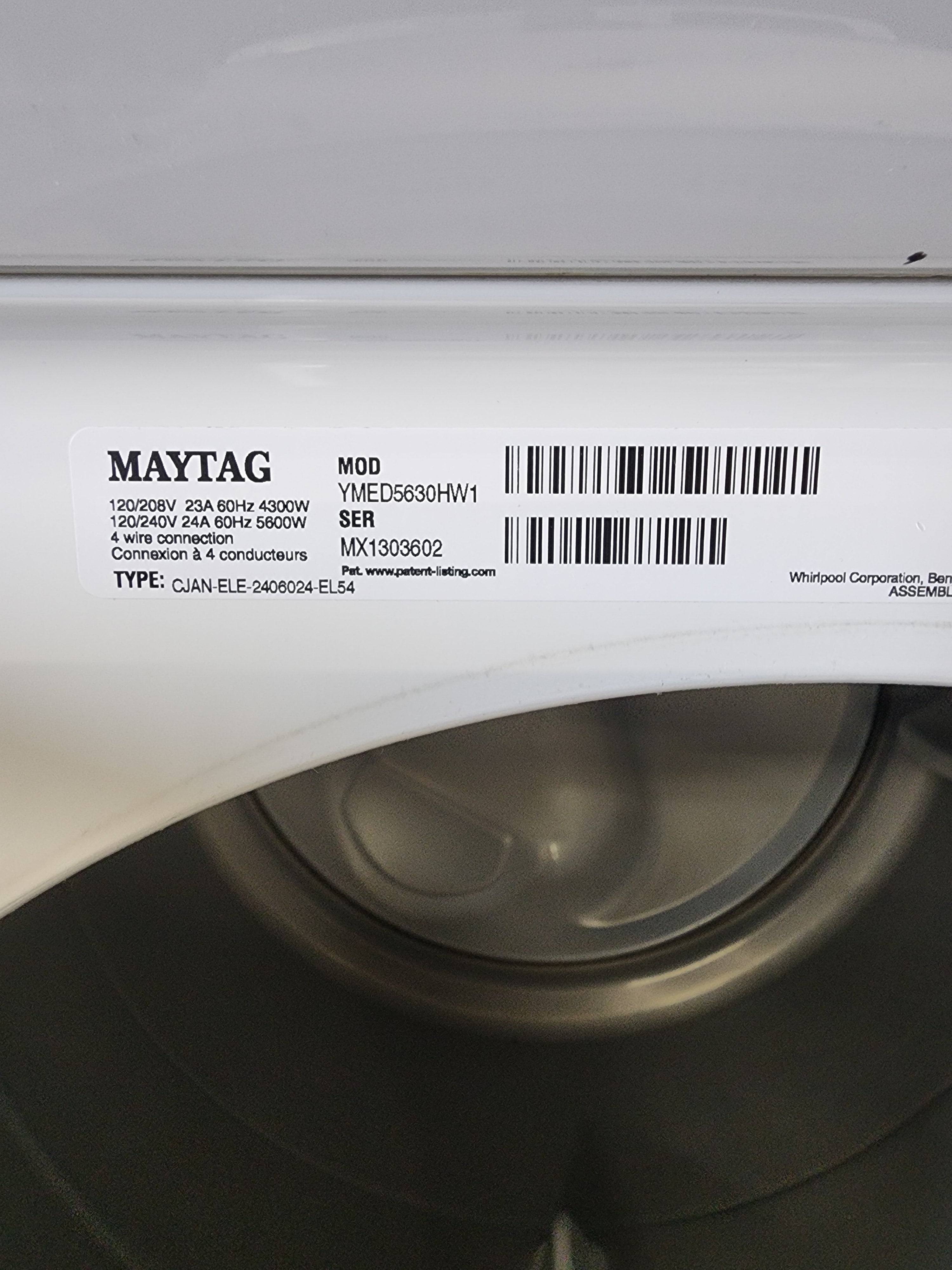

Maytag Electric Dryer YMED5630HW1 Parts Available for Shipping or Pickup

Browse manufacturer parts catalogued for the Maytag YMED5630HW1 front-load electric dryer. Request current pricing and availability, and XPart Supply can locate the part, inspect or test it where applicable, pick it, pack it, and arrange shipping or local pickup.

Model: YMED5630HW1Brand: MaytagAppliance: Electric Dryer111 Unique Part Numbers
This listing is for parts from the appliance—not the complete dryer. Parts may be removed as orders are confirmed. Optional accessories and service items are catalogue references and may not be physically included with the unit. Contact us with the complete model, serial number, and requested part number for current price, condition, fit verification, and availability.
1. Find ItSelect a part below.
2. Request a QuoteSend the model, serial number, and part number.
3. We Prepare ItWe locate, inspect, pick, and carefully pack it.
4. Ship or PickupChoose delivery or local pickup.

Parts Found in Maytag Dryer YMED5630HW1

Search by part name, number, category, or description. Catalogue inclusion does not confirm XPart live stock.

Category Part Part Number Description Condition Availability Quote
Airflow & Venting Air Duct W11677720 Directs heated air through the dryer airflow path and toward the drum. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw WP488729 Secures the applicable dryer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Rear Bulkhead W11299300 Supports the rear of the drum and related airflow and drive components. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Nut, 3/8-16 LH WPW10080190 Secures the applicable threaded dryer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Washer W11236646 Spaces or secures the applicable threaded or rotating component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drum & Drive Roller Support Tri-Ring WPW10512946 [DESCRIPTION NEEDED — VERIFY PART FUNCTION BEFORE PUBLISHING.] [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drum & Drive Drum Support Shaft, Left-Hand Threads WPW10359272 Provides the axle surface on which a drum-support roller turns. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drum & Drive Drum Support Roller WPW10314173 Supports the dryer drum and allows it to rotate smoothly. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drum & Drive Drum Support Roller Shaft, Right-Hand Threads WPW10359271 Supports the dryer drum and allows it to rotate smoothly. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Nut WPW10080210 Secures the applicable threaded dryer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drum & Drive Drum W10508188 [DESCRIPTION NEEDED — VERIFY PART FUNCTION BEFORE PUBLISHING.] [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drum & Drive Drum Baffle W10416098 Lifts and tumbles clothing inside the drum as it rotates. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw W10853898 Secures the applicable dryer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Seal W11193479 Helps prevent air leakage at the applicable dryer connection. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drum & Drive Drum Seal with Adhesive 280114 Seals the drum edge to help control airflow and prevent clothing from catching. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Heating & Safety Heating Element WP3387747 Generates the heat used to dry clothing in this electric dryer. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Heating & Safety Heating Element Connection Wire Kit 279457 Generates the heat used to dry clothing in this electric dryer. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Airflow & Venting Grille and Housing Assembly W10906551 Protects and directs airflow through the applicable dryer opening. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical & Controls Moisture Sensor WP3387223 Detects moisture in clothing so automatic cycles can determine when items are dry. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical & Controls Wiring Harness WPW10298258 [DESCRIPTION NEEDED — VERIFY PART FUNCTION BEFORE PUBLISHING.] [CONDITION TO CONFIRM] Quote Availability Quote This Part
Airflow & Venting Lint Screen W11758174 Captures lint from the dryer airflow before it reaches the exhaust system. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Front Bulkhead W11712678 Supports the front of the drum and houses the lint-screen and airflow area. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Airflow & Venting Outlet-Housing-to-Lint-Duct Seal W11676493 Helps prevent air leakage at the applicable dryer connection. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Airflow & Venting Lint Duct WPW10211896 Directs air from the lint-screen area toward the blower and exhaust. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Clip W10414388 Retains or secures the applicable dryer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drum & Drive Drum Support Pad W11409002 [DESCRIPTION NEEDED — VERIFY PART FUNCTION BEFORE PUBLISHING.] [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Collar W11688571 Spaces, supports, or seals the applicable dryer connection. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Airflow & Venting Blower Wheel WP697772 Moves heated air through the drum and pushes moist air through the exhaust. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Airflow & Venting Blower Housing WPW10211911 Encloses the blower wheel and directs dryer airflow. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw WP693995 Secures the applicable dryer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Heating & Safety Thermal Fuse W10909685 Opens the electrical circuit if unsafe heat is detected. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Heating & Safety Cycling Thermostat / Internal Bias WP8577274 Monitors and regulates dryer operating temperature during a cycle. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Airflow & Venting Exhaust Pipe WPW10342188 Carries heated, moisture-laden air toward the household exhaust vent. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Collar WPW10344699 Spaces, supports, or seals the applicable dryer connection. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Heating & Safety Heater Box W10802681 Houses the heating element and directs heated air into the dryer. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Heating & Safety High-Limit Thermostat WP8557403 Interrupts the heating circuit if dryer temperature rises beyond a safe limit. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Heating & Safety Thermal Cut-Off and High-Limit Thermostat Kit 280148 Interrupts the heating circuit if dryer temperature rises beyond a safe limit. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Bracket 8066099 Supports or secures the applicable dryer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Plug 8529007 Closes or covers the applicable dryer opening. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw W11590579 Secures the applicable dryer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical & Controls Canadian Power Cord, 14-30P 250V W11710615 Connects the dryer to the household electrical supply. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Strain Relief Clip W11712577 Retains or secures the applicable dryer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Maytag Medallion W10908007 Displays the Maytag brand identification on the dryer exterior. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw WP489463 Secures the applicable dryer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical & Controls Terminal Cover WPW10316167 Protects the dryer's main electrical terminal connection. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Bracket WPW10208382 Supports or secures the applicable dryer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Rear Panel W10487431 Closes and protects the rear cabinet area. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw W10850756 Secures the applicable dryer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Dryer Screw WP681414 Secures the applicable dryer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drum & Drive Idler Retainer WP3389420 Retains or secures the applicable dryer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Base W11215531 Forms the lower structural support of the dryer cabinet. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical & Controls Electronic Control Board W11388032 Controls dryer operating logic and communicates with sensors and powered components. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Panel W11233548 Forms a visible or structural section of the dryer cabinet. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Panel W11123144 Forms a visible or structural section of the dryer cabinet. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Strike WPW10208250 Engages the door catch to keep the dryer door closed. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw W11661566 Secures the applicable dryer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Cover Screw WP308685 Secures the applicable dryer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Panel Seal WP3387242 Seals the applicable cabinet-panel connection to reduce air leakage or vibration. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Switch W11427601 Detects whether the dryer door is closed and permits operation only when safe. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Leveling Foot 49621 Supports and levels the dryer to help reduce vibration and movement. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drum & Drive Idler Pulley with Bracket W10837240 Maintains drive-belt tension and guides the belt as the drum turns. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drum & Drive Idler Pulley 279640 Maintains drive-belt tension and guides the belt as the drum turns. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Dryer Spring WPW10446781 Provides tension or return force for the applicable dryer mechanism. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drum & Drive Multi-Rib Drive Belt 661570 Wraps around the drum and drive system so the motor can rotate the drum. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Clamp WPW10121316 Secures the applicable wire, duct, or component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical & Controls Drive Motor W11364931 Turns the dryer drum and powers the blower system. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical & Controls Motor Pulley, 60 Hz WP8066184 Transfers motor rotation to the dryer drive belt. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Bracket W11481730 Supports or secures the applicable dryer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Optional Accessory / Service Item Side Venting Kit W10323246 Provides components for an alternate side-exhaust installation. Optional Item — Confirm Included Quote Availability Quote This Part
Door & Lock Inner Door Assembly W11465962 Forms the inner structural section of the dryer door. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Outer Door Assembly W11310052 Forms the outer visible section of the dryer door. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Handle W10626039 Provides the grip used to open and close the dryer door. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw W10850046 Secures the applicable dryer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Bumper W11310051 [DESCRIPTION NEEDED — VERIFY PART FUNCTION BEFORE PUBLISHING.] [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Retainer W10208252 Retains or secures the applicable dryer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Window W11310036 Forms the transparent viewing section of the dryer door. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Window Seal W11310035 Seals around the door window to help prevent air leakage. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Cover W11310050 Protects or closes the applicable dryer area or component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Hinge Plate WPW10208419 Supports the dryer door and allows it to open and close correctly. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Hinge WPW10208415 Supports the dryer door and allows it to open and close correctly. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Dryer Door Cap WPW10208398 [DESCRIPTION NEEDED — VERIFY PART FUNCTION BEFORE PUBLISHING.] [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Catch W11240283 Receives or engages the door strike to keep the door secured. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Catch WPW10208254 Receives or engages the door strike to keep the door secured. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Hinge W11051465 Supports the dryer door and allows it to open and close correctly. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Documentation Use and Care Guide W11184585 Provides factory operation, care, and safety information. Reference Item — Confirm Quote Availability Quote This Part
Documentation Tech Sheet W11184899 Provides factory diagnostic, wiring, and service information. Reference Item — Confirm Quote Availability Quote This Part
Documentation Installation Instructions W11183136 Provides factory installation requirements and procedures. Reference Item — Confirm Quote Availability Quote This Part
Documentation Wiring Diagram W11241396 Shows factory electrical connections for diagnostic and service reference. Reference Item — Confirm Quote Availability Quote This Part
Documentation Quick Start Guide W11184894 Provides abbreviated factory operating instructions. Reference Item — Confirm Quote Availability Quote This Part
Cabinet & Panels Top Panel - White WPW10208383 Forms the upper exterior surface of the dryer cabinet. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Bracket W11310027 Supports or secures the applicable dryer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw W11686675 Secures the applicable dryer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Vented Console Bracket W11480682 Houses the user controls and display used to select drying cycles. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical & Controls Wire Harness W11316625 Carries electrical power or control signals between dryer components. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw WP8533993 Secures the applicable dryer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Console W11384511 Houses the user controls and display used to select drying cycles. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical & Controls Wire Harness W11109749 Carries electrical power or control signals between dryer components. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Optional Accessory / Service Item Acrylic Paint - White - 1 Quart 799344 Provides a colour-matched cosmetic finish for appliance surface repair. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Dryer Power Cord, 4-ft PT220L Connects the dryer to the household electrical supply. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Dryer Power Cord PT400L Connects the dryer to the household electrical supply. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Touch-Up Paint - White 72017 Provides a colour-matched cosmetic finish for appliance surface repair. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Touch-Up Paint W10446202 Provides a colour-matched cosmetic finish for appliance surface repair. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Grey Primer 350938B Prepares an appliance surface before touch-up or finish paint is applied. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Dryer Repair Kit 4392067 Combines common dryer drive components used during a drum-drive repair. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Test Kit W11224254 Factory service tool used to test or diagnose the applicable dryer system. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Hold-Down 346764A Secures the appliance or applicable installation component in position. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Door Reversal Kit W10315283RP Provides components used to change the dryer-door opening direction. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Drying Rack W10322470A Supports items that should dry without tumbling in the drum. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Stack Kit W10869845 Secures a compatible dryer above a compatible front-load washer. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Universal Dryer Power Cord, 60" 544150 Connects the dryer to the household electrical supply. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Spray Paint - 12 oz. - White 350930 Provides a colour-matched cosmetic finish for appliance surface repair. Optional Item — Confirm Included Quote Availability Quote This Part
No matching parts were found. Try a shorter part number or broader description.
Fitment Tip:
Matching only the appliance name is not enough. Send the complete YMED5630HW1 model and serial number so XPart Supply can check production revisions and confirm the correct part before it is removed or shipped.

What Happens After You Request a Quote?

We confirm whether the requested component is still with the unit, review its condition, verify the model information, and provide pricing. Once approved, the part can be picked, packed, shipped, or prepared for local pickup.

Part Condition

Condition varies by component. Your quote will identify whether the part is used, tested, inspected, new, or available by special order.

Need a Part From YMED5630HW1?

Send the part number, complete appliance model, serial number, and a photo when possible.
