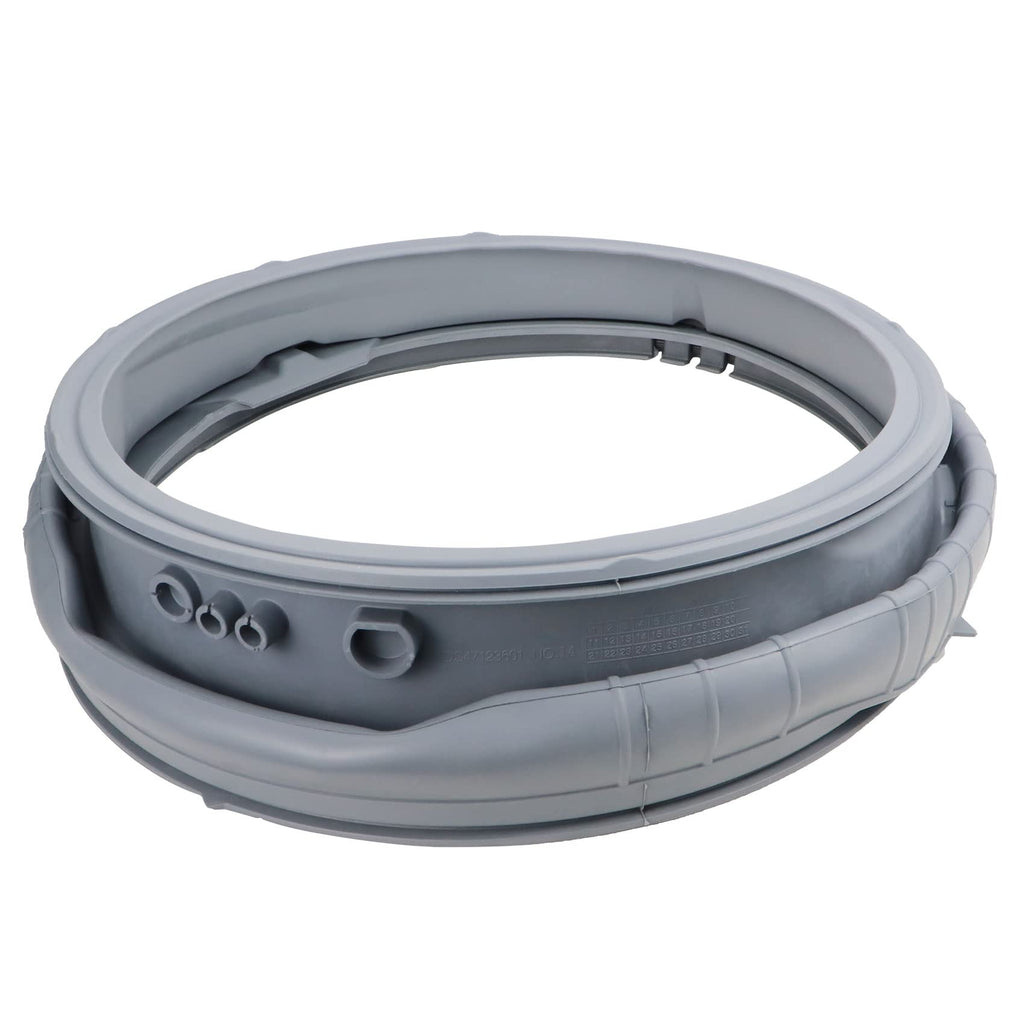

LG Washer Door Gasket / Door Boot Seal MDS47123602, Replaces MDS64237201, MDS64237202

Genuine LG front-load washer door boot gasket that forms the seal between the washer door and tub to help prevent water leakage.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Water pooling or dripping at the front door during operation
• Visible cracking, tearing, deformation, or displacement of the door boot
• Door may not close or lock correctly if the boot is damaged or misaligned
• Mildew, detergent residue, or persistent odor in the gasket folds

Check Before Replacing

• With the washer unplugged, inspect the entire gasket for tears, cracks, deformation, foreign objects, or areas pulled out of the retaining groove.
• Check that the gasket is evenly seated around the door opening and that its drain openings, if present, are unobstructed.
• Clean the gasket folds with a soft cloth and inspect for trapped clothing or debris that could prevent sealing.
• If leakage is observed, monitor the door-seal area during a supervised rinse cycle; do not operate the washer if water reaches electrical components.

Pro Tip

Part Details

Key Features

• Genuine LG washer door gasket/door boot seal
• Designed for select LG and Kenmore front-load washers
• Seals between the washer door and tub
• LG Canada lists the part under Washer Gasket, part number MDS47123602
• LG describes the part as easy to install

Installation Notes

• Disconnect electrical power before beginning service and shut off the water supply to reduce shock and flooding risks.
• Use the appliance model-specific service instructions because door-boot retaining arrangements and access procedures can vary by washer version.
• Before removing the old boot, note its orientation and the position of any drain openings or molded features.
• Seat the replacement boot evenly in the tub and door grooves and ensure the retaining hardware is fully and evenly secured before reassembly.
• After installation, inspect the seal for folds or pinching and run a supervised rinse check for leakage.

Verified Compatible Models

WM2601HL, WM2601HR, WM2601HW, WM2701HV, WM3050CW, WM3150HVC, WM3150HWC, WM3170CW, WM3250HWA, WM3370HRA, WM3370HVA, WM3370HWA, WM3650HVA, WM3670HRA, WM3670HVA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
