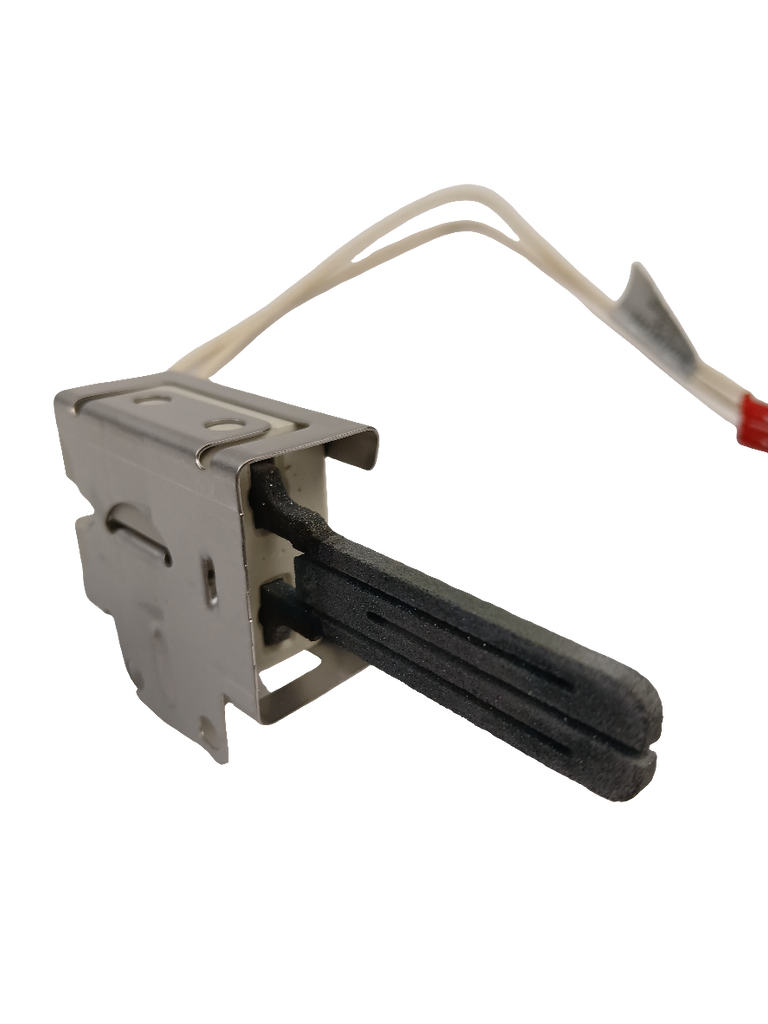

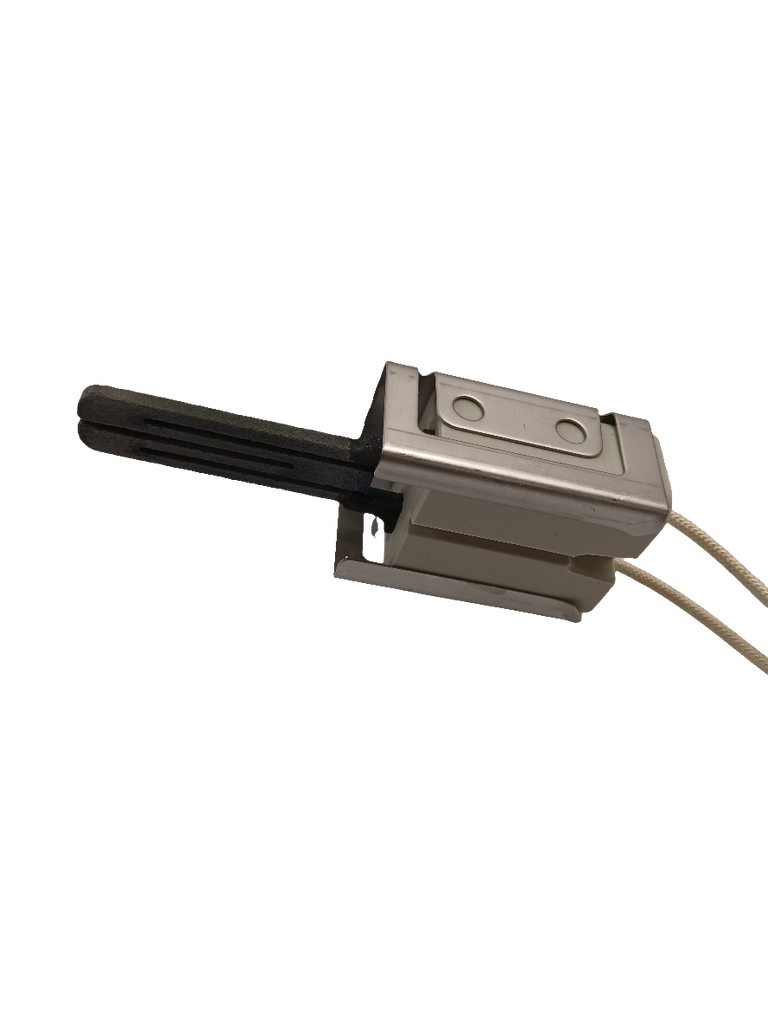

LG Range Oven Igniter MEE61841401, Replaces MEE61841402, MEE61841403, MEE62306201, MEE63084901, MEE64291601

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Igniter glows but the gas flame does not ignite
• Oven will not start or heat
• Little or no heat during baking
• Slow or delayed ignition
• Uneven baking or inaccurate oven temperature

Check Before Replacing

• With the oven controls calling for Bake and while observing from a safe position, check whether the igniter glows and whether the burner ignites; do not attempt to bypass the safety valve.
• If the igniter glows for approximately 90 seconds without ignition, the igniter may be too weak to open the safety valve; this does not by itself prove the igniter is defective.
• If the igniter does not glow, disconnect power and inspect the connector and wiring for loose connections, damage, or pinching before testing continuity with a suitable multimeter.
• If gas odor is strong or persistent, stop testing, avoid flames or electrical switching, shut off the gas supply if safe, and contact a qualified technician or gas utility.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power and allow the oven to cool completely before service.
• Close the range gas shut-off valve before accessing the burner and igniter.
• Remove only the oven panels or burner shield needed to access the igniter, and retain the original screws and hardware.
• Disconnect the wire connector without pulling on the wires; route the replacement wiring away from hot surfaces and sharp edges.
• Mount the igniter securely in its original position and ensure the burner shield and oven panels are correctly reseated before restoring power and gas.
• Verify ignition during a controlled Bake test; if ignition is delayed, absent, or accompanied by gas odor, stop use and obtain qualified service.

Verified Compatible Models

LDG4313ST, LRG3194BD, LRGL5821S, LRGL5823S, LRGL5825F, LSG4511ST, LSG4513BD, LTG4715BD, 72176033610, 76033, 76037, FA424GFS, FA434GFA, FB4112NS, FB4115NS, FB4122NB, FB4122NS, FB4122NW, FB4125NB, FB4125NS, FB4125NW, FB4332NS, FB4333NS, FB4335NS, FB4337NS, FB4733LS, FB4753LS, FB4763LS, FG4114ES, FG4124EB, FG4124ES, FG4124EW, FG4134EB, FG4134ES, FG4134EW, FG4322ES, FG4331EB, FG4331ES, LDG3011ST, LDG4313BD/00, LDG4315BD, LDG4315ST, LRG3091ST, LRG3095SW, LRG3194BM/00, LRGN6323Y, LSG4513BD/00, LSG4515ST, LSGL5833D/00, LSGL5833F/00, LSGL6335D/00, LSSG3016ST, LSSG3016ST/00, LSSG3019BD, LSSG3019BD/00, LSSG3020BD

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
