Miele Dishwasher Drain Pump Motor 11025001

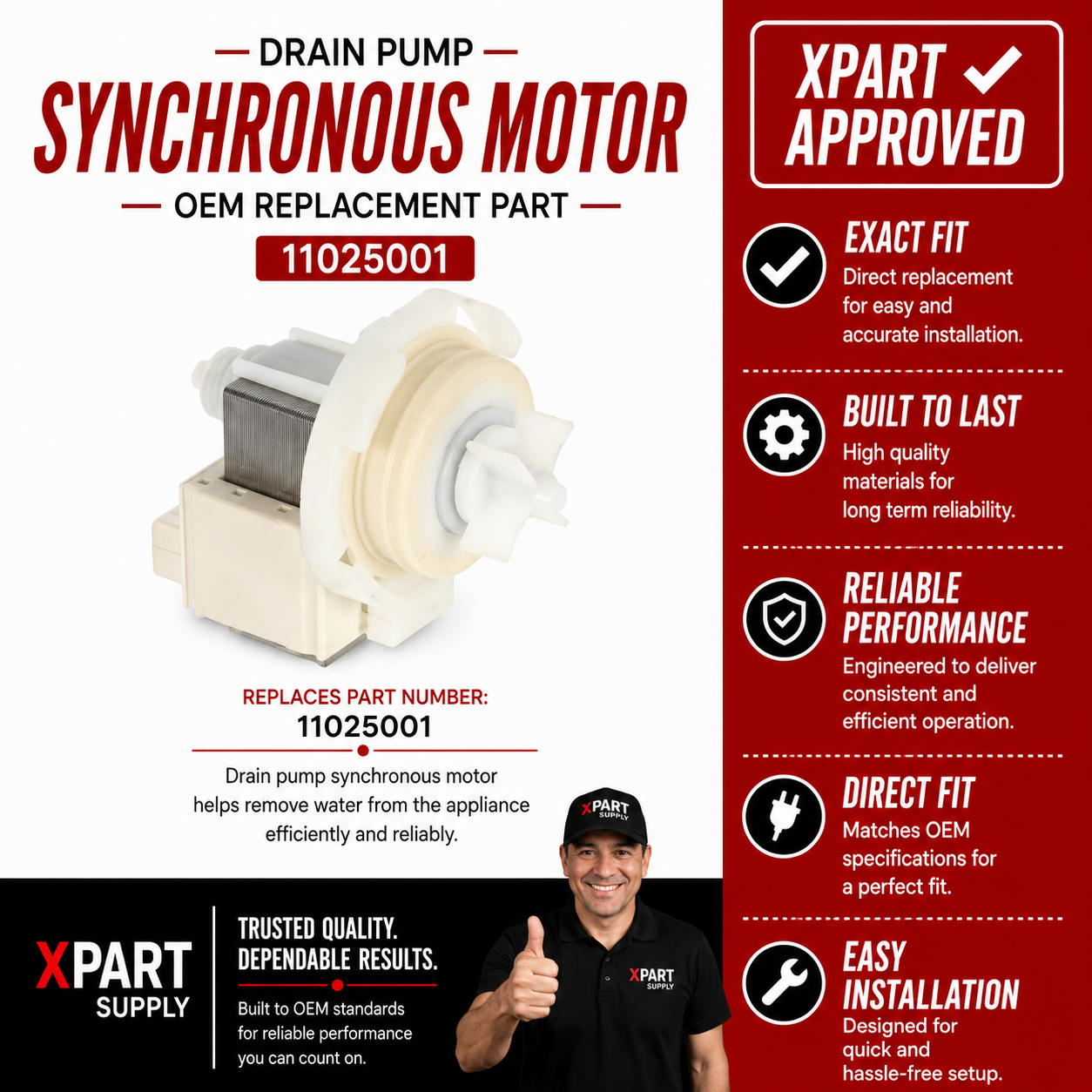

The Miele 11025001 Drain Pump Motor is the synchronous motor that powers the drain pump impeller, forcing water out of the dishwasher tub through the drain hose at the end of each cycle. When this motor fails — whether seized by debris, burned out, or failed silently — water cannot be expelled and remains standing in the tub. Replacing it restores full draining immediately on compatible Miele dishwasher models.

Is This the Right Part?

Confirm the complete model number before ordering. Drain pump motors vary by motor type, connector configuration, impeller thread direction, and mounting orientation — a visually similar motor may not be electrically or mechanically compatible.

Common Symptoms

• Standing water in the bottom of the dishwasher tub after the cycle ends
• Dishwasher stops mid-cycle and displays a drain fault or F11/F12 error code
• Drain pump hums but water does not drain — impeller blocked or motor seized
• Drain pump is completely silent during the drain phase of the cycle

Check Before Replacing

• Remove and clean the drain filter assembly — a fully blocked filter causes identical standing water symptoms and is a free fix before condemning the motor
• Inspect the drain hose for kinks, blockages, or a clogged standpipe connection — a restricted hose prevents draining without a faulty pump motor
• Check the pump impeller for broken glass, debris, or a foreign object that may have seized the motor — clearing the impeller sometimes restores function without replacement
• Verify the drain pump receives voltage during the drain phase — if the motor gets power but doesn’t run, the motor is failed; if it receives no power, the control board or wiring harness is the fault

Part Details

Installation Notes

1. Disconnect power before beginning — unplug the dishwasher or switch off the circuit breaker.
2. The drain pump is typically accessed by removing the lower kick panel and tilting the dishwasher, or from inside the tub by removing the filter and sump cover.
3. Photograph the wire harness connections and drain hose routing before removal.
4. Compare the replacement motor with the original — confirm connector type, impeller thread direction, and mounting orientation match before installing.
5. Restore power and run a short cycle to confirm full draining with no leaks at the pump housing.

Use a qualified technician when diagnosis or installation is outside your experience.

Verified Compatible Models

Contact XPart Supply with your complete Miele model number to confirm fitment before ordering. Drain pump motors are model-specific.

Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering.
