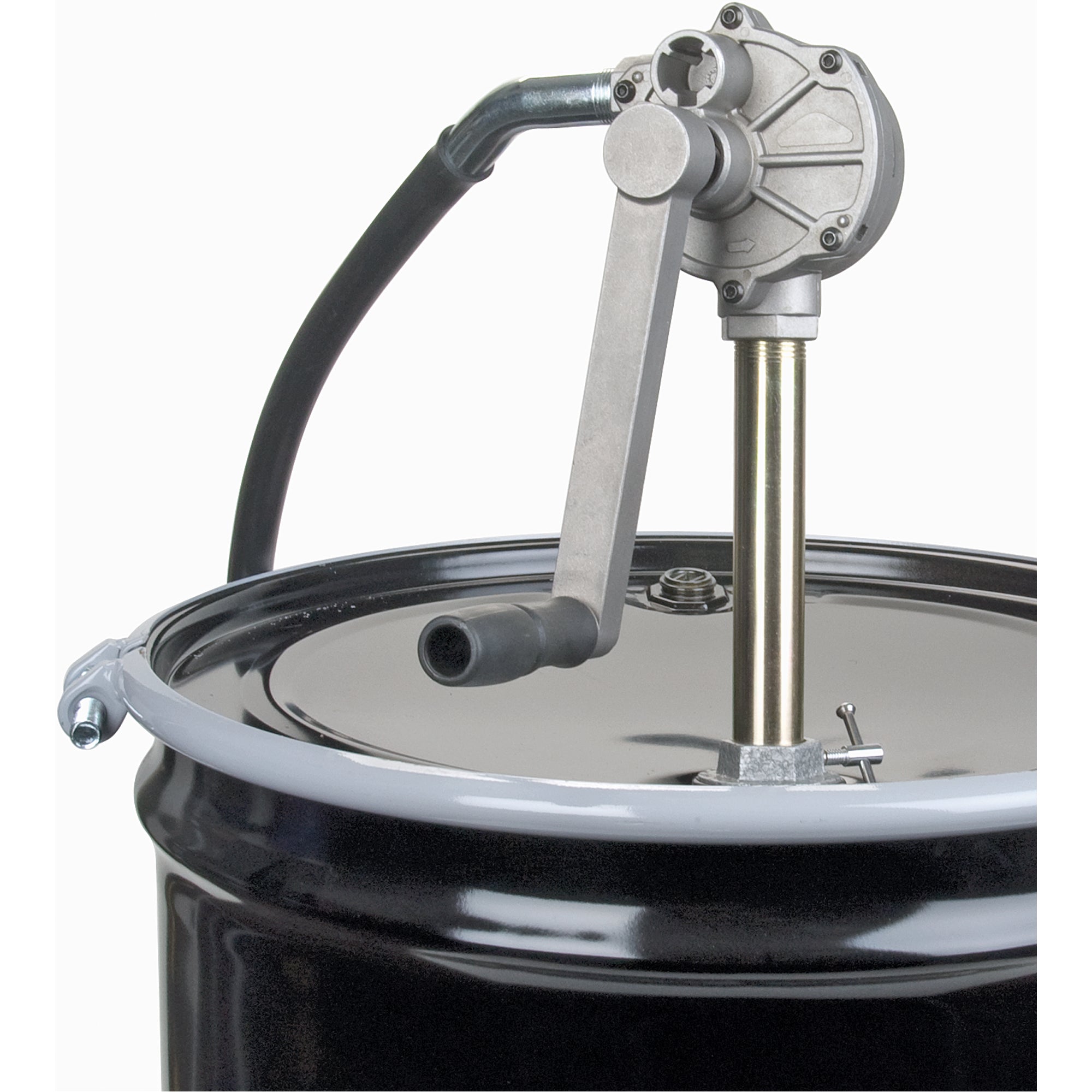

Kleton Rotary Drum & Pail Hand Pump Rotary Type Drum Pump, Aluminum, Fits 15-55 Gal., 6-3/4 oz. per revolution

Kleton DC126 aluminum rotary drum pump for transferring low-viscosity, non-corrosive petroleum-based fluids and lubricating oils up to SAE30 from 15- to 55-gallon drums.

Is This the Right Part?

Common Symptoms

• Reduced output per revolution
• Failure to prime or transfer liquid
• Leakage around wetted or hose connections

Check Before Replacing

• Confirm the pump is installed on a compatible 15- to 55-gallon drum with a 2-inch bung adaptor.
• Check that the supplied discharge hose is connected and unobstructed.
• Test the handle through several complete revolutions and observe whether liquid transfer is consistent.
• Verify that the liquid is within the pump's documented chemical and viscosity application range.

Pro Tip

Part Details

Key Features

• Aluminum pump body
• 6-3/4 oz. transfer rate per revolution
• Fits 15- to 55-gallon drums
• 2-inch bung adaptor
• Safety locking latch included
• 3/4-inch diameter x 1.8 m PVC nitrile discharge hose included

Installation Notes

• Use with a compatible 2-inch bung opening on a 15- to 55-gallon drum.
• Confirm chemical compatibility of all wetted materials with the liquid being transferred.
• Disconnect or isolate the liquid source before servicing or removing the pump.
