Samsung 6.0 cu. ft. Smart Slide-in Gas Range in Stainless Steel NX60T8711SS

Samsung front-control slide-in gas range with Smart Dial, Air Fry, true convection, and a 6.0 cu. ft. oven capacity.

Is This the Right Part?

Check Before Replacing

• Confirm the complete model designation, including the revision suffix such as /AA-00, /AA-01, or /AA-02, before ordering replacement parts.
• Use the appliance's model-specific parts diagrams to identify components because parts lists vary by model revision.

Pro Tip

Part Details

Key Features

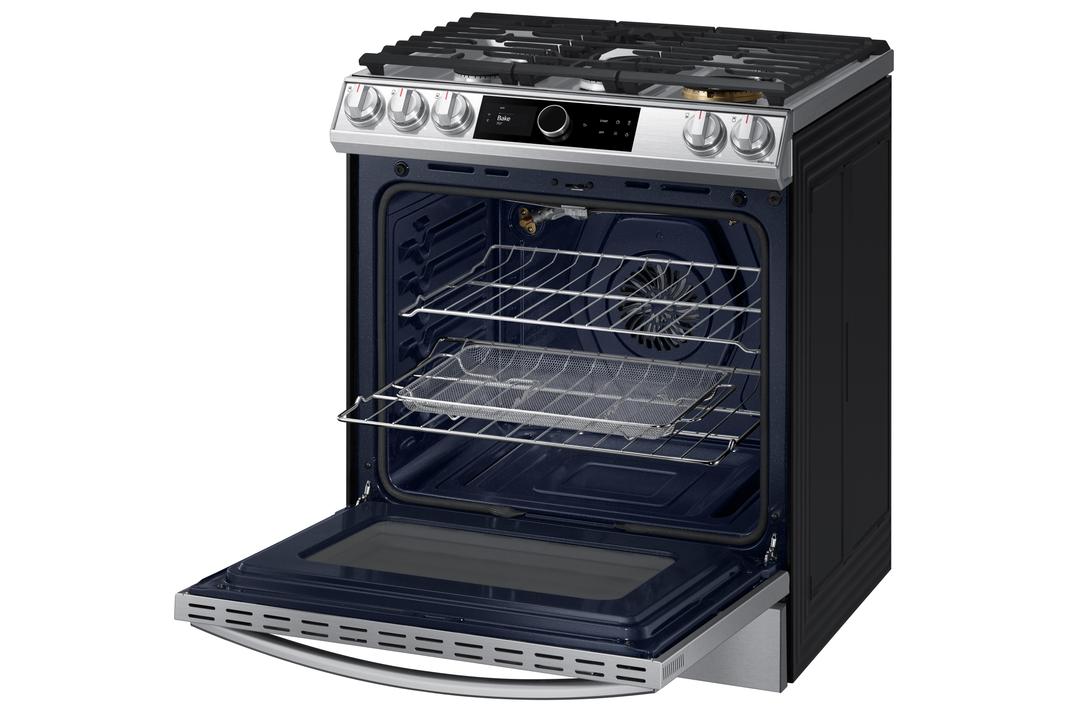

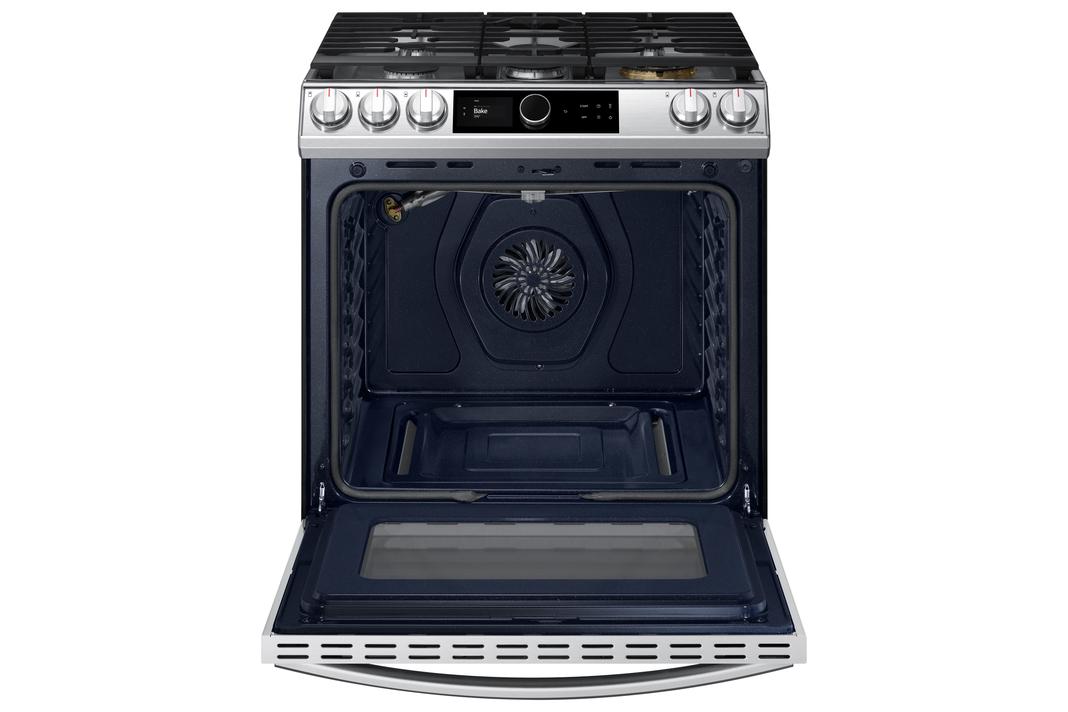

• 6.0 cu. ft. oven capacity

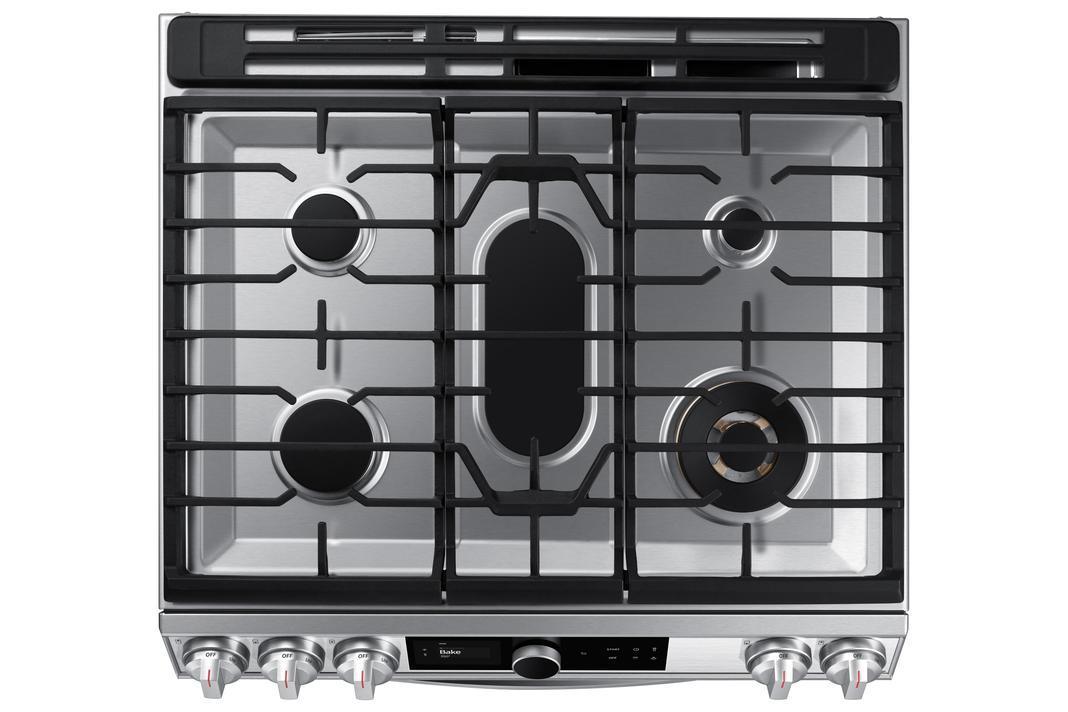

• Five-burner gas cooktop
• 22,000 BTU dual-ring right-front burner
• 16,000 BTU left-front burner
• 5,000 BTU right-rear burner
• 9,500 BTU left-rear burner','10,000 BTU center oval burner'

Installation Notes

• Requires a 120 V, 60 Hz, 20 A electrical supply.
• Specified cabinet opening is 30 inches wide.
• Outside dimensions are approximately 29 15/16 inches wide by 36 1/4–37 inches high by 28 11/16 inches deep.
• Gas and electrical installation should follow Samsung's installation documentation and applicable local requirements.

Verified Compatible Models

NX60T8711SS/AA-00, NX60T8711SS/AA-01, NX60T8711SS/AA-02

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
