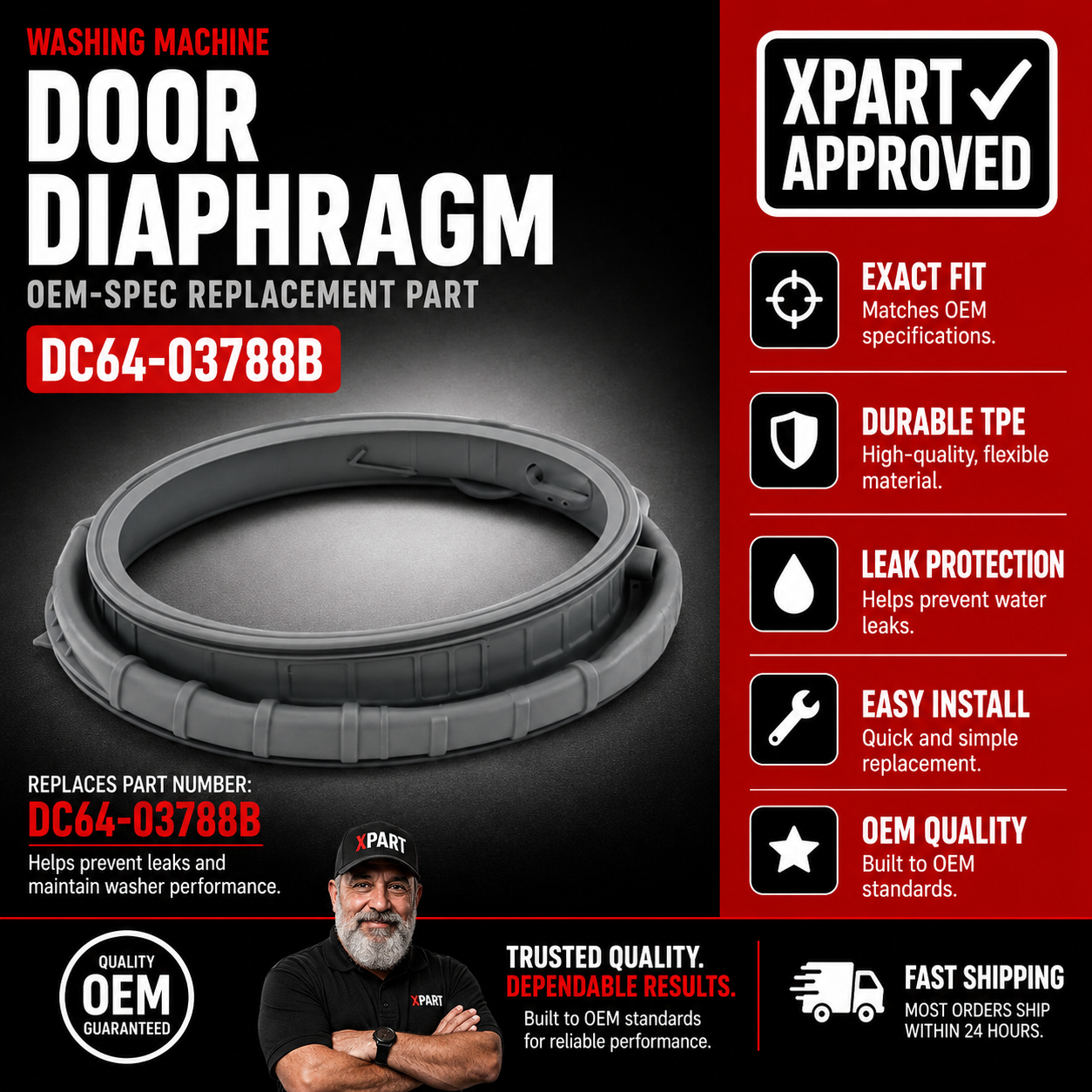

Washer Leaking from the Door? Door Boot Seal DC64-03788B – Stop Drum Leaks on Samsung Front-Load Washers Fast
A Samsung front-load washer that leaks water from the door during or after a cycle has a failed door boot seal (door diaphragm). In Samsung front-load washers, the door boot seal forms a watertight gasket between the drum and the door glass. When it tears, cracks, or develops mould damage, water escapes onto the floor during every wash cycle. ⚡ Common failure point in Samsung WF8000R, WF50, and WF53 series front-load washers. Part DC64-03788B is the genuine OEM Samsung door boot seal that restores a watertight drum seal with an exact factory fit — no modifications required.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer powers on and runs cycles normally
- ✔ Water leaks from the front door area — not from the back or bottom of the machine
- ✔ Door glass and door latch are intact — not cracked or broken
- ✔ Visible tear, crack, hole, or heavy mould buildup on the rubber door gasket
- ✔ ONLY problem is water leaking at the door seal during or after the wash cycle
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Water puddles on the floor in front of the washer during or after a cycle
- Visible tear, crack, or hole in the rubber door gasket
- Heavy black mould growth inside the door seal folds that cannot be cleaned
- Musty or mildew smell coming from the door seal area
- Water visible inside the door seal lip after the cycle ends
- Door seal feels stiff, brittle, or has lost its flexibility
✔ If these symptoms match, this is the confirmed failure point — the door boot seal is the only component that can cause front-door leaks on these models.
✔ In most cases, replacing this door boot seal stops the leak immediately and permanently.
📦 Part Details
- Part Number: DC64-03788B
- Type: Front-Load Washer Door Boot Seal / Door Diaphragm
- Note: DC64-03788A and DC64-03788D are separately listed Samsung diaphragms — verify your model number before ordering
- Brand: Samsung OEM
- Model Fit Count: 13 verified models
While the door seal is removed, inspect the door seal clamp ring and the drum lip for corrosion or damage — a damaged clamp ring prevents the new seal from seating properly and will cause the same leak to return. Clean the drum lip thoroughly before installing the new seal. If the clamp ring is bent or corroded, replace it at the same time to avoid a repeat service call.
⚙️ Installation
Skill Level: MODERATE — 45–60 minutes. Disconnect power before beginning. Remove the front panel and door assembly to access the boot seal clamp rings. Peel back the outer clamp ring, work the old seal off the drum lip, clean the drum flange thoroughly, then seat the new DC64-03788B seal onto the drum lip and reinstall both clamp rings. Restore power and run a short cycle to confirm the leak is resolved before reassembling the front panel.
💡 Pro Tip
Samsung door boot seals are a tight fit on the drum lip. Apply a thin bead of dish soap around the drum flange before seating the new seal — it lubricates the rubber without damaging it and lets the seal slide into position without tearing. Once seated, wipe away the soap and run a rinse cycle before your first full wash. Never use petroleum-based lubricants — they degrade the rubber and will cause the new seal to fail prematurely.
WF26BB8900ADAX, WF46DBH100AWA5, WF46DBH500AVA5, WF50A8800AV/US, WF50R8500AV, WF50R8500AV/US, WF50R8500AW/US, WF53BB8700ATUS, WF53BB8700AVUS, WF53BB8900ADUS, WF53BB8900AGUS, WF53BB8900ATUS, WF53DBH700AFA5
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
