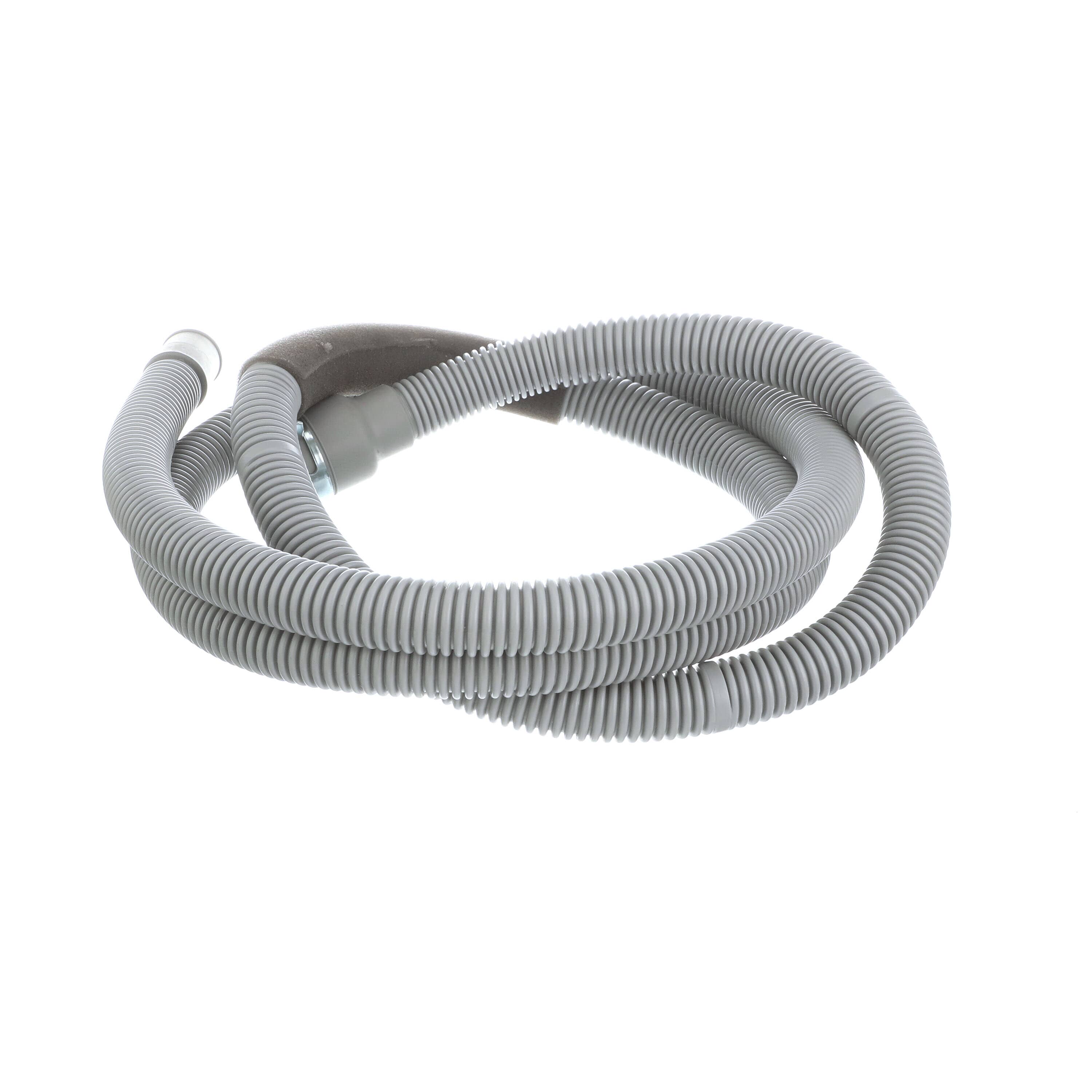

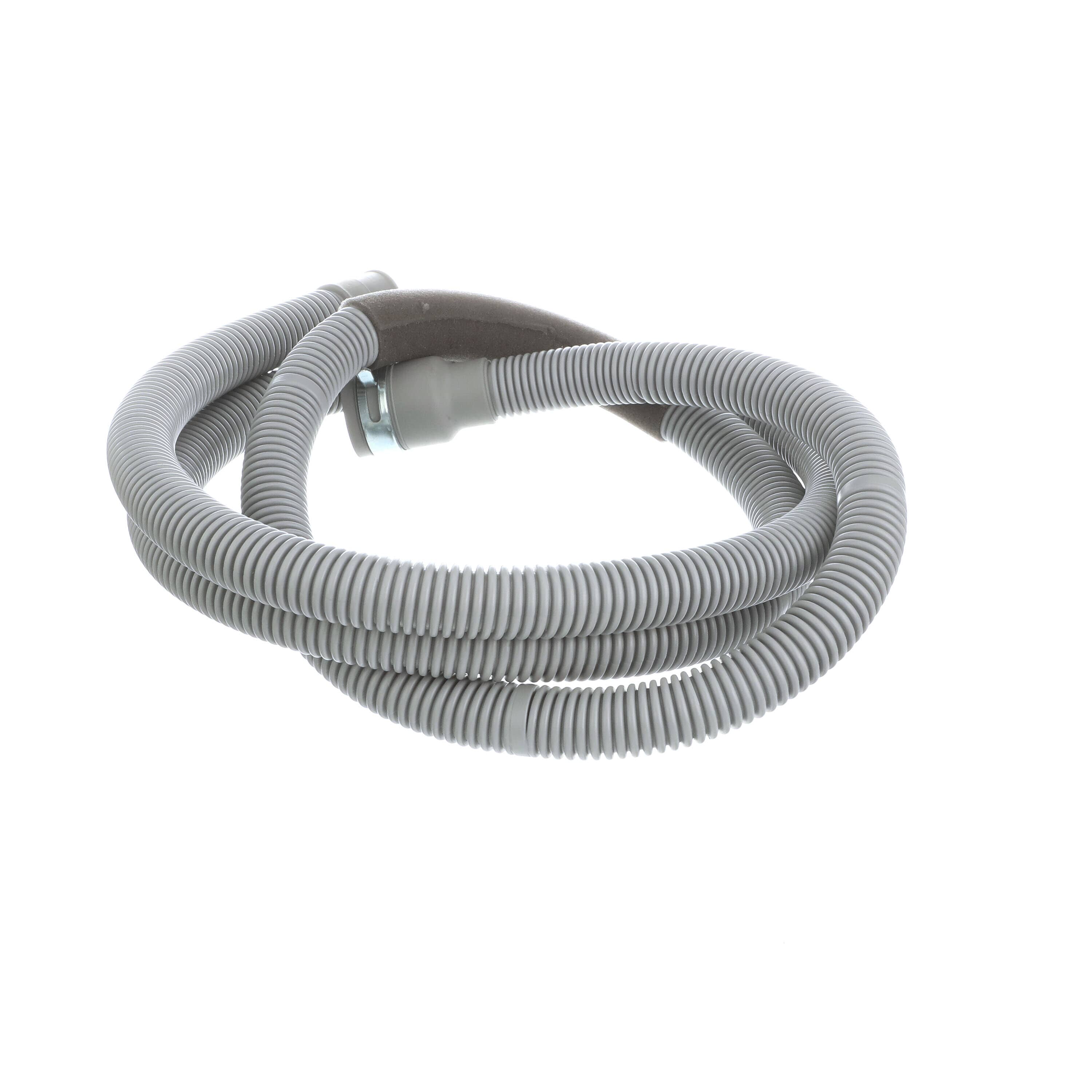

Samsung Washer Not Draining or Leaking Water? Drain Hose DC97-12534K – Fix Drainage Failure Fast
A Samsung washer that won't drain, leaves standing water in the drum, or leaks water onto the floor is often caused by a cracked, kinked, or failed drain hose. In most Samsung washing machines, the drain hose carries wastewater from the pump to the standpipe or utility sink. When it cracks, splits, or becomes blocked, the washer cannot complete the drain cycle, triggering error codes and leaving clothes soaking wet. ⚡ Common failure point in Samsung-built front-load and top-load washers. Part DC97-12534K is the genuine OEM replacement drain hose that restores full drainage and eliminates leaks immediately upon installation.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Your washer powers on and runs wash cycles — only drainage is the issue
- ✔ The drain pump runs (you can hear it) but water won’t exit the machine
- ✔ The standpipe or utility sink drain is confirmed clear — not a household plumbing blockage
- ✔ ONLY problem is no drainage, slow drainage, or water leaking from the hose connection
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Washer won’t drain — standing water remains in the drum after cycle
- 5E, 5C, E2, or ND drain error codes on the display
- Water leaking from behind or underneath the washer
- Clothes still soaking wet at the end of the spin cycle
- Visible cracks, splits, or kinks in the existing drain hose
- Musty smell from water trapped in the drum
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing the drain hose restores full drainage and eliminates leaks immediately.
📦 Part Details

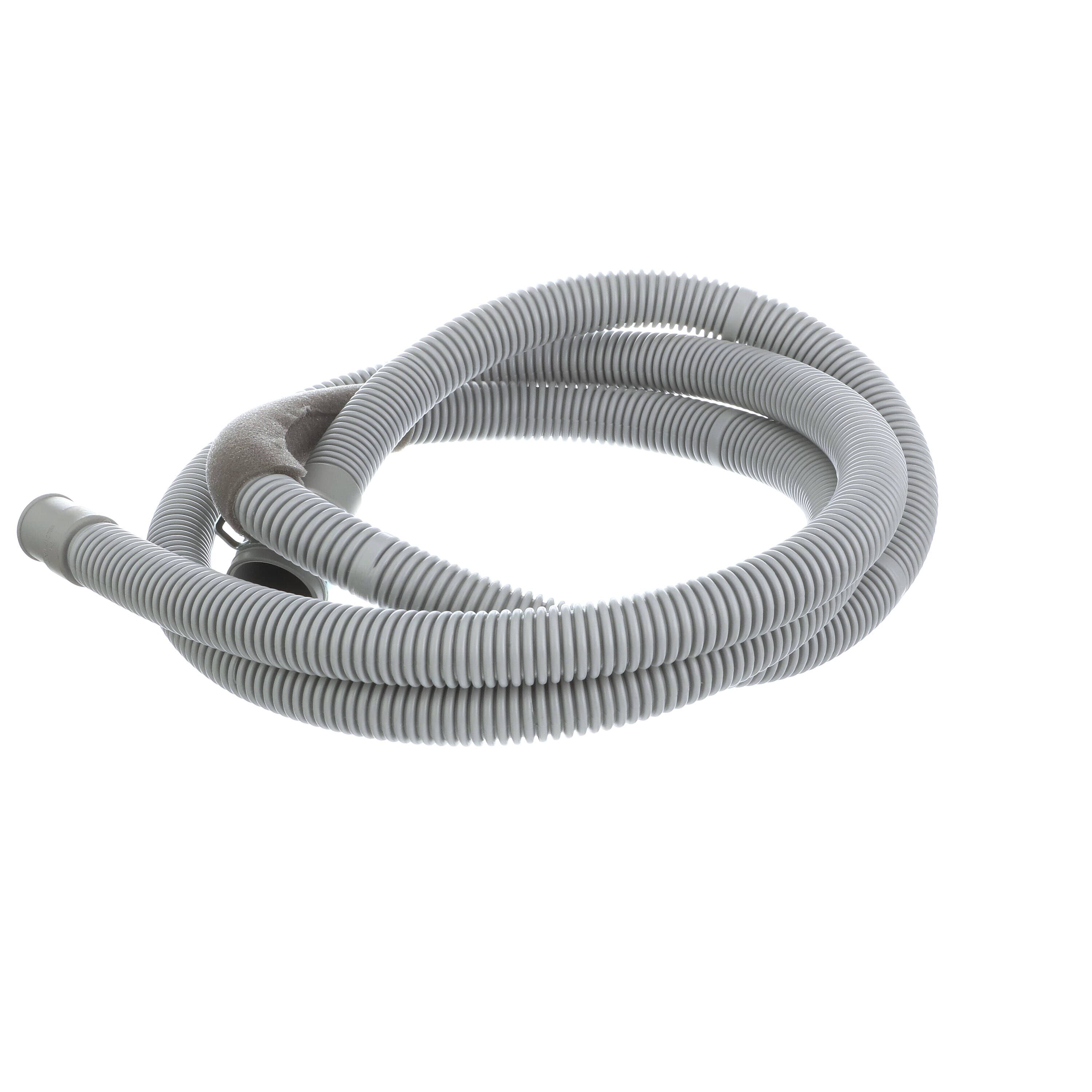

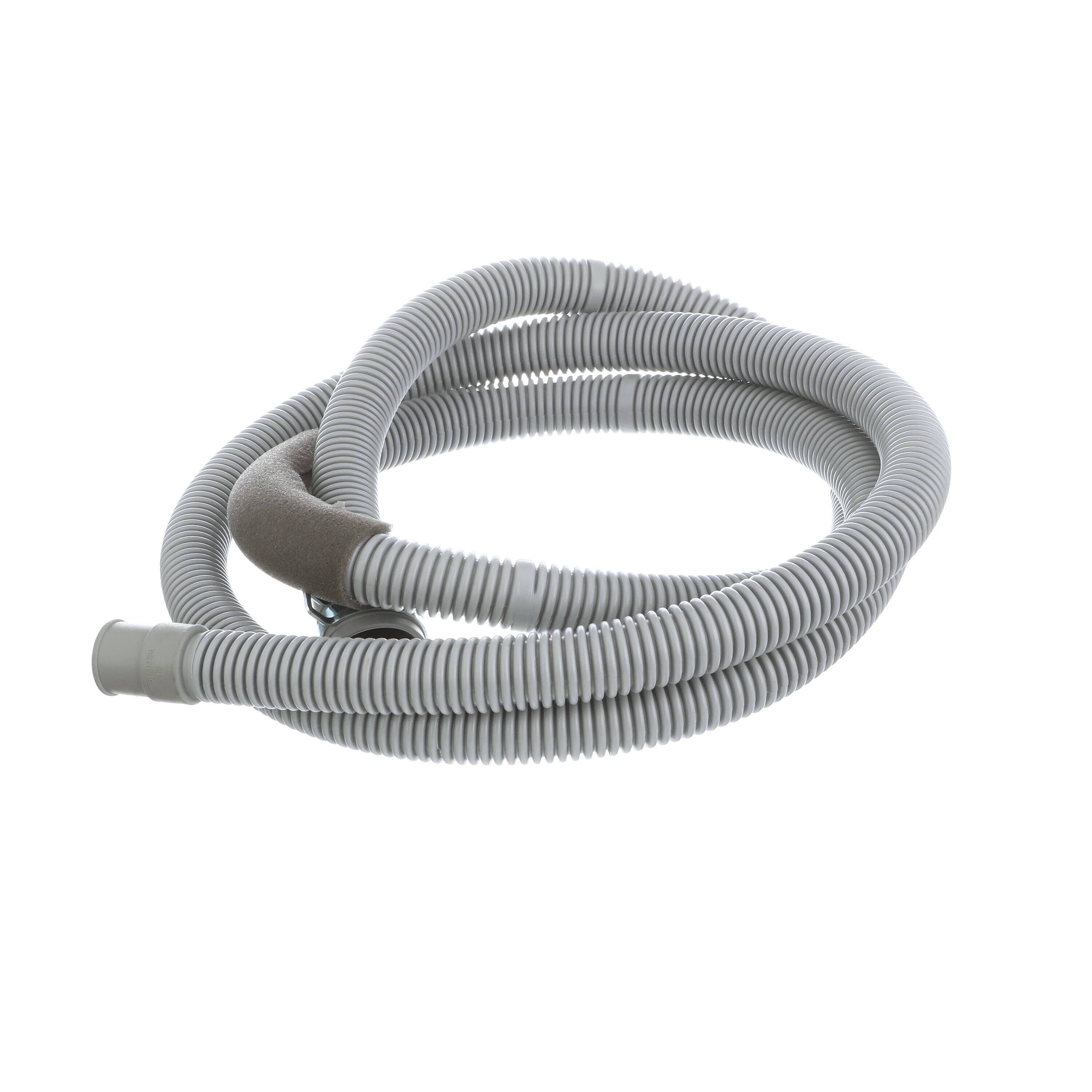

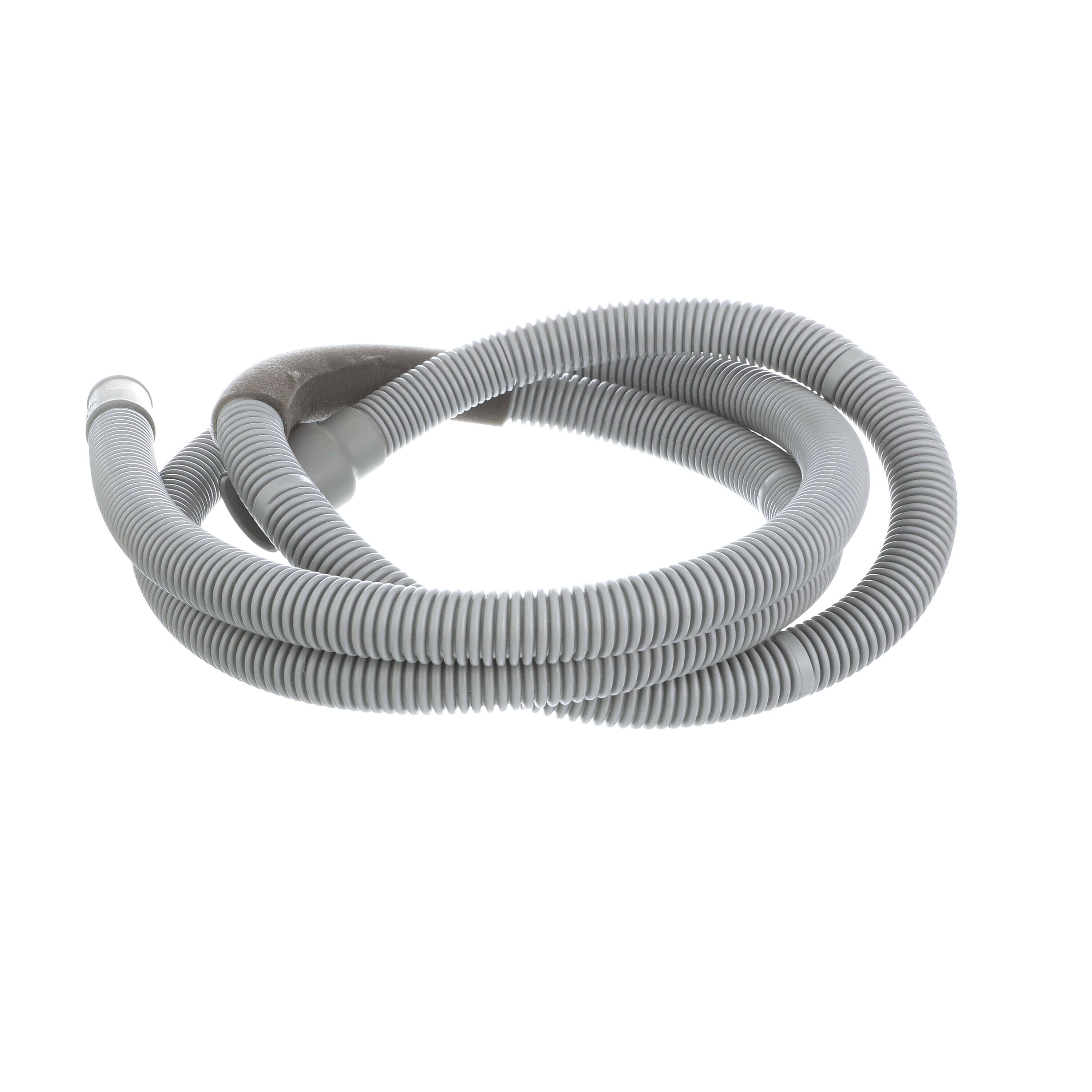

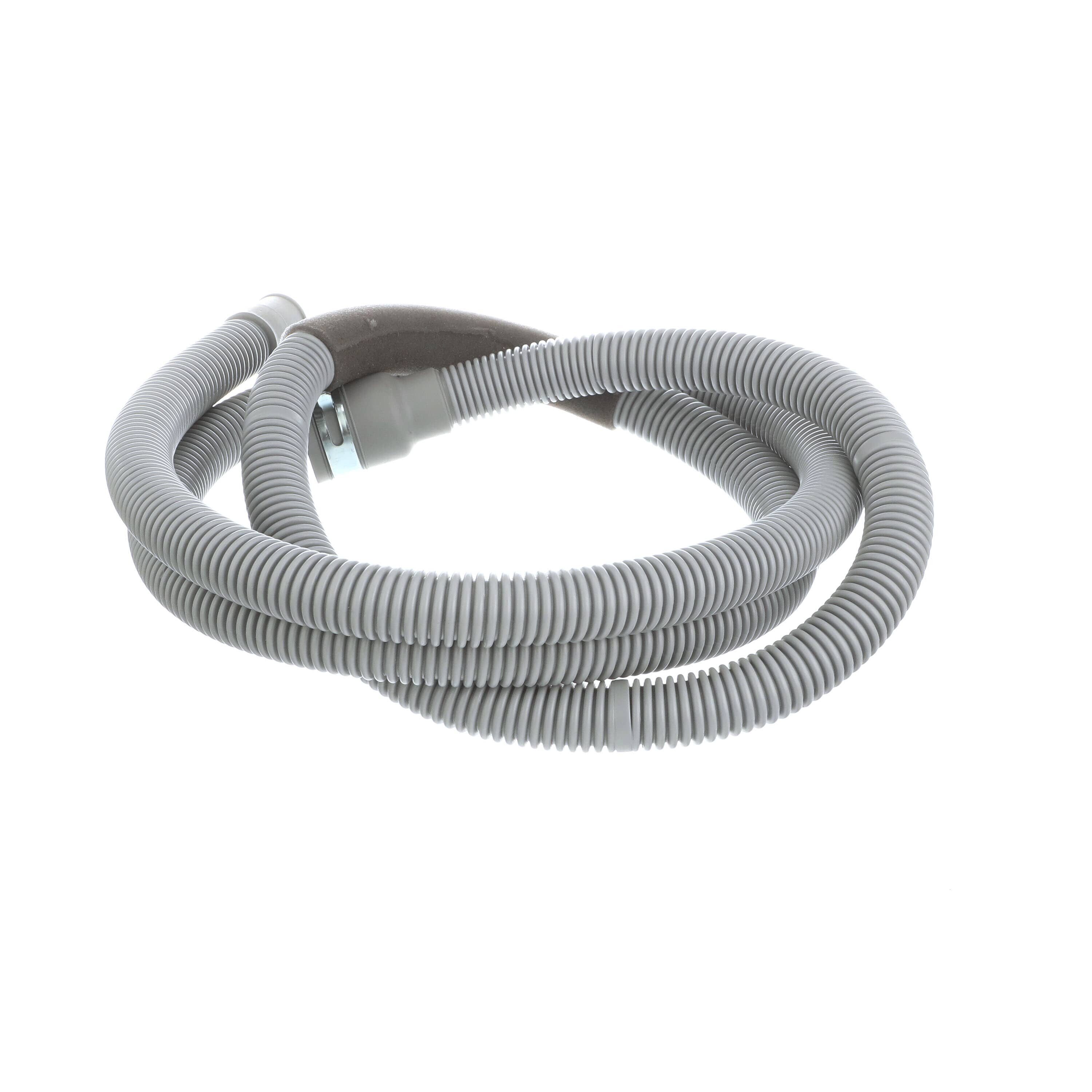

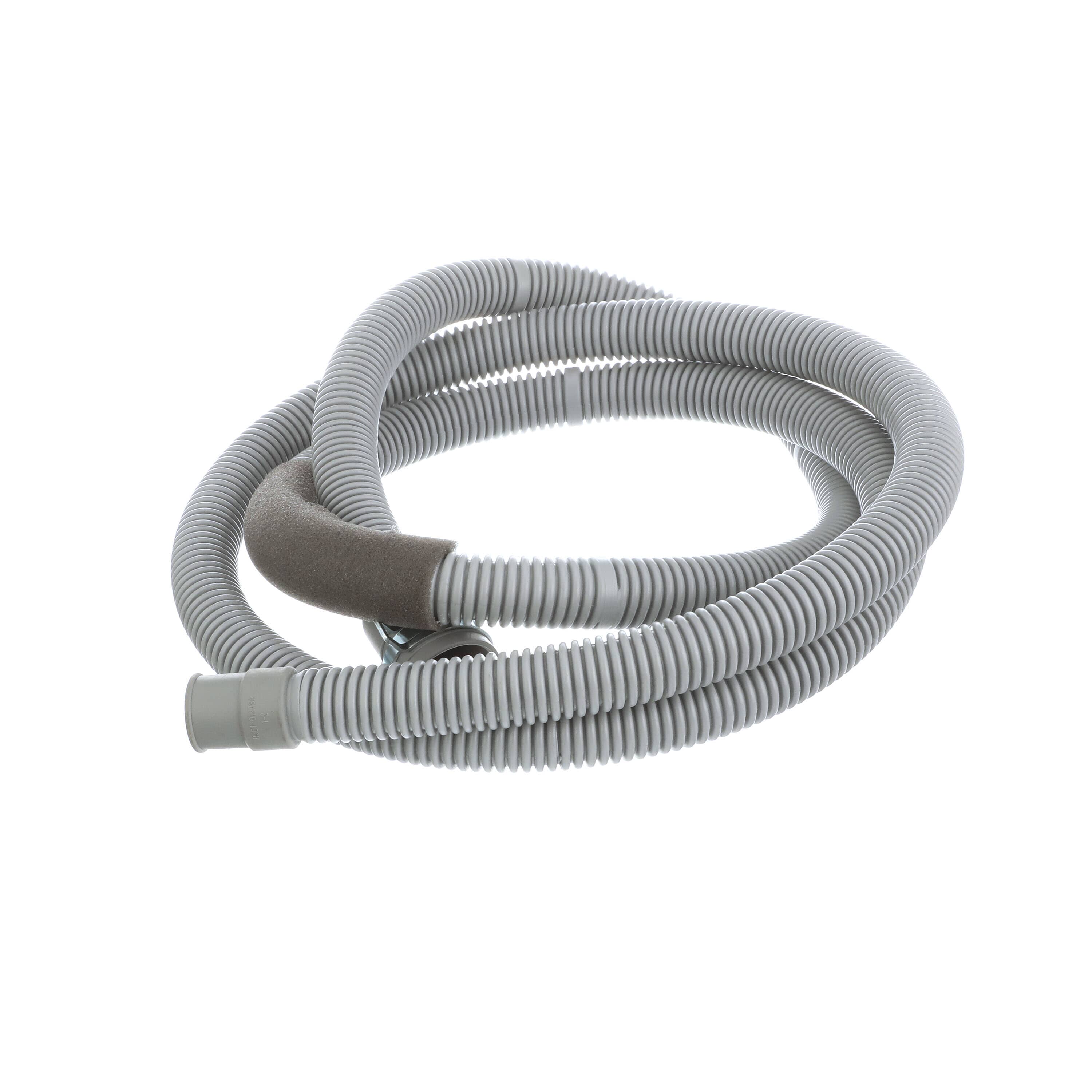

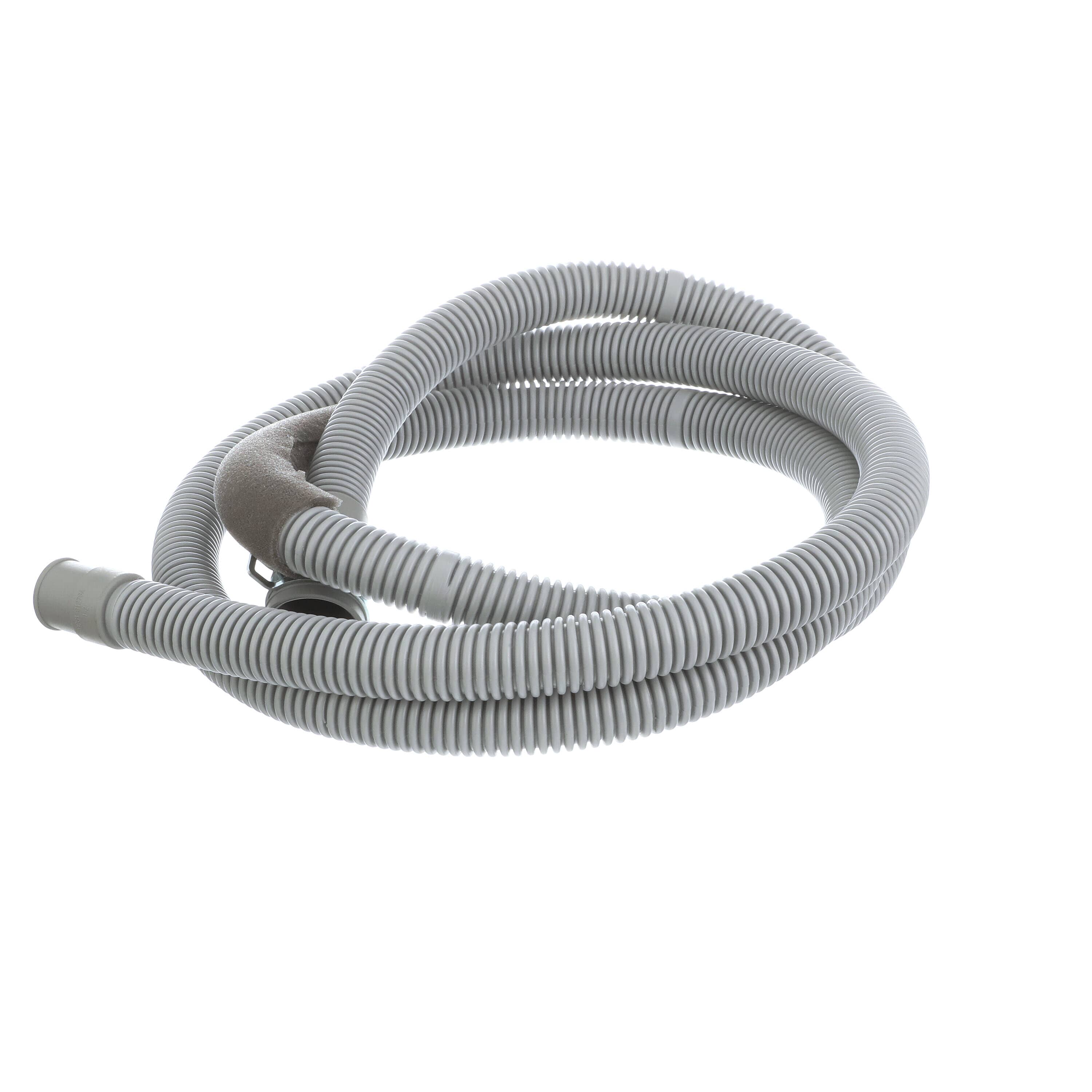

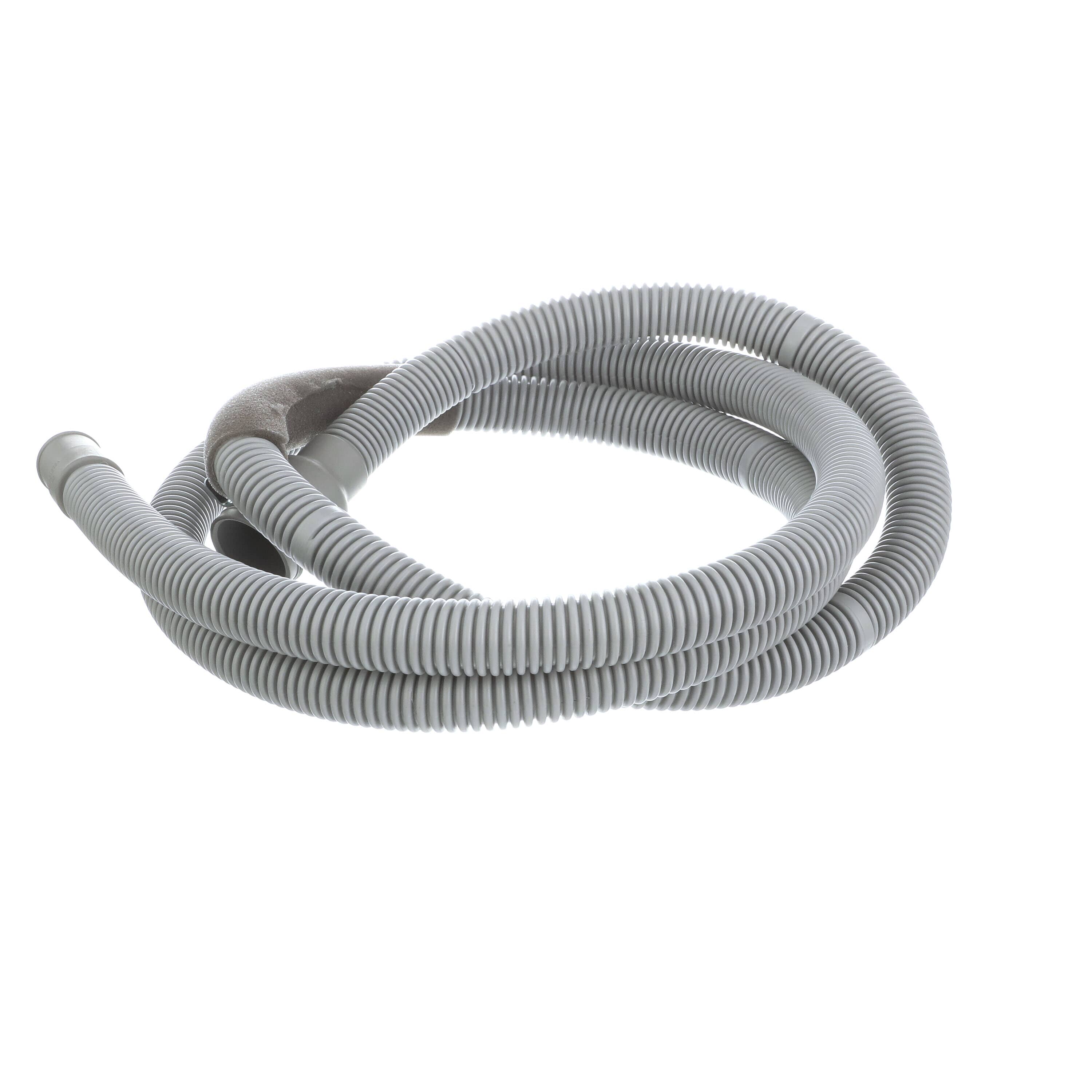

- Part Number: DC97-12534K
- Type: Washer Drain Hose — Full Length, OEM Samsung
- OEM: Genuine Samsung replacement part
- Brands: Samsung
- Application: Samsung front-load and top-load washing machines
While the hose is disconnected, inspect the drain pump filter and the pump itself for debris or damage. A clogged pump filter is a common secondary cause of drainage failure and takes 5 minutes to clean while you already have access. Also check the hose clamps at both ends — replace if corroded or cracked.
⚙️ Installation
Skill Level: Easy — 15–25 minutes. Disconnect power and water supply before servicing. Pull the washer away from the wall to access the rear drain hose connection. Loosen the hose clamp at the pump outlet, slide off the old hose, and route the new hose to the standpipe or utility sink connection. Secure both ends with clamps, restore power, and run a drain/spin cycle to confirm no leaks.
✓ Compatible Models
Confirmed compatible with select Samsung front-load and top-load washing machine models. Contact us to verify your model number before ordering.
💡 Pro Tip
Samsung requires the drain hose outlet to be positioned between 24–96 inches above the floor. If the hose is too low, water will siphon back into the drum continuously — causing the washer to appear to never fully drain even with a brand new hose. Secure the hose at the correct height with the included hose guide or a zip tie to the standpipe before running a test cycle.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
