Power Cord, Electric Range Power Cord, 4-Prong Power Cord, 4-Wire Power Cord, Range Power Supply Cord, 240V Power Cord

DG96-00048A, AP4241506, PS4241506, EAP4241506, 2065533, 4398866

Samsung

NE58F9500SS, NE58F9500SS/AA, NE58F9710SS, NE58F9710SS/AA, NE58K9500SG, NE58K9500SG/AA, NE58K9850WG, NE58K9850WG/AA, NE58R9311SS, NE58R9311SS/AC, NE58R9431SS, NE58R9431SS/AC, NE59J7630SS, NE59J7630SS/AA, NE59J7850SS, NE59J7850SS/AA, NE59M4320SS, NE59M4320SS/AA, NE59M6850SS, NE59M6850SS/AA, NE59M6851SS, NE59M6851SS/AA, NE59N6630SS, NE59N6630SS/AA, NE59R4321SS, NE59R4321SS/AA, NE59R6631SG, NE59R6631SG/AC, NE59R6631SS, NE59R6631SS/AA, NE59T4311SS, NE59T4311SS/AC, NE63A6511SS, NE63A6511SS/AA, NE63A6711SS, NE63A6711SS/AA, NE63T8751SS, NE63T8751SS/AA, NQ70M7770DS, NQ70M7770DS/AA, NY63T8751SS, NY63T8751SS/AC

CRITICAL SAFETY WARNING: This repair involves working with 240 volts AC electrical power, which can cause serious injury or death. Always turn off the circuit breaker that supplies power to the range before beginning work. Use a multimeter to verify power is off before touching any electrical components. If you are not comfortable working with high-voltage electrical systems, hire a qualified electrician or appliance repair technician. Follow all local electrical codes and regulations.

1. Turn off the circuit breaker that supplies power to the range at the main electrical panel. This is critical for safety when working with 240V electrical systems. Turn off the double-pole 50-amp breaker that controls the range circuit.
2. Verify power is off by attempting to turn on the range. The range should not respond and the display should be blank.
3. Use a multimeter to verify that no voltage is present at the wall outlet. Set the multimeter to measure AC voltage (250V or higher range), and test between the two hot terminals (typically the two outer prongs on a 4-prong outlet). The reading should be 0 volts. If any voltage is detected, do not proceed—verify the circuit breaker is off and the correct breaker has been identified.
4. Unplug the old power cord from the wall outlet (if still connected) by pulling the plug straight out. Do not pull on the cord—grasp the plug body firmly and pull.
5. Pull the range away from the wall to provide access to the rear panel and power cord connection. You may need assistance to move the range safely.
6. Take multiple photos of the power cord connection to the range terminal block before disconnecting. Document the wire colors, terminal positions, and connection method from multiple angles. This is absolutely critical for proper reconnection. Use a camera or smartphone to capture high-quality images.
7. Locate the range terminal block on the rear of the range (typically located near the bottom rear panel, covered by a metal access cover or junction box cover).
8. Remove the terminal block access cover by removing the mounting screws (typically 1-2 screws). Use a Phillips screwdriver or nut driver. Set the cover and screws aside in a safe location.
9. Take additional detailed photos of the terminal block wiring before disconnecting. Note the wire colors and terminal positions: typically, the two hot wires (black and red) connect to the two outer terminals (L1 and L2), the neutral wire (white) connects to the center terminal (N), and the ground wire (green or bare) connects to the ground terminal (G or green screw).
10. Label the wires with masking tape or labels indicating their positions (e.g., "L1-Black", "L2-Red", "N-White", "G-Green") to ensure correct reconnection. This is critical for safety and proper operation.
11. Loosen the terminal screws that secure the power cord wires to the terminal block. Use a Phillips screwdriver or flat-blade screwdriver. Do not remove the screws completely—just loosen them enough to release the wire terminals.
12. Remove the old power cord wires from the terminal block by pulling the wire terminals or bare wire ends out from under the terminal screws.
13. Remove the strain relief clamp or cord grip that secures the power cord to the range frame (if applicable). Loosen the strain relief screws or clamp and slide the power cord out.
14. Carefully remove the old power cord from the range and set it aside.
15. Inspect the old power cord for visible damage such as frayed or exposed wires, burned or corroded terminals, melted insulation, damaged plug, or bent prongs. This confirms the diagnosis and the need for replacement.
16. Inspect the range terminal block for damage, corrosion, or burned terminals. Clean the terminals if necessary using a wire brush or sandpaper. If the terminal block is damaged, it must be replaced before installing the new power cord.

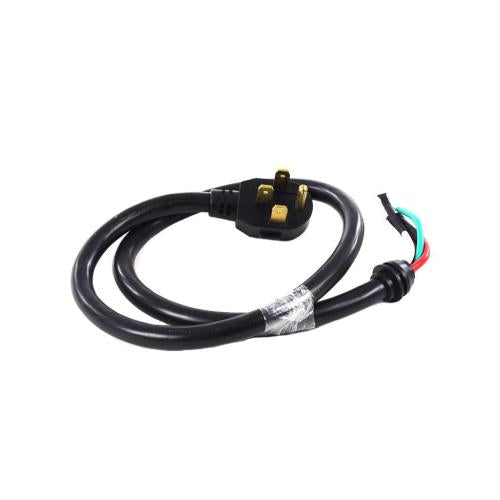

17. Unpack the new DG96-00048A power cord from its packaging. Handle carefully to avoid damaging the wires or plug.
18. Verify the power cord specifications match your requirements: 4-wire configuration (two hot, one neutral, one ground), 50 amp rating, 240V AC rating, NEMA 14-50 plug (4-prong), wire gauge 8-gauge or 10-gauge, length 4-6 feet.
19. Verify your wall outlet configuration matches the power cord plug. The DG96-00048A has a 4-prong NEMA 14-50 plug, which requires a 4-slot wall outlet. If your outlet has only 3 slots (older 3-wire configuration), you will need to either: (a) upgrade the outlet to a 4-wire configuration (requires an electrician), or (b) purchase a 3-wire power cord instead. Important: Do not modify the power cord or outlet to force a mismatch—this is a serious safety hazard and violates electrical codes.
20. Compare the new power cord to the old one to verify the plug configuration, wire colors, terminal types, and overall length match. Ensure you have the correct replacement part.
21. Inspect the new power cord for any damage or defects before installation. The insulation should be intact with no visible damage. The wires should be properly crimped or terminated. The plug prongs should be straight and undamaged.
22. Thread the new power cord through the strain relief opening on the range rear panel (if applicable).
23. Install the strain relief clamp or cord grip to secure the power cord to the range frame. Tighten the strain relief screws or clamp firmly but do not overtighten, which can damage the cord insulation. The strain relief prevents the cord from being pulled out of the terminal block and protects the wire connections from stress.
24. Identify the wire colors on the new power cord: Typically, black and red are the two hot wires (L1 and L2), white is the neutral wire (N), and green or bare copper is the ground wire (G).
25. Connect the wires to the range terminal block according to your photos and wire labels: (a) Connect the black wire to the L1 terminal (typically the left outer terminal); (b) Connect the red wire to the L2 terminal (typically the right outer terminal); (c) Connect the white wire to the N (neutral) terminal (typically the center terminal); (d) Connect the green or bare wire to the G (ground) terminal (typically a green screw on the range frame or terminal block). Critical: Verify the wire connections match your photos and the terminal block labeling. Incorrect connections can cause electrical shock, fire, or equipment damage.
26. Insert each wire terminal or bare wire end under the appropriate terminal screw on the terminal block. Ensure the wire is fully inserted and positioned correctly under the screw.
27. Tighten the terminal screws firmly using a Phillips screwdriver or flat-blade screwdriver. Tighten each screw until the wire is securely held and cannot be pulled out. Do not overtighten, which can strip the screw threads or damage the wire.
28. Verify all wire connections are secure by gently tugging on each wire. The wires should not pull out—they should be firmly secured under the terminal screws.
29. Double-check all wire connections by comparing your installation to your detailed photos and wire labels. Verify each wire is connected to the correct terminal: black to L1, red to L2, white to N, green/bare to G.
30. Verify the neutral wire (white) and ground wire (green/bare) are properly separated and connected to their respective terminals. On 4-wire systems, the neutral and ground must be separate—do not connect them together or to the same terminal. This is a critical safety requirement.
31. Reinstall the terminal block access cover by reversing the removal procedure. Install the mounting screws and tighten firmly.
32. Push the range back toward the wall, leaving enough space to plug in the power cord without bending or stressing the cord.
33. Plug the new power cord into the wall outlet by aligning the plug prongs with the outlet slots and pushing the plug firmly into the outlet. The plug should seat fully with all prongs inserted completely. Do not force the plug—if it doesn't fit easily, verify the plug and outlet configurations match.
34. Verify the plug is fully seated in the outlet and secure.
35. Restore power by turning on the circuit breaker at the main electrical panel.
36. Turn on the range and verify the display lights up and the range responds to controls.
37. Test all range functions including surface elements, oven heating, convection mode, and control panel to verify proper operation.
38. Verify the range does not trip the circuit breaker during operation.
39. Push the range back into position against the wall, ensuring the power cord is not pinched, crushed, or stressed.
40. Verify the power cord has adequate slack and is not stretched tight or bent sharply.

Safety Notes: Always turn off the circuit breaker before working on the power cord to prevent electrical shock from 240V AC power. Use a multimeter to verify power is off before touching any electrical components. Label all wires before disconnecting to ensure correct reconnection. Verify the power cord plug configuration matches the wall outlet configuration—do not force a mismatch. Ensure the neutral wire (white) and ground wire (green/bare) are properly separated on 4-wire systems. Tighten all terminal screws firmly to prevent arcing and overheating. Install the strain relief clamp to protect the wire connections from stress. Follow all local electrical codes and regulations. This repair requires basic electrical skills and careful attention to safety—if you are not comfortable working with high-voltage electrical systems, hire a qualified electrician or appliance repair technician.

1. Always verify power is off using a multimeter before touching any electrical components. Set the multimeter to measure AC voltage (250V or higher range) and test between the two hot terminals at the wall outlet. The reading should be 0 volts. Never assume power is off based on the circuit breaker position alone—always verify with a multimeter. This is critical for preventing electrical shock from 240V AC power, which can be fatal.
2. Label all wires before disconnecting them from the range terminal block. Use masking tape or adhesive labels to mark each wire with its terminal position (e.g., "L1-Black", "L2-Red", "N-White", "G-Green"). Incorrect wire connections will cause the range to malfunction, create a fire hazard, or cause electrical shock. Take detailed photos of the wire connections before disconnecting to serve as a reference during reconnection.
3. Verify your wall outlet configuration matches the power cord plug before purchasing. The DG96-00048A has a 4-prong NEMA 14-50 plug (4-wire configuration) which requires a 4-slot wall outlet. If your outlet has only 3 slots (older 3-wire configuration), you will need to either upgrade the outlet to 4-wire (requires a licensed electrician) or purchase a 3-wire power cord instead. Never modify the plug or outlet to force a mismatch—this is a serious safety violation and fire hazard.
4. On 4-wire systems, the neutral wire (white) and ground wire (green/bare) must be connected to separate terminals. Do not connect the neutral and ground together or to the same terminal. This is a critical safety requirement mandated by the National Electrical Code (NEC) since 1996. The neutral carries return current for 120V circuits, while the ground provides safety protection. Connecting them together defeats the safety ground and creates a shock hazard.
5. Tighten all terminal screws firmly to ensure secure electrical connections. Loose terminal connections cause arcing, overheating, and can lead to fire. After tightening each terminal screw, gently tug on the wire to verify it is secure and cannot be pulled out. Use a screwdriver with the correct size and type to prevent stripping the terminal screws.
6. Install the strain relief clamp to protect the power cord and wire connections from stress. The strain relief prevents the cord from being pulled out of the terminal block if someone trips over the cord or pulls on it accidentally. Tighten the strain relief firmly but do not overtighten, which can damage the cord insulation. Leave adequate slack in the cord between the strain relief and the terminal block to prevent stress on the wire connections.
7. Verify the power cord is rated for 50 amps at 240V AC. Undersized power cords (such as 30-amp cords) will overheat and can cause fire when used with high-power electric ranges. The wire gauge should be 8-gauge or 10-gauge copper wire. Never use an extension cord with an electric range—the range must be plugged directly into a dedicated 240V outlet.
8. Ensure the power cord has adequate length but is not excessively long. The cord should reach from the range terminal block to the wall outlet with some slack, but should not be so long that it creates a tripping hazard or requires coiling. Typical power cord length is 4-6 feet. Do not coil excess cord behind the range, which can cause overheating.
9. Inspect the range terminal block for damage, corrosion, or burned terminals before installing the new power cord. If the terminal block is damaged, it must be replaced before connecting the new power cord. Burned or corroded terminals indicate a previous loose connection or overheating condition. Clean corroded terminals with a wire brush or sandpaper to ensure good electrical contact.
10. After installation, verify the range operates properly and does not trip the circuit breaker. Test all range functions including surface elements, oven heating, and convection mode. If the circuit breaker trips, immediately turn off the breaker and verify all wire connections are correct and secure. A tripping breaker indicates a short circuit, ground fault, or overload condition that must be corrected before using the range.
