Samsung Dryer Drum Belt Maintenance Kit DC97-16782A – OEM & Premium XPart Options Available (Replaces DC93-00634A, 6602-001655)

Samsung 6602-001655 Dryer Drive Belt — Fixes Drum Won't Turn & Squealing

Samsung Dryer Drum Belt Maintenance Kit DC97-16782A – OEM & Premium XPart Options Available (Replaces DC93-00634A, 6602-001655)

Sale price: $149.99
Regular price: $183.14

XPart Verified Replacement | SKU 9665273954593

Style: XPart (Ball Bearings)

XPart (Ball Bearings)

$149.99

XPart (Sleeve Bearings)

$149.99

OEM

$299.99

Product variant with selected options does not exist!

Frequently Bought Together

Dryer Squealing, Thumping, or Drum Not Turning? – Fix Samsung Belt & Roller Failure Fast

A squealing, thumping, or seized drum is one of the most common Samsung dryer failures. In most Samsung and Kenmore (Samsung-built) dryers, this is caused by a worn or broken drive belt, failed drum support rollers, or a seized idler pulley. When these components fail, the drum stops turning, the dryer runs but produces no heat circulation, and continued use accelerates motor wear. ⚡ Replacing the full kit now prevents a secondary motor failure that costs 3–5× more. Part DC97-16782A is the complete OEM maintenance kit — belt, idler pulley assembly, and drum support rollers — that restores full drum rotation and eliminates noise immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

✔ Your dryer is a Samsung or Kenmore (Samsung-manufactured) model
✔ The drum is not turning, or turns with loud squealing, thumping, or grinding
✔ The motor runs (you can hear it) but the drum does not spin
✔ Visual inspection shows a broken, stretched, or frayed drive belt — or worn/flat rollers
✔ ONLY problem is drum drive failure — not a heating or electrical fault

🔧 Common Symptoms

Loud squealing or squeaking during the entire cycle
Thumping or rhythmic banging as drum rotates
Drum not turning at all — motor runs but drum is stationary
Belt visible broken or lying loose inside the drum cabinet
Dryer stops mid-cycle due to drum resistance tripping thermal cutoff
Uneven drum rotation or wobble felt through the door

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing the full belt and roller kit restores normal operation immediately.

📦 Part Details

Part Number: DC97-16782A
Type: Dryer Drum Drive Belt & Roller Maintenance Kit
Replaces: DC93-00634A (idler arm), 6602-001655 (belt), DC97-07523A, DC97-07523B, AP5325135, PS4221885, AP6038887, PS11771601 (no modification required)
Brands: Samsung, Kenmore (Samsung-manufactured)

⚙️ Installation Notes

Skill Level: Moderate — 60–90 min DIY / 45–60 min professional. Unplug the dryer completely before beginning any service. Remove the top panel and front panel to access the drum; lift the drum to release belt tension and slide the old belt off the motor pulley. Replace all rollers and the idler pulley at the same time — never replace only the belt on a noisy dryer. Reinstall belt in the correct Z-wrap pattern around the drum, idler, and motor shaft. Do not overtighten — the idler spring provides correct tension automatically.

💡 Pro Tip

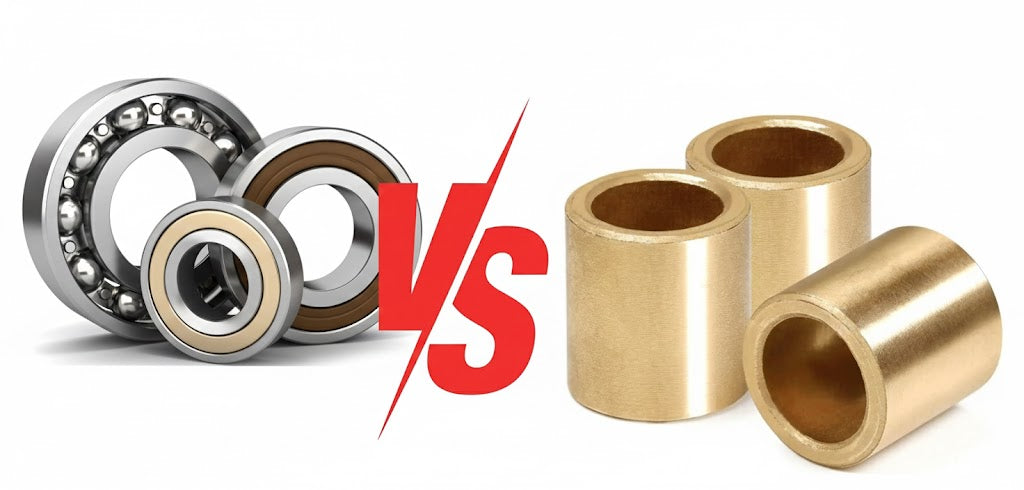

Upgrade to Ball Bearing Rollers While You're In There:
The standard OEM rollers use a sleeve bearing that wears out again within 2–4 years under heavy use. Our XPart variant includes upgraded ball-bearing drum support rollers that last significantly longer and run quieter. If you're already doing the repair, the incremental cost of the upgrade is minimal compared to a second disassembly. Also consider inspecting the drum felt seal (DC97-07509B) while the drum is out — a worn seal causes lint bypass and accelerates future roller wear.

✅Compatibility & Cross Reference

Samsung, Kenmore (Samsung-made), replaces DC97-16782A (support rollers), DC93-00634A (idler arm), 6602-001655 (belt)

DC97-16782A, DC97-07523A, DC97-07523B, DC93-00634A, 6602-001655, AP5325135, PS4221885, AP6038887, PS11771601

DV10K6500EV, DV203AES, DV203AEW, DV203AGS, DV203AGW, DV206AES, DV206AGS, DV206LEW, DV209AEW, DV209AGW, DV210AES, DV210AEW, DV210AGW, DV218AEB, DV218AES, DV218AEW, DV218AGB, DV218AGW, DV219AEB, DV219AEW, DV219AGB, DV219AGW, DV220AEW, DV220AGW, DV221AEG, DV221AES, DV229AEG, DV231AEW, DV231AGW, DV2C6BEW, DV2C6BGW, DV306BEW, DV306LEW, DV306LGW, DV316BEC, DV316BEW, DV316BGC, DV316BGW, DV316HEC, DV316LES, DV316LEW, DV316LGS, DV316LGW, DV317AEG, DV317AES, DV317AEW, DV317AGG, DV317AGS, DV317AGW, DV328AEG, DV328AER, DV328AEW, DV328AGG, DV328AGR, DV328AGW, DV330AEB, DV330AEW, DV330AGB, DV330AGW, DV331AER, DV331AEW, DV331AGR, DV331AGW, DV337AEG, DV337AEL, DV337AER, DV337AEW, DV337AGG, DV337AGW, DV338AEB, DV338AEW, DV338AGB, DV338AGW, DV339AEG, DV339AEL, DV339AER, DV339AES, DV339AEW, DV339AGW, DV340AEG, DV340AER, DV350AEG, DV350AEP, DV350AER, DV350AEW, DV350AGP, DV350AGR, DV350AGW, DV361EWBEWR, DV361GWBEWR, DV363EWBEUF, DV363GWBEUF, DV365ETBGSF, DV365ETBGWR, DV365GTBGSF, DV365GTBGWR, DV36J4000EW, DV36J4000GW, DV393ETPARA, DV393ETPAWR, DV393GTPARA, DV393GTPAWR, DV395ETPARA, DV395ETPASU, DV395ETPAWR, DV395GTPARA, DV395GTPASU, DV395GTPAWR, DV398ETPAWR, DV398GTPAWR, DV3C6BEW, DV3C6BGW, DV400EWHDWR, DV400GWHDWR, DV405ETPAGR, DV405ETPASU, DV405ETPAWR, DV405GTPASU, DV405GTPAWR, DV407AEW, DV407AGW, DV409AER, DV409AEW, DV409AGR, DV409AGW, DV409SEL, DV40J3000EW, DV40J3000GW, DV410AER, DV410AEW, DV410AGR, DV410AGW, DV419AES, DV419AEU, DV419AEW, DV419AGU, DV419AGW, DV422EWHDWR, DV422GWHDWR, DV428AEL, DV428AEW, DV42H5000EW, DV42H5000GW, DV42H5200EF, DV42H5200EP, DV42H5200EW, DV42H5200GF, DV42H5200GP, DV42H5200GW, DV42H5400EF, DV42H5400EW, DV42H5400GF, DV42H5400GW, DV42H5600EF, DV42H5600EG, DV42H5600EP, DV42H5600EW, DV42H5600GG, DV42H5600GP, DV42H5600GW, DV431AEP, DV431AEW, DV431AGP, DV431AGW, DV431ASP, DV433ETGJWR, DV433GTGJWR, DV435ETGJRA, DV435ETGJWR, DV435GTGJRA, DV435GTGJWR, DV438AEL, DV438AER, DV438AGR, DV448AEE, DV448AEP, DV448AEW, DV448AGE, DV448AGP, DV448AGW, DV455EVGSGR, DV455EVGSWR, DV455GVGSGR, DV455GVGSWR, DV456ETHDSU, DV456EWHDSU, DV456EWHDWR, DV456GTHDSU, DV456GWHDSU, DV456GWHDWR, DV457E1GSGR, DV457EVGSGR, DV457EVGSWR, DV457GVGSGR, DV457GVGSWR, DV45H6300EG, DV45H6300EP, DV45H6300EW, DV45H6300GG, DV45H6300GW, DV45H7000EP, DV45H7000EW, DV45H7000GP, DV45H7000GW, DV45H7200EW, DV45H7200GW, DV45H7400EP, DV45K6200EW, DV45K6200EZ, DV45K6200GW, DV45K6200GZ, DV45K6500EV, DV45K6500EW, DV45K6500GV, DV45K6500GW, DV45K7100EW, DV45K7600EW, DV45K7600GW, DV476ETHASU, DV476ETHAWR, DV476GTHASU, DV476GTHAWR, DV484ETHASU, DV484ETHAWR, DV484GTHASU, DV484GTHAWR, DV48H7400EP, DV48H7400EW, DV48H7400GP, DV48H7400GW, DV48J7700EW, DV48J7700GW, DV48J7770EP, DV48J7770EW, DV48J7770GP, DV48J7770GW, DV501AEW, DV501AGW, DV50F9A6EVW, DV50F9A6GVW, DV50F9A7EVP, DV50F9A7EVW, DV50F9A7GVP, DV50F9A7GVW, DV50F9A8EVP, DV50F9A8EVW, DV50F9A8GVP, DV50F9A8GVW, DV50K7500EV, DV50K7500EW, DV50K7500GV, DV50K7500GW, DV50K8600EP, DV50K8600EV, DV50K8600EW, DV50K8600GV, DV50K8600GW, DV511AER, DV511AEW, DV511AGR, DV511AGW, DV520AEP, DV520AEW, DV520AGP, DV520AGW, DV52J8060EW, DV52J8060GW, DV52J8700EP, DV52J8700EW, DV52J8700GP, DV52J8700GW, DV5451AEP, DV5451AEW, DV5451AGW, DV5471AEP, DV5471AEW, DV5471AGP, DV5471AGW, DVE45M5500P, DVE45M5500W, DVE45M5500Z, DVE45N5300F, DVE45N5300V, DVE45N5300W, DVE45R6100C, DVE45R6100P, DVE45R6100V, DVE45R6100W, DVE45R6300C, DVE45R6300V, DVE45R6300W, DVE45T3200W, DVE45T3400P, DVE45T3400V, DVE45T3400W, DVE45T6000V, DVE45T6000W, DVE45T6020W, DVE45T6200W, DVE50M7450P, DVE50M7450W, DVE50R5200W, DVE50R5400V, DVE50R5400W, DVE50R8500V, DVE50R8500W, DVE50T5300C, DVE52M7750P, DVE52M7750V, DVE52M7750W, DVE52M8650V, DVE52M8650W, DVE54M8750V, DVE54M8750W, DVE54R7200V, DVE54R7200W, DVE54R7600C, DVE54R7600V, DVE54R7600W, DVE55M9600V, DVE55M9600W, DVE60M9900V, DVE60M9900W, DVG45M5500P, DVG45M5500W, DVG45M5500Z, DVG45N5300F, DVG45N5300V, DVG45N5300W, DVG45R6100C, DVG45R6100P, DVG45R6100V, DVG45R6100W, DVG45R6300C, DVG45R6300V, DVG45R6300W, DVG45T3200W, DVG45T3400P, DVG45T3400V, DVG45T3400W, DVG45T6000V, DVG45T6000W, DVG45T6020W, DVG45T6200W, DVG50M7450P, DVG50M7450W, DVG50R5200W, DVG50R5400V, DVG50R5400W, DVG50R8500V, DVG50R8500W, DVG50T5300C, DVG52M7750P, DVG52M7750V, DVG52M7750W, DVG52M8650V, DVG52M8650W, DVG54M8750V, DVG54M8750W, DVG54R7200V, DVG54R7200W, DVG54R7600C, DVG54R7600V, DVG54R7600W, DVG55M9600V, DVG55M9600W, DVG60M9900V, DVG60M9900W, YIED7200TW, YNED7200TW

Dryer Repair Kit, Drum Support Roller Kit, Idler Pulley Assembly, Drive Belt Kit, Maintenance Kit

Samsung, Kenmore (Samsung-made), replaces DC97-16782A (support rollers), DC93-00634A (idler arm), 6602-001655 (belt), DC97-07523A, DC97-07523B, AP5325135, PS4221885, AP6038887, PS11771601

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
