Refrigerator Compressor Not Starting? Start Device Kit 7006962 – Fix Clicking or Humming Fast

If your refrigerator compressor clicks, hums, and shuts off without starting, the start device kit is the most common — and least expensive — fix. In most BSH-built refrigerators (Thermador, Gaggenau), this is caused by a failed PTC start relay or overload protector. When it fails, the compressor attempts to start, draws excess current, and immediately trips the overload — leaving the refrigerator warm and clicking every few minutes. ⚡ Common failure point in BSH-built bottom-freezer and French door refrigerators. Part 7006962 is the genuine OEM start device kit that restores reliable compressor starting and full cooling performance.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ The refrigerator powers on — interior lights work and the display is active
• ✔ You can hear a click or hum every few minutes as the compressor tries to start
• ✔ Power supply and outlet voltage are confirmed OK
• ✔ ONLY problem is the compressor not running and the refrigerator not cooling

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Refrigerator not cooling — compressor clicks or hums every few minutes then stops
• Compressor body is hot to the touch but never runs for more than a few seconds
• Refrigerator runs continuously with fans but no cooling
• Rattling sound from the back lower panel near the compressor

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this start device kit restores normal compressor operation immediately.

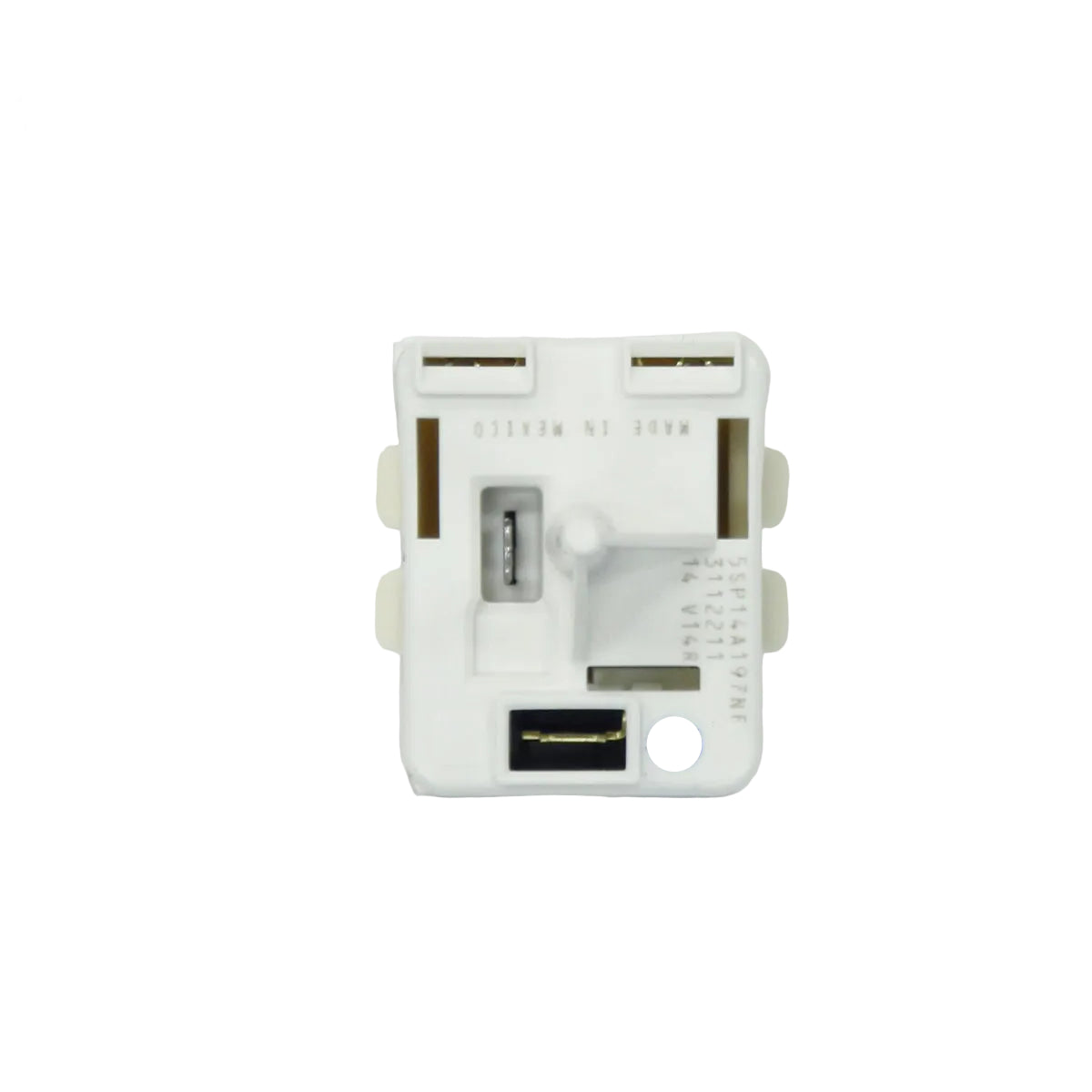

📦 Part Details

• Part Number: 7006962
• Type: Refrigerator Compressor Start Device Kit — PTC Start Relay + Thermal Overload Protector
• Brands: Thermador, Gaggenau (BSH Group)

⚙️ Installation

Skill Level: EASY — 15–20 minutes. Disconnect power before servicing. Remove the lower rear access panel to expose the compressor, unplug the start relay and overload protector from the compressor terminals, snap the new start device kit into place, reinstall the panel, and restore power. The compressor should start within the first cooling cycle.

✓ Compatible Models

Confirmed compatible with select Thermador and Gaggenau bottom-freezer and French door refrigerator models. Contact us to verify your model number before ordering.
