Refrigerator Running Warm or Compressor Overheating? Condenser Fan Motor SM5411 – Fix Condenser Airflow Failures Fast

If your refrigerator or freezer is running warm, the compressor is overheating, or the condenser fan is not spinning — a failed condenser fan motor is the most common cause. In most refrigerators and commercial cooling units, the condenser fan motor draws air across the condenser coils to dissipate heat from the refrigerant. When it fails, heat builds up around the compressor, the system works harder to maintain temperature, and the compressor can overheat and shut down — or fail permanently. ⚡ Common failure point in refrigerators, freezers, and light commercial refrigeration units with exposed condenser coils. Part SM5411 is a direct-fit universal replacement motor that restores proper condenser airflow and protects the compressor from heat damage.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Refrigerator/freezer powers on and the compressor runs
• ✔ Evaporator fan (inside the freezer) is running normally
• ✔ Condenser coils are clean — not blocked by dust or debris
• ✔ ONLY problem is the condenser fan not spinning, unit running warm, or compressor cycling off on thermal overload

Not sure? Send us your model number — we’ll confirm compatibility before you order.

🔧 Common Symptoms

• Refrigerator or freezer not maintaining set temperature
• Condenser fan blade not spinning when compressor is running
• Compressor running hot or cycling off on thermal overload
• Loud humming or buzzing from the condenser area with no blade rotation
• Unit runs constantly but never reaches temperature
• Compressor shuts off after short run time due to overheating

✔ If these symptoms match, the condenser fan motor is the most likely failed component in the cooling system.

✔ In most cases, replacing this condenser fan motor restores proper airflow and normal temperature control immediately.

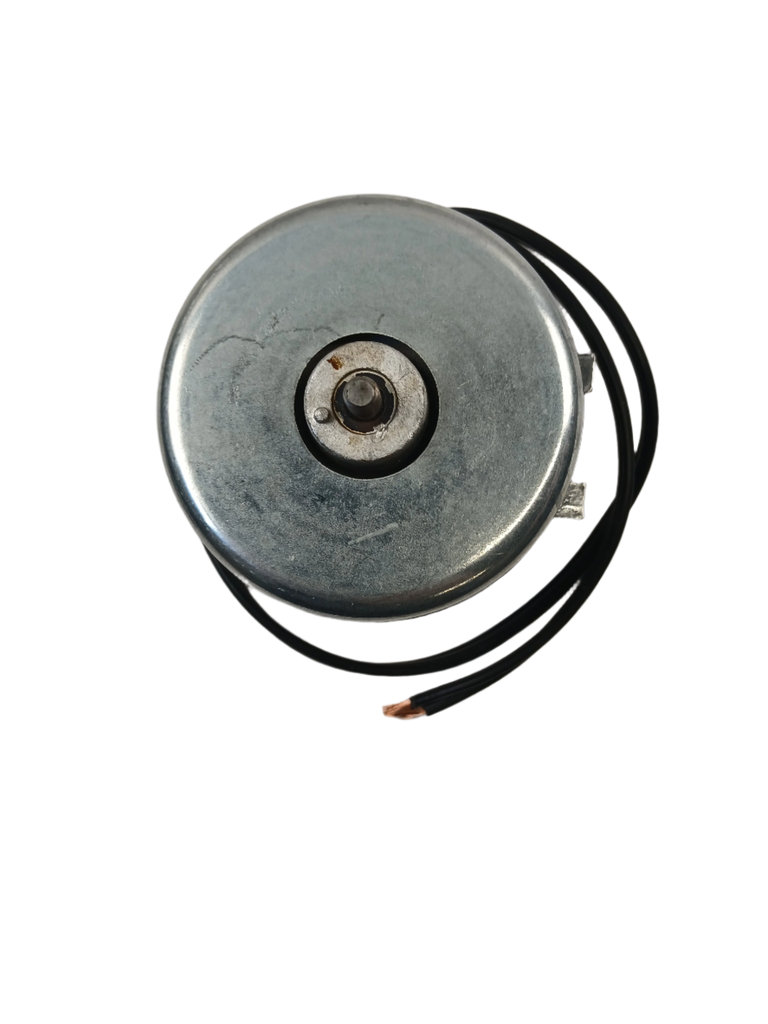

📦 Part Details

• Part Number: SM5411
• Type: Universal condenser fan motor — 9W, 120V, 50/60Hz, 1500 RPM, CWOSE (clockwise open shaft end) rotation, 1/4" shaft, dual leads for easy wiring
• Replaces: Cross-references multiple OEM condenser fan motor numbers — contact us to confirm your original part number
• Brands: GE, Whirlpool, and other brands using a 9W 120V CWOSE condenser fan motor with 1/4" shaft

⚙️ Installation

Skill Level: MODERATE — 20–40 minutes. Disconnect power before servicing. Access the condenser fan motor by removing the rear access panel or bottom grille depending on your unit. Disconnect the wiring leads, remove the fan blade and mounting hardware from the old motor, and transfer them to the new motor. Reinstall in reverse order and verify the blade spins freely without contact before restoring power. Run a 10-minute test to confirm the fan runs and the compressor area cools normally.

✓ Compatible Models

This is a universal condenser fan motor compatible with a wide range of GE, Whirlpool, and other brand refrigerators and freezers requiring a 9W, 120V, CWOSE, 1/4" shaft condenser motor. Contact us to verify your model number before ordering.
