Refrigerator Not Cooling? Condenser Fan Assembly G5096494 – Fix Overheating Fast
A failed condenser fan assembly is one of the most common causes of refrigerator overheating and cooling loss. In most refrigerators, the condenser fan draws air across the condenser coils to dissipate compressor heat. When it fails, heat builds up rapidly — the compressor cycles off on thermal overload, the refrigerator runs warm, and food spoils. ⚡ Common failure point in built-in and freestanding refrigerators with bottom-mount or rear-access condensers. Part G5096494 is the genuine OEM replacement that restores full condenser airflow and protects the compressor from heat damage.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Refrigerator powers on and compressor runs (or attempts to run)
- ✔ Evaporator fan and interior lights work normally
- ✔ Condenser coils are not heavily blocked with debris
- ✔ ONLY problem is the condenser fan not spinning, running warm, or compressor overheating
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Refrigerator not cooling or running significantly warmer than set temperature
- Compressor running hot, cycling off, or shutting down on thermal overload
- Loud buzzing, rattling, or grinding noise from the rear or bottom of the unit
- Condenser fan blade not spinning or spinning intermittently
- Frost buildup or temperature swings in fresh food or freezer compartments
- Refrigerator shuts off unexpectedly and restarts after cooling down
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this condenser fan assembly restores normal operation immediately.

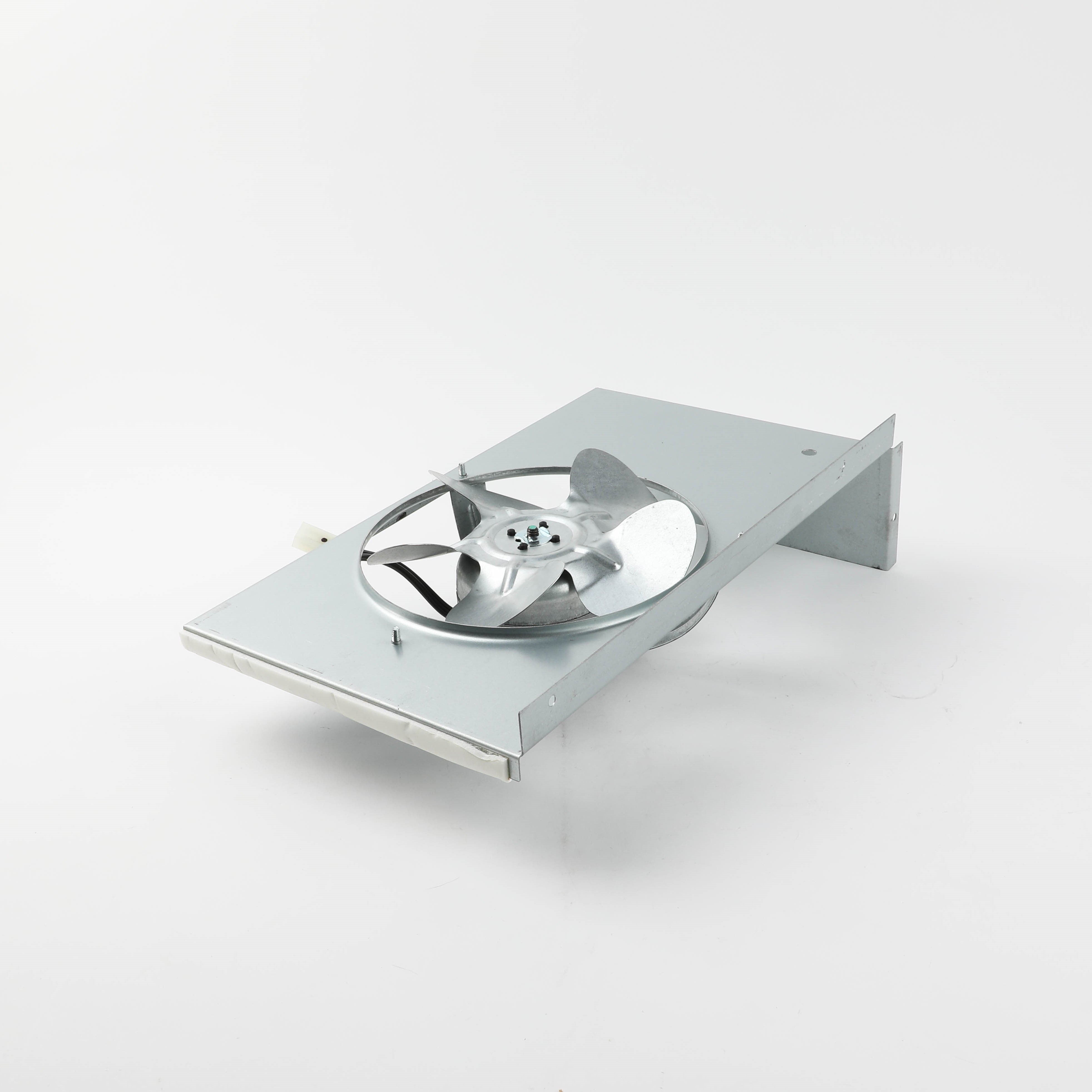

📦 Part Details
- Part Number: G5096494
- Alternate Part Number: VKG5096494
- Type: Condenser Fan Motor & Blade Assembly — OEM
- Replaces: VKG5096494
- Appliance Type: Refrigerator
- Condition: Genuine OEM — New
While the rear panel is off, inspect and clean the condenser coils. Heavily fouled coils are the #1 cause of premature condenser fan failure — a $10 coil brush now can prevent another $700+ repair later. Also check the compressor start relay: if the compressor struggled before failure, the relay may be weakened and worth replacing at the same time.
⚙️ Installation
Skill Level: Moderate — 30 to 60 minutes. Disconnect power before servicing. Remove the rear access or lower back panel to reach the condenser fan assembly. Disconnect the wiring harness, remove the mounting screws, and transfer the fan blade to the new motor if not pre-installed. Reinstall in reverse order, confirm the blade spins freely, restore power, and verify the fan runs when the compressor is active.
✓ Compatible Models
Compatible model numbers to be confirmed — contact us with your model number before ordering to verify fitment.
💡 Pro Tip
While the condenser fan is out, vacuum the condenser coils thoroughly. Dust-clogged coils are one of the leading causes of premature fan motor failure — cleaning them now extends the life of your new assembly, reduces compressor strain, and improves overall energy efficiency. Takes 5 minutes and can add years to the repair.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
