AUTOMOTIVE PART

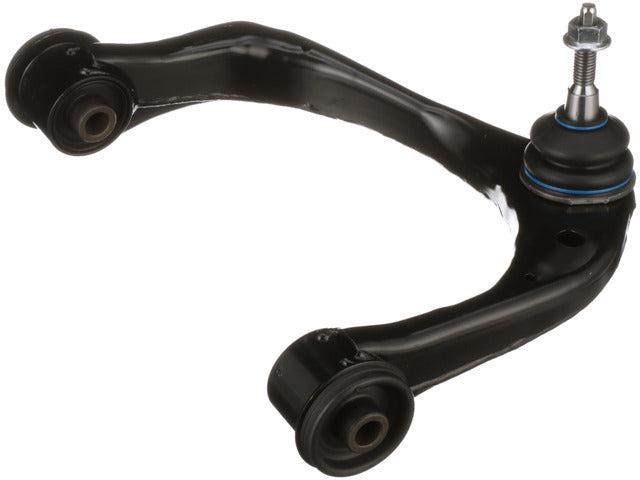

Delphi Control Arm TC8133
Control Arm
Part TC8133DelphiControl Arm
Match your exact vehicle configuration to the verified applications below.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Is This the Right Part?
Manufacturer Part NumberTC8133
ManufacturerDelphi
Part TypeControl Arm
Part Details
Part Specifications
| Adjustable | No |
|---|---|
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Bushing Color | Black |
| Bushing Material | Rubber |
| Bushing(s) Included | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including Car |
| Control Arm Color | Black |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Control Arm Maximum Length | 192.50 MM |
| Control Arm Maximum Width | 348.50 MM |
| Dust Boot Included | Yes |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Grade Type | Premium |
| Greaseable | No |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
Verified Vehicle Fitment
Make: Ford, Lincoln
Model: 3 verified models — see exact combinations below.
Years: 2015–2021 — varies by model and configuration.
Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.
View vehicle applications (3 configuration groups)
| Years | Make | Model | Position | Engine / transmission / notes |
|---|---|---|---|---|
| 2018–2021 | Ford | Expedition | Front Left Upper | Standard Design, W/ BALL JOINT ASSEMBLY |
| 2015–2020 | Ford | F-150 | Front Left Upper | Standard Design, Except Raptor, W/ BALL JOINT ASSEMBLY |
| 2018–2021 | Lincoln | Navigator | Front Left Upper | Standard Design, W/ BALL JOINT ASSEMBLY |
Source: supplier-verified applications for Delphi TC8133. A vehicle not listed is not confirmed compatible.
