AUTOMOTIVE PART

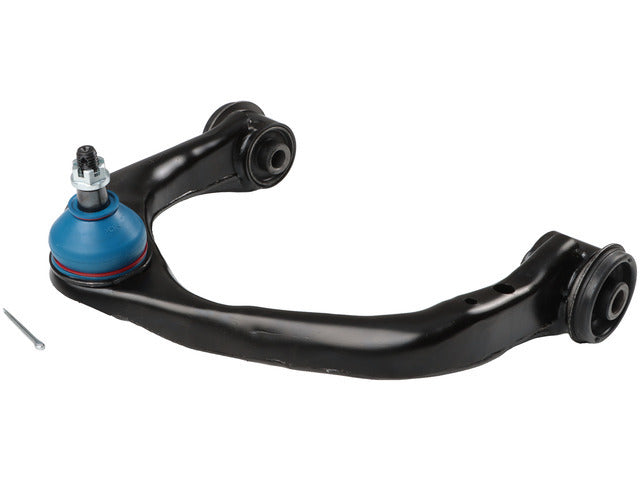

Delphi Control Arm TC8133PX
Control Arm
Part TC8133PXDelphiControl Arm
Match your exact vehicle configuration to the verified applications below.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Confirm the year, make, model, engine, drivetrain and required position before ordering.
Is This the Right Part?
Manufacturer Part NumberTC8133PX
ManufacturerDelphi
Part TypeControl Arm
Part Details
Part Specifications
| Adjustable | No |
|---|---|
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Length | 0.866 IN |
| Ball Joint Stud Type | Threaded |
| Bushing Color | Black |
| Bushing Inside Diameter | 0.559 IN |
| Bushing Length | 2440 IN |
| Bushing Material | Rubber |
| Bushing(s) Included | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including Car |
| Castle Nut Included | Yes |
| Control Arm Color | Black |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Control Arm Maximum Length | 13.720 IN |
| Control Arm Maximum Width | 10019 IN |
| Cotter Pin Included | Yes |
| Dust Boot Included | Yes |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Finish | Painted |
| Grade Type | Improved Design |
| Grease Fitting Included | Yes |
| Greaseable | Yes |
| Length | 13.720 IN |
| Mounting Hardware Included | Yes |
| Mounting Hole Diameter | 0.559 IN |
| Mounting Hole Quantity | 2 |
| Pre-Greased | Yes |
Verified Vehicle Fitment
Make: Ford, Lincoln
Model: 3 verified models — see exact combinations below.
Years: 2015–2021 — varies by model and configuration.
Check before ordering: Match the year, make, model, position, and every engine, transmission or other restriction in the same row. Listed years do not apply to every model.
View vehicle applications (3 configuration groups)
| Years | Make | Model | Position | Engine / transmission / notes |
|---|---|---|---|---|
| 2018–2021 | Ford | Expedition | Front Left Upper | Greasable, Improved boot design with grease relief valve, W/ BALL JOINT ASSEMBLY |
| 2015–2020 | Ford | F-150 | Front Left Upper | Greasable, Improved boot design with grease relief valve, Except Raptor, W/ BALL JOINT ASSEMBLY |
| 2018–2021 | Lincoln | Navigator | Front Left Upper | Greasable, Improved boot design with grease relief valve, W/ BALL JOINT ASSEMBLY |
Source: supplier-verified applications for Delphi TC8133PX. A vehicle not listed is not confirmed compatible.
