Washer Status Lights Dead or Missing? Light Indicator W10135690 – Fix Panel Display Failures Fast

A failed light indicator is the cause when your Whirlpool washer’s control panel shows no status lights, missing cycle indicators, or a completely dark display despite the machine running normally. In most Whirlpool-built washers, the light indicator board illuminates cycle status, option selections, and error codes on the control panel. When it fails due to electrical stress, moisture, or age, the panel goes dark or shows partial lighting while the washer continues to operate. ⚡ Common failure point in Whirlpool-built washers with LED control panels. Part W10135690 is the genuine OEM replacement that restores full panel display immediately — no modification required.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Washer powers on and runs cycles normally
• ✔ Water fills, agitates, and drains correctly
• ✔ Control panel responds to button presses
• ✔ ONLY problem is status lights are dead, dim, or partially missing on the display

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

• Control panel completely dark — no status lights visible
• Some cycle indicator lights missing while others work
• Display lights dim or flickering during operation
• Washer runs normally but no visual feedback on panel
• Specific option or cycle lights not illuminating
• Error codes not displaying despite fault conditions

✔ If these symptoms match and the washer otherwise operates normally, this is the most likely failed component.

✔ In most cases, replacing this light indicator restores full panel display immediately.

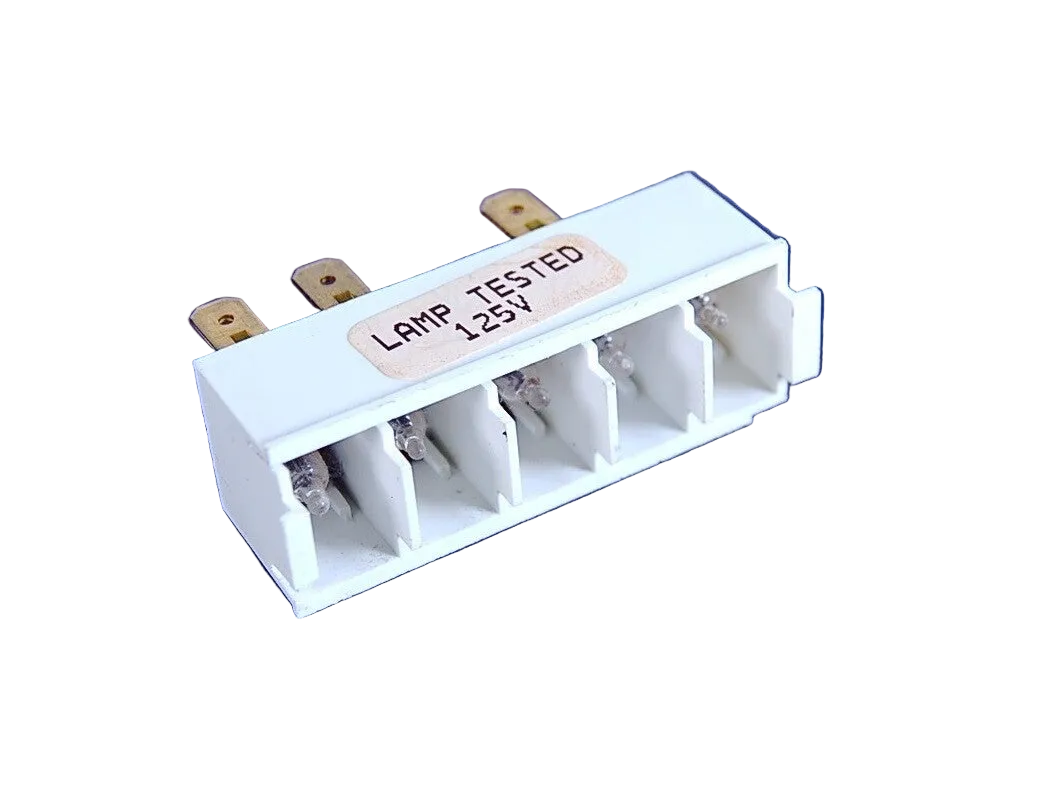

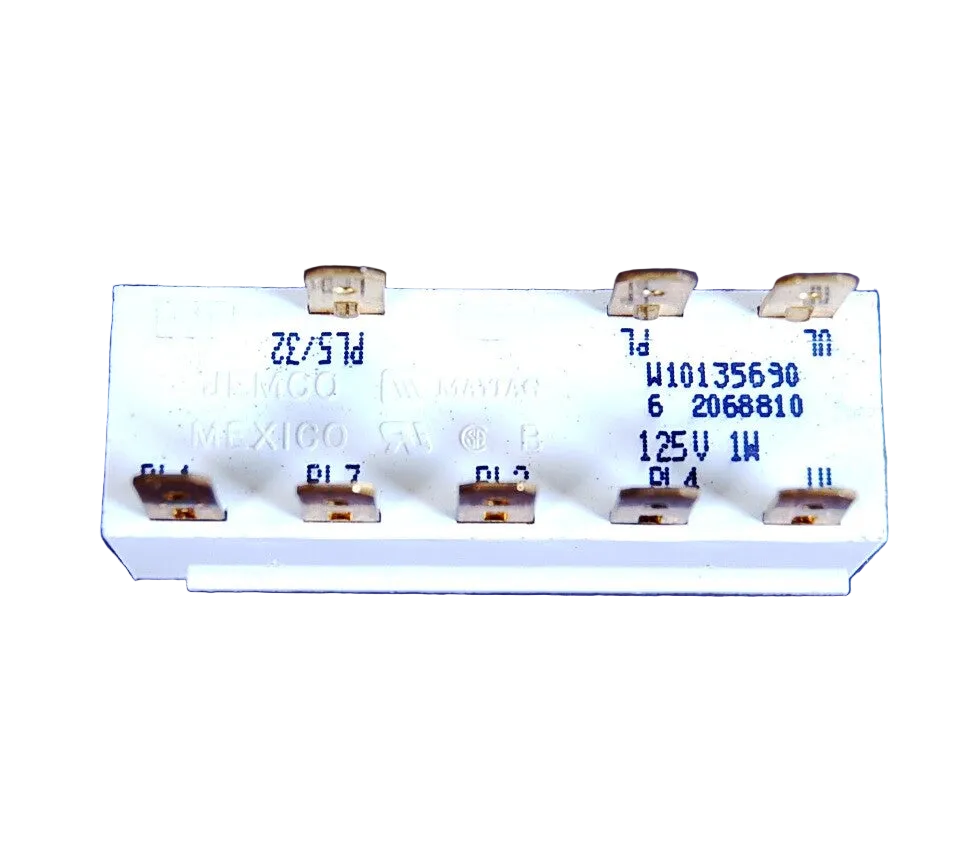

📦 Part Details

• Part Number: W10135690
• Type: Washer Control Panel Light Indicator (status indicator lamp/LED assembly)
• Brands: Whirlpool, Kenmore, Maytag
• Options: OEM (factory original), XPart (premium aftermarket), Used (tested pull)

⚙️ Installation

Skill Level: EASY — 15–30 minutes. Disconnect power before servicing. The light indicator is accessed by removing the control panel (typically 2–4 screws at the rear or underside of the panel). Disconnect the wiring harness from the old indicator, snap or screw the new indicator into position, reconnect the harness, and reassemble the panel. Restore power and verify all status lights illuminate correctly.

✓ Compatible Models

Confirmed compatible with select Whirlpool, Kenmore, and Maytag washer models. Contact us to verify your model number before ordering.
