Whirlpool, Maytag, Kenmore, and Amana

11027086600, 11028103310, 7MMVWB850WL0, MTW6300TQ1, MVWB300WQ0, MVWB300WQ1, MVWB300WQ2, MVWB400VQ0, MVWB450WQ0, MVWB450WQ1, MVWB450WQ2, MVWB455YQ0, MVWB700VQ0, MVWB750WB0, MVWB750WB1, MVWB750WB2, MVWB750WL0, MVWB750WL1, MVWB750WL2, MVWB750WQ0, MVWB750WQ1, MVWB750WQ2, MVWB750WR0, MVWB750WR1, MVWB750WR2, MVWB755YL0, MVWB755YQ0, MVWB755YR0, MVWB800VB0, MVWB800VQ0, MVWB800VU0, MVWB850WB0, MVWB850WB1, MVWB850WB2, MVWB850WL0, MVWB850WL1, MVWB850WL2, MVWB850WQ0, MVWB850WQ1, MVWB850WQ2, MVWB850WR0, MVWB850WR1, MVWB850WR2, WTW6800WE1, WTW6800WU1

1. Disconnect power – Unplug the washer or turn off the breaker.
2. Turn off water supply – Close both hot and cold water valves.
3. Disconnect hoses – Remove fill hoses and drain hose from the washer.
4. Remove the top panel – Unscrew or release clips securing the top panel and lift off.
5. Remove the control panel – Disconnect wire harnesses and set the control panel aside.
6. Remove the door boot clamp – Use a flathead screwdriver to release the outer clamp securing the door gasket.
7. Peel back the door gasket – Tuck the gasket inside the tub opening.
8. Remove the front panel – Unscrew the screws and disconnect the door latch wire harness; remove the panel.
9. Support the tub – Place a block of wood under the tub to support it.
10. Remove the counterweight – Unscrew and remove the concrete counterweight from the tub (heavy — get help if needed).
11. Disconnect tub springs and shocks – Unhook the suspension springs and disconnect shock absorbers.
12. Remove the motor and drive assembly – Disconnect wires and remove the motor from the rear of the tub.
13. Remove the tub assembly – Carefully lift the entire outer tub out of the washer cabinet.
14. Separate the tub halves – Remove the bolts securing the front and rear tub halves; separate them to access the drum and bearings.
15. Remove the drum – Pull the inner drum (with shaft) out of the rear tub half.

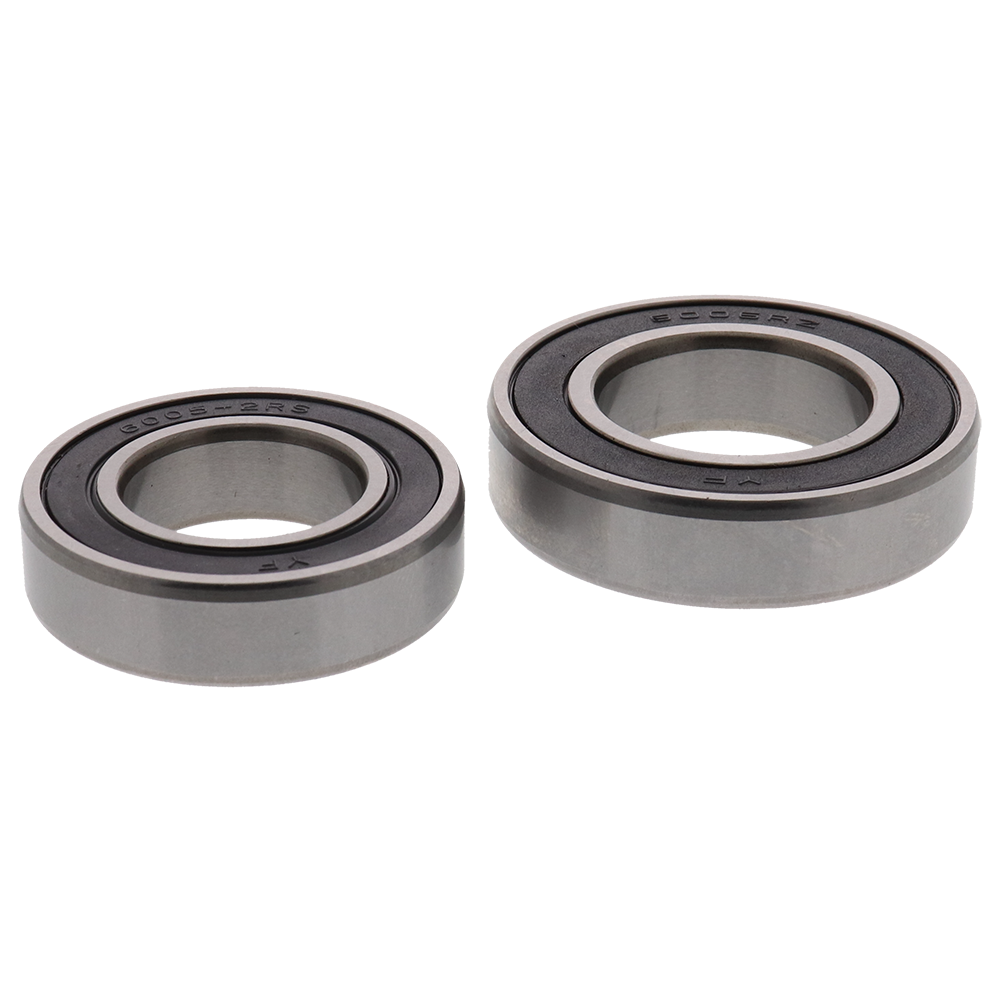

16. Remove old bearings – Use a bearing puller or hammer and punch to remove the old inner and outer bearings from the rear tub.
17. Remove old tub seal – Pry out the old seal from the rear tub.
18. Clean the bearing seats – Remove any rust, debris, or old sealant from the bearing housings.
19. Install new outer bearing – Press or tap the new outer bearing into the rear tub (ensure it seats fully and evenly).
20. Install new inner bearing – Press or tap the new inner bearing into place.
21. Install new tub seal – Apply a thin layer of seal lubricant and press the new seal into the rear tub.
22. Reinstall the drum – Insert the drum shaft through the new seal and bearings.
23. Reassemble tub halves – Bolt the front and rear tub halves back together (use new sealant if provided).
24. Reinstall tub assembly – Lower the tub back into the washer cabinet.
25. Reconnect motor, shocks, springs, and counterweight – Reverse the disassembly steps.
26. Reinstall front panel, door gasket, control panel, and top panel – Reassemble in reverse order.
27. Reconnect hoses, water, and power – Restore all connections.
28. Run a test cycle – Run a spin cycle to verify quiet operation and no leaks.

This is an advanced repair — if you're not comfortable disassembling the entire tub assembly, consider hiring a professional. Before starting, watch a model-specific video tutorial to understand the full process. When removing bearings, use a proper bearing puller or press to avoid damaging the tub housing. Always replace BOTH bearings and the seal together — if one bearing is bad, the other is likely worn too, and a new seal prevents future water intrusion. Apply the included seal lubricant to ensure a watertight fit. After reassembly, check for leaks during the first wash cycle before pushing the washer back into position.
