Whirlpool Washing Machine Tub Seal and Bearing Kit W10435302

OEM outer-tub bearing, drive-shaft, and tub-seal repair kit for compatible top-load washers.

Is This the Right Part?

Common Symptoms

• Loud roaring or grinding noise during spin
• Water leaking from beneath the wash tub
• Worn or failed tub bearings
• Leaking tub seal

Check Before Replacing

• With power disconnected, inspect for water leaking from the bottom of the tub.
• During operation, note whether abnormal roaring or grinding occurs during spin.
• Confirm the washer model number before ordering; fit varies by model.

Pro Tip

Part Details

Key Features

• Includes drive shaft
• Includes upper and lower bearings
• Includes tub seal
• Includes bottom-bearing washer
• Includes shaft nut
• Includes spacer tube

Installation Notes

• Disconnect electrical power before servicing.

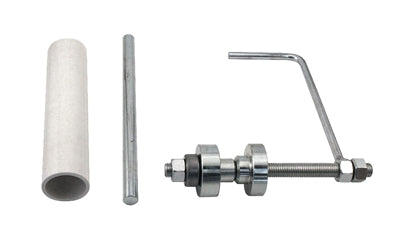

• A specialized bearing/seal press tool is required or may be needed for installation.
• Replace all parts and panels before operating the washer.
• This is a difficult repair requiring substantial disassembly.

Verified Compatible Models

11027086600, 11028103310, 7MMVWB850WL0, MTW6300TQ1, MVWB300WQ0, MVWB300WQ1, MVWB300WQ2, MVWB400VQ0, MVWB450WQ0, MVWB450WQ1, MVWB450WQ2, MVWB455YQ0, MVWB700VQ0, MVWB750WB0, MVWB750WB1, MVWB750WB2, MVWB750WL0, MVWB750WL1, MVWB750WL2, MVWB750WQ0, MVWB750WQ1, MVWB750WQ2, MVWB750WR0, MVWB750WR1, MVWB750WR2, MVWB755YL0, MVWB755YQ0, MVWB755YR0, MVWB800VB0, MVWB800VQ0, MVWB800VU0, MVWB850WB0, MVWB850WB1, MVWB850WB2, MVWB850WL0, MVWB850WL1, MVWB850WL2, MVWB850WQ0, MVWB850WQ1, MVWB850WQ2, MVWB850WR0, MVWB850WR1, MVWB850WR2, WTW6800WE1, WTW6800WU1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
